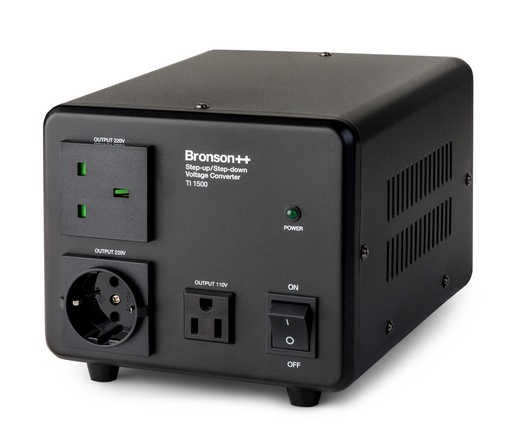

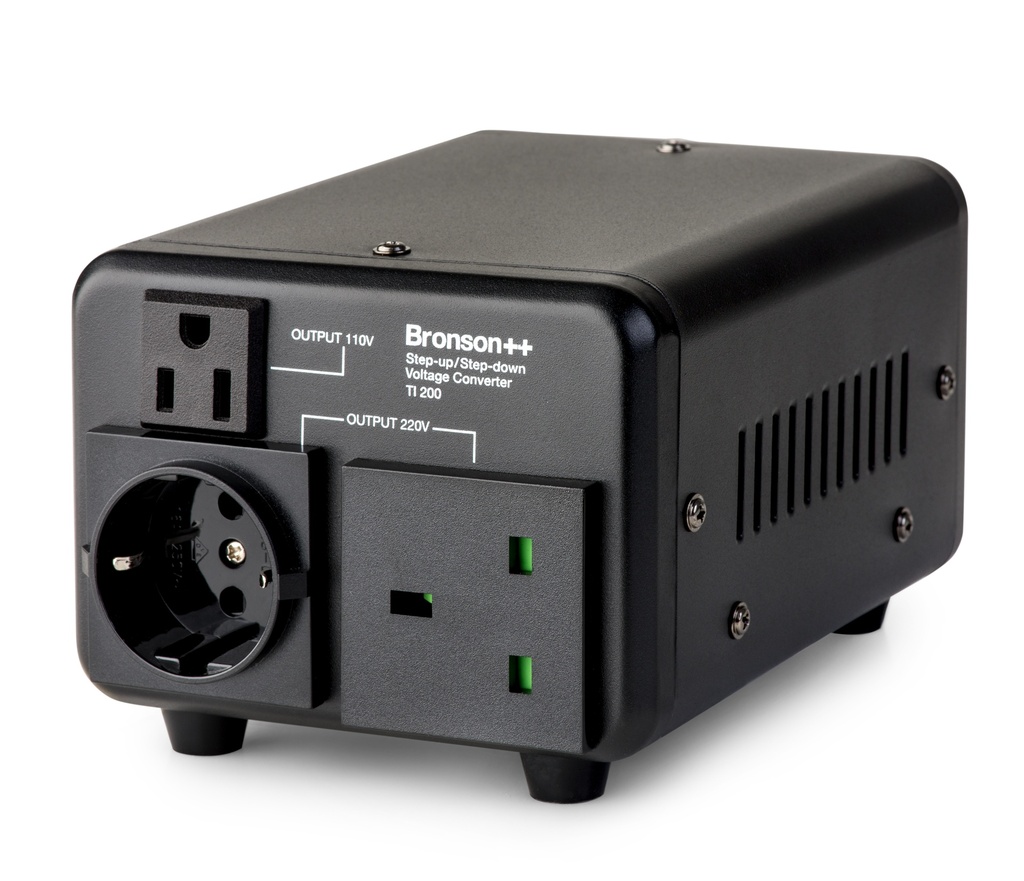

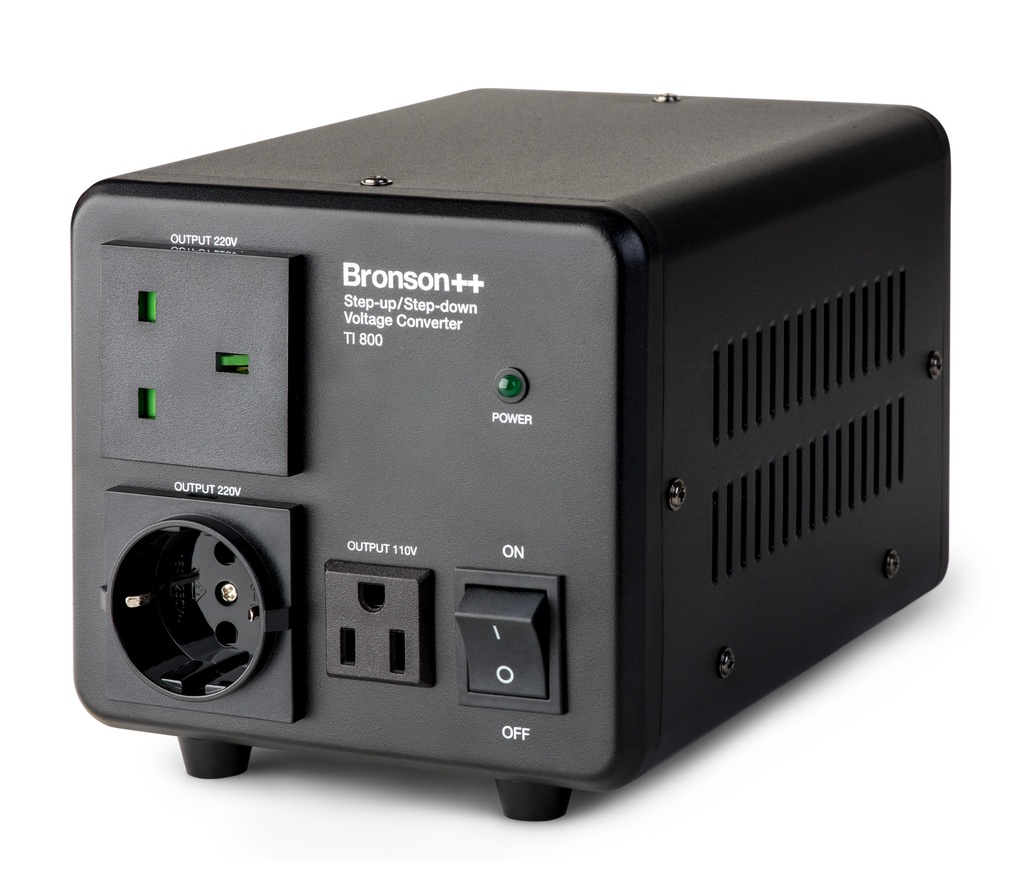

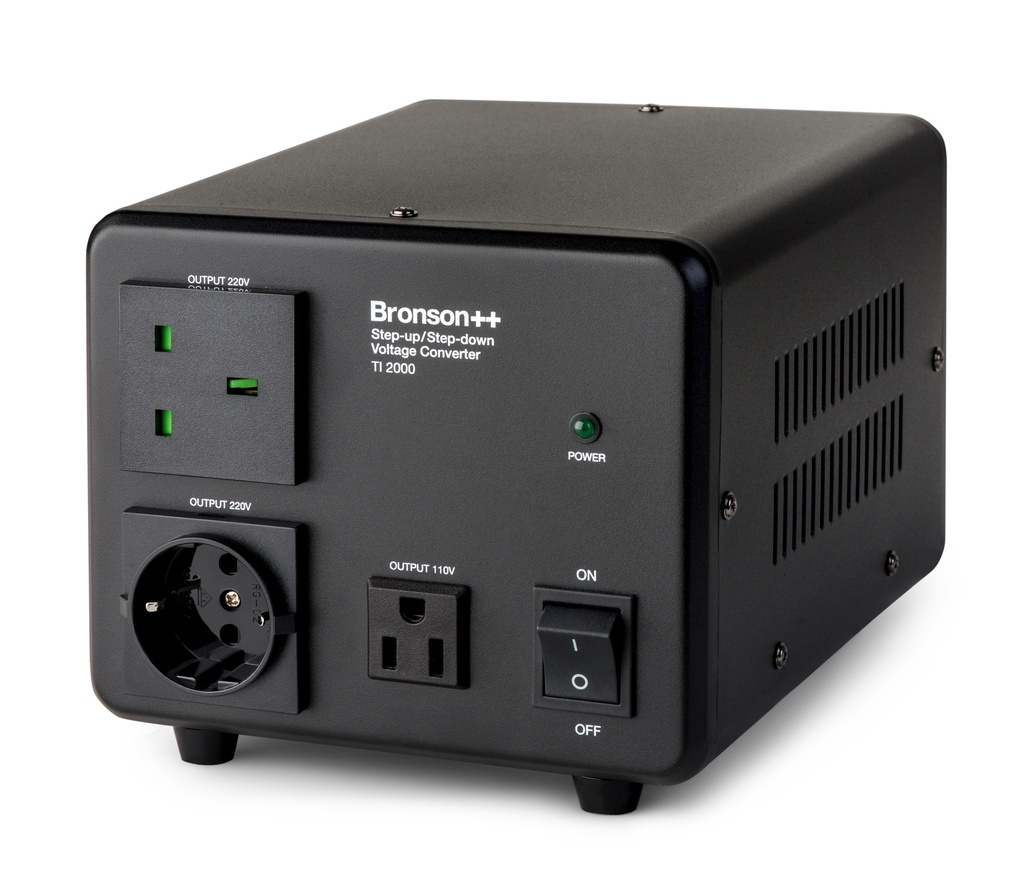

Multiple types of output sockets

• European socket (type C and F) for 230V appliances

• British general socket (type G) for 230V appliances

• American socket (type A and B) for 110V appliance

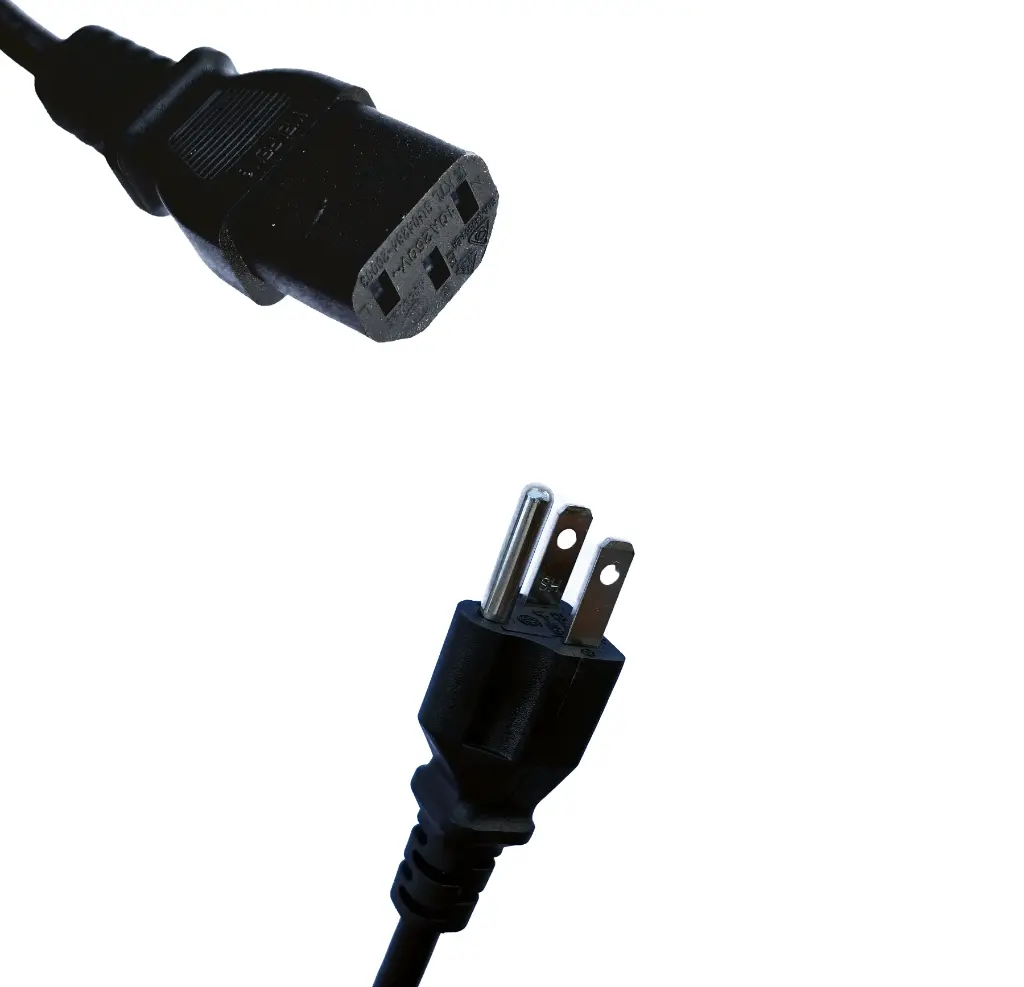

Adaptable input plugs

Through an IEC input the Bronson TI allows connecting a power cable with any type of input plug.

Power switch

All models from the TI series come with an ON/OFF switch.

The Power LED will light up green once the switch is turned into the ON position.

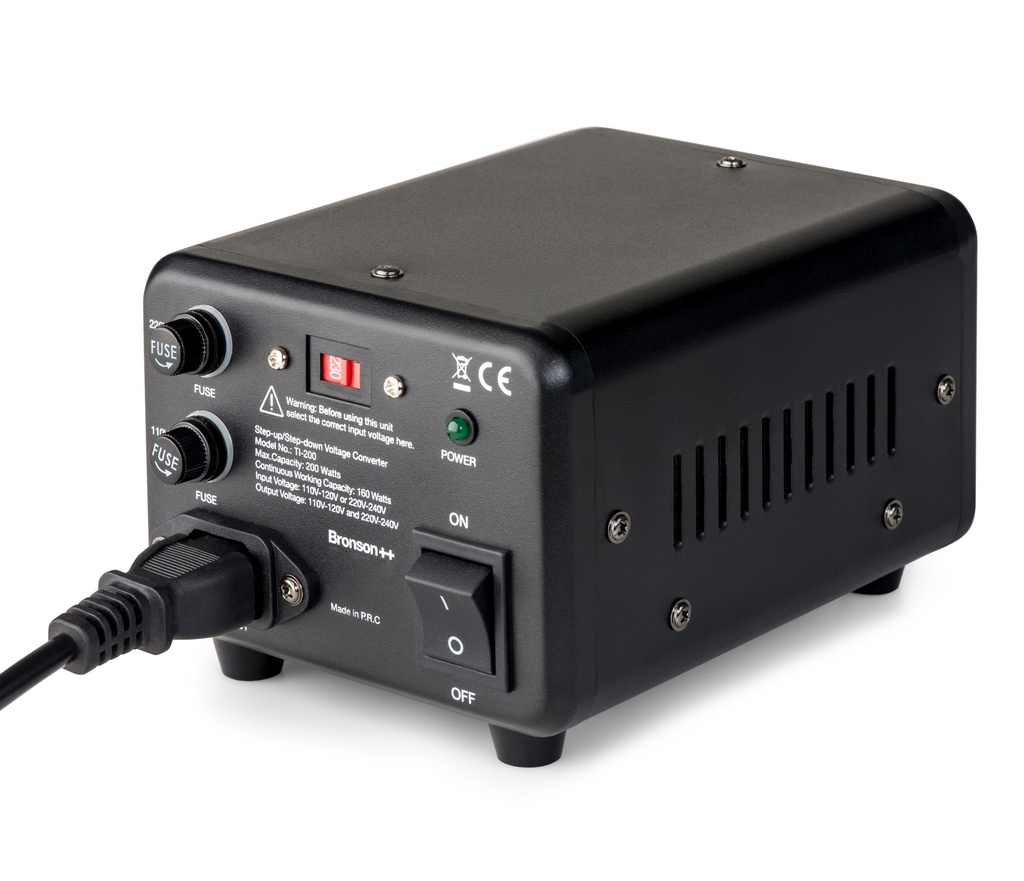

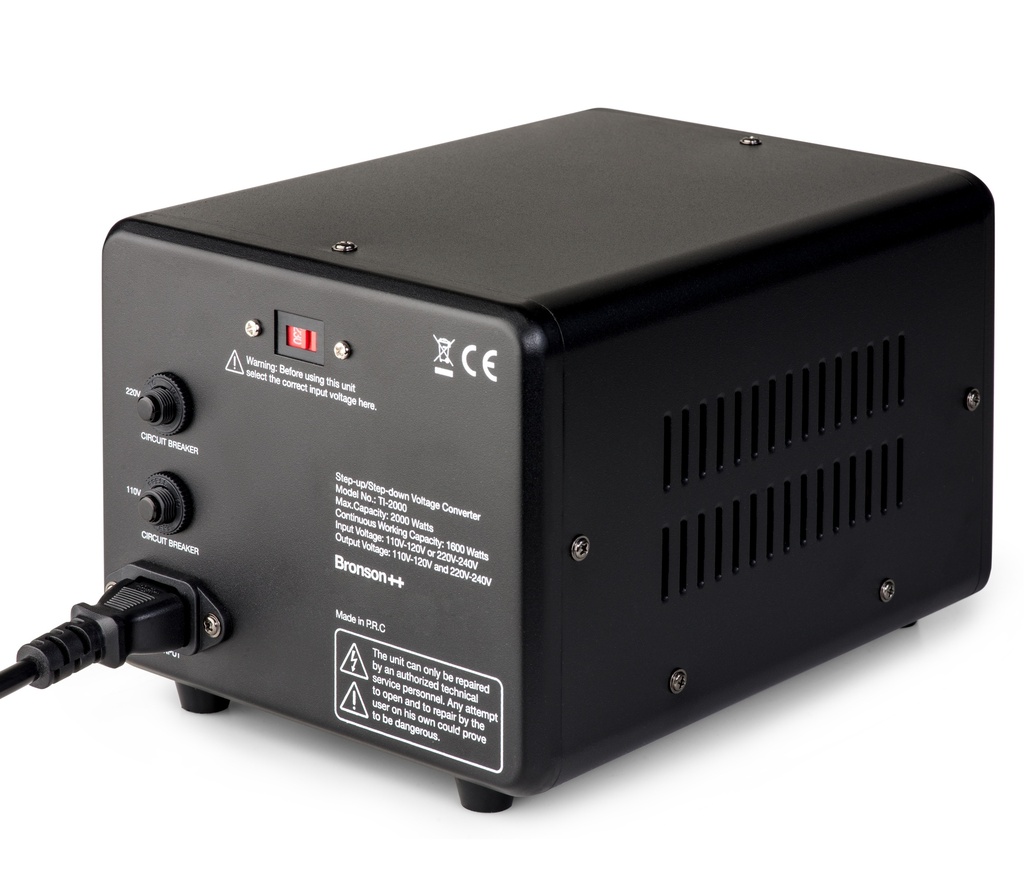

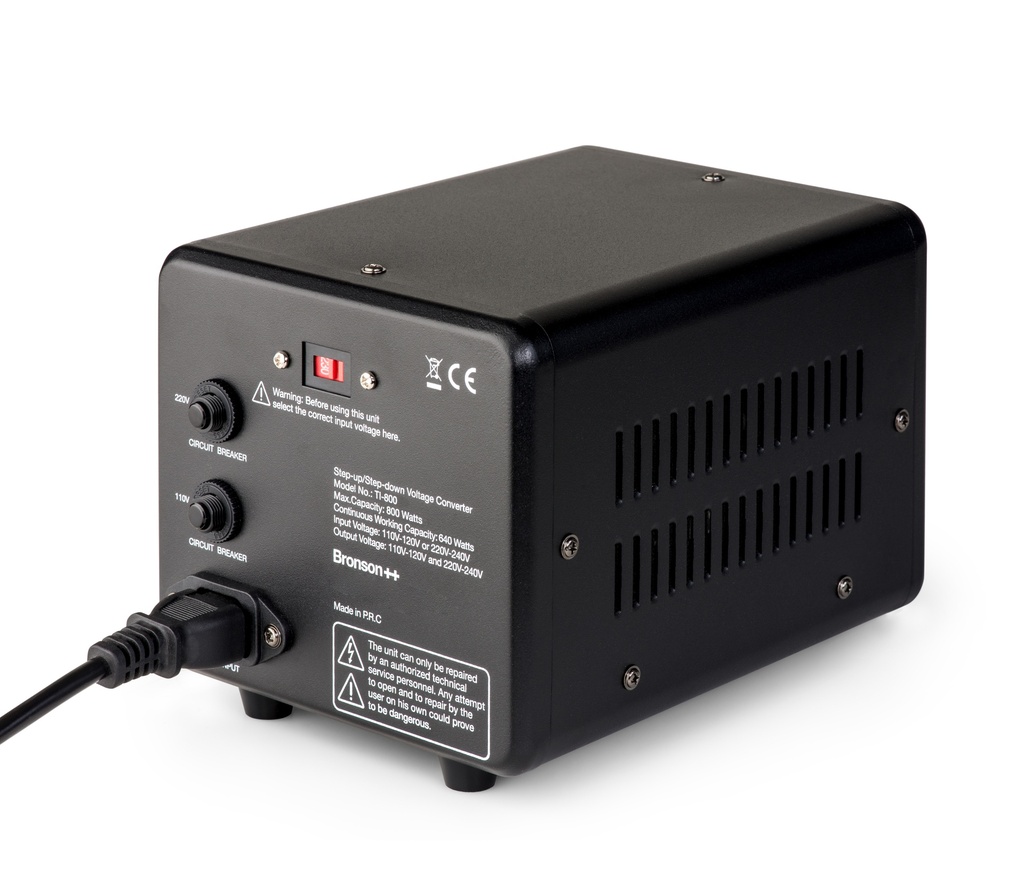

Input Voltage Selector

 To select the Input voltage, switch the red button on the Bronson TI's backside to

                    •  the 230 position to have the converter operate in the step-down mode;

                    • the 115 position to have the converter operate in the step-up mode.

Overload protection

All the models are equipped with circuit breakers in case the converter gets overloaded from the connected appliance(s).

Smaller models (TI 200, TI 300 and TI 500) are equipped with a fine fuse whilst all others are built with a circuit breaker.

Safety notes

The Bronson TI series is designed to convert AC voltage. These converters do not convert DC voltage.

The Bronson TI series does not convert frequency (in Hertz) between 50Hz and 60Hz for most electrical appliances this doesn't pose a problem. Nevertheless we recommend checking with the manufacturer of your devices to ensure compatibility with both 50Hz and 60Hz power supply.

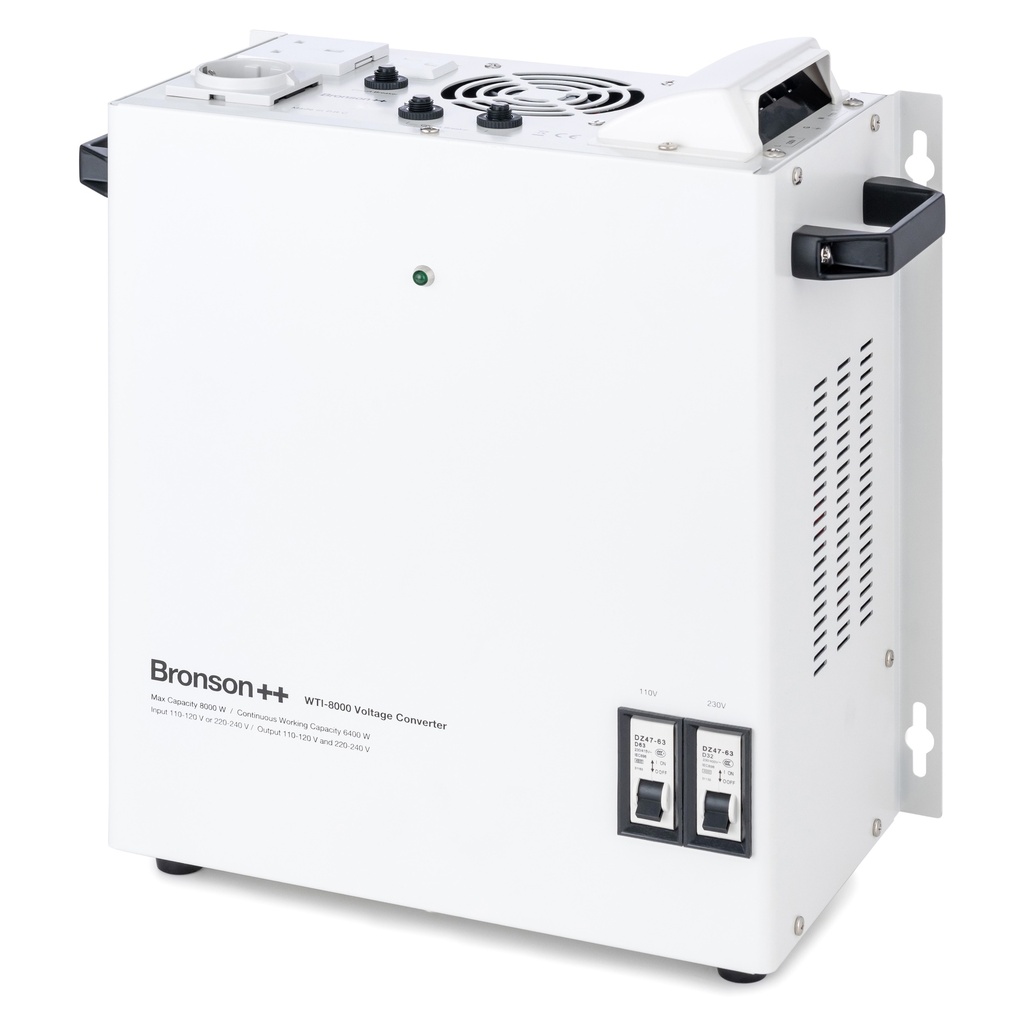

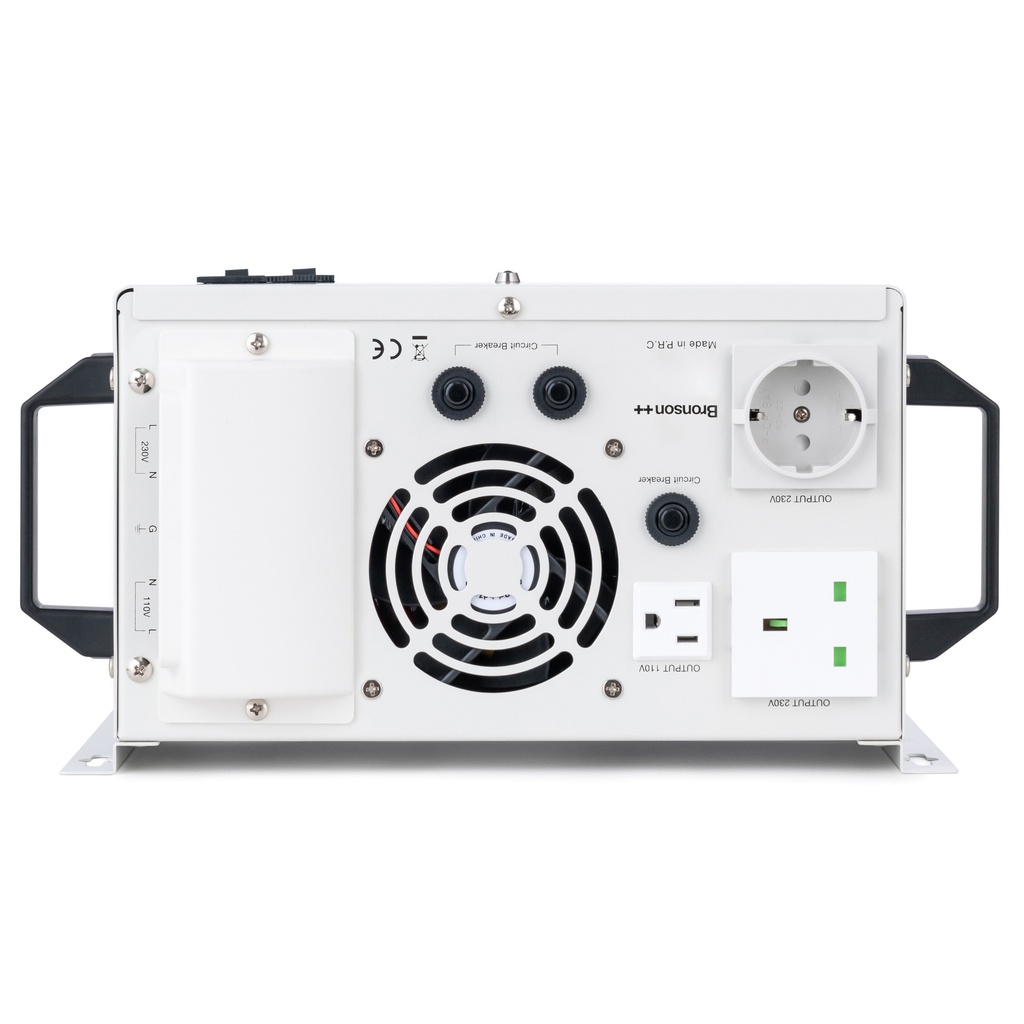

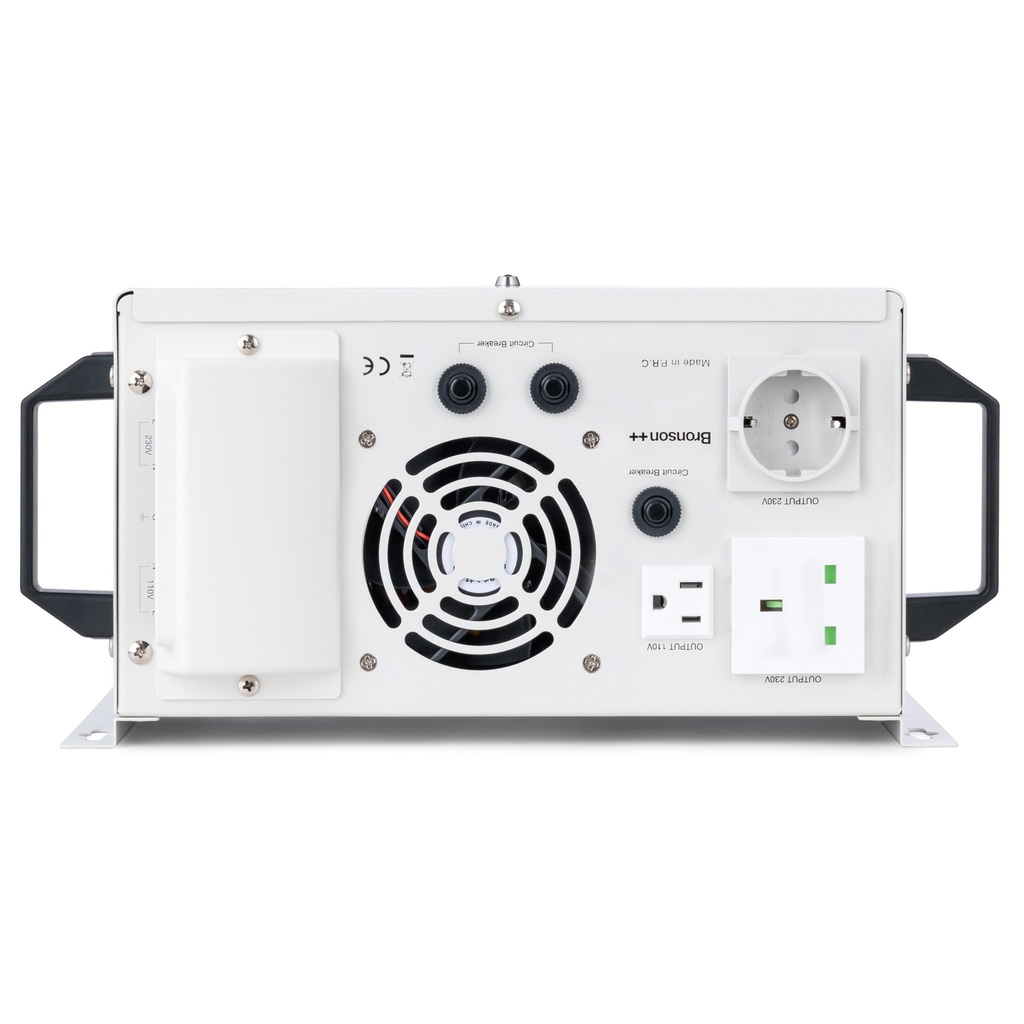

Multiple types of output sockets

• European socket (type C and F) for 230V appliances

• British general socket (type G) for 230V appliances

• American socket (type A and B) for 110V appliances

The power on each output socket is limited by a 15A circuit breaker (corresponds to 1650W at 110V and 3450W at 230V).

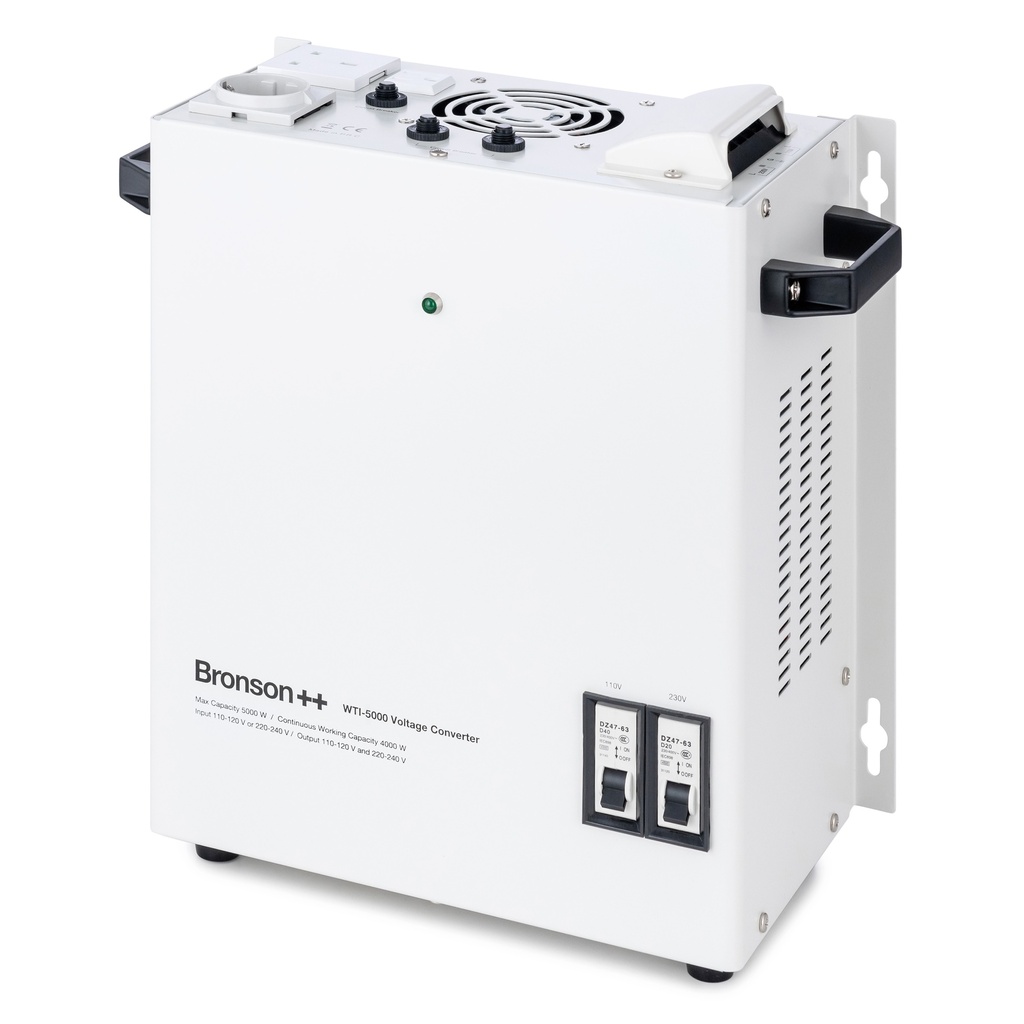

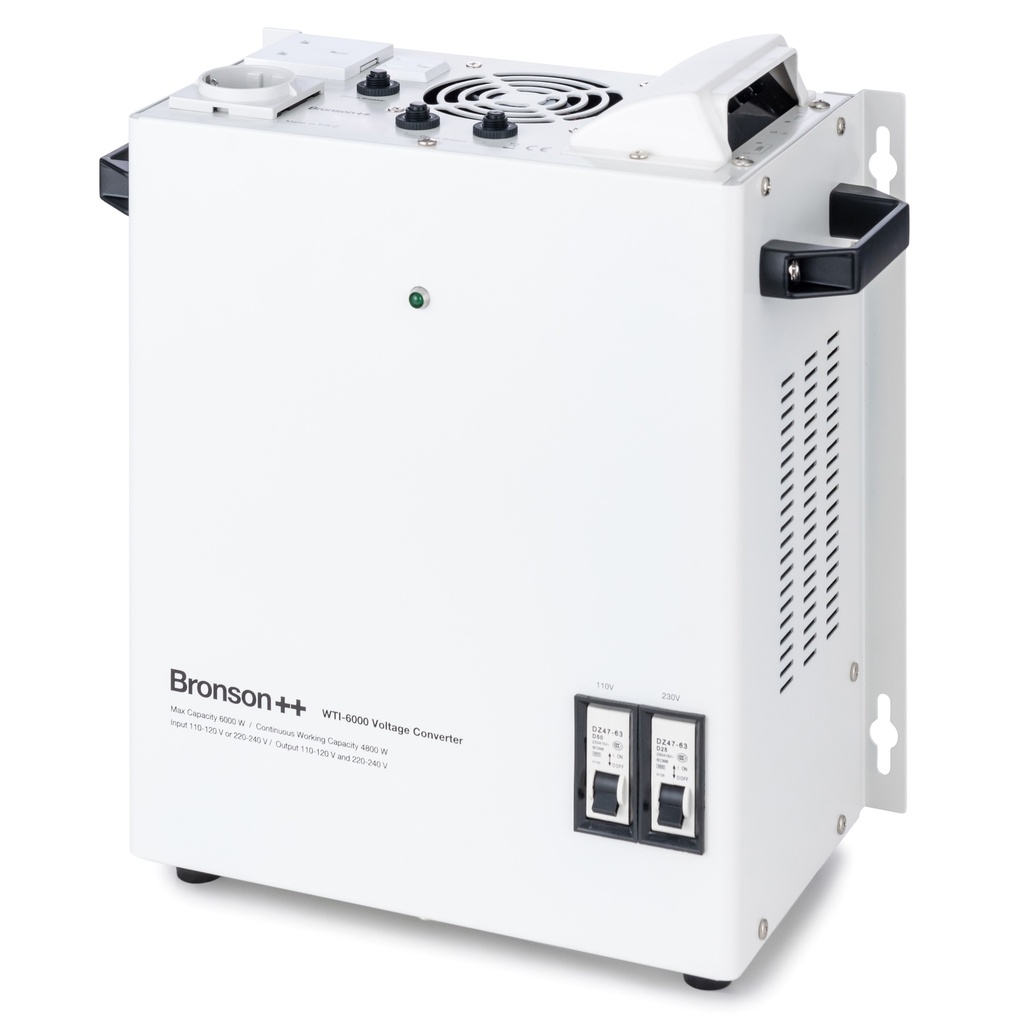

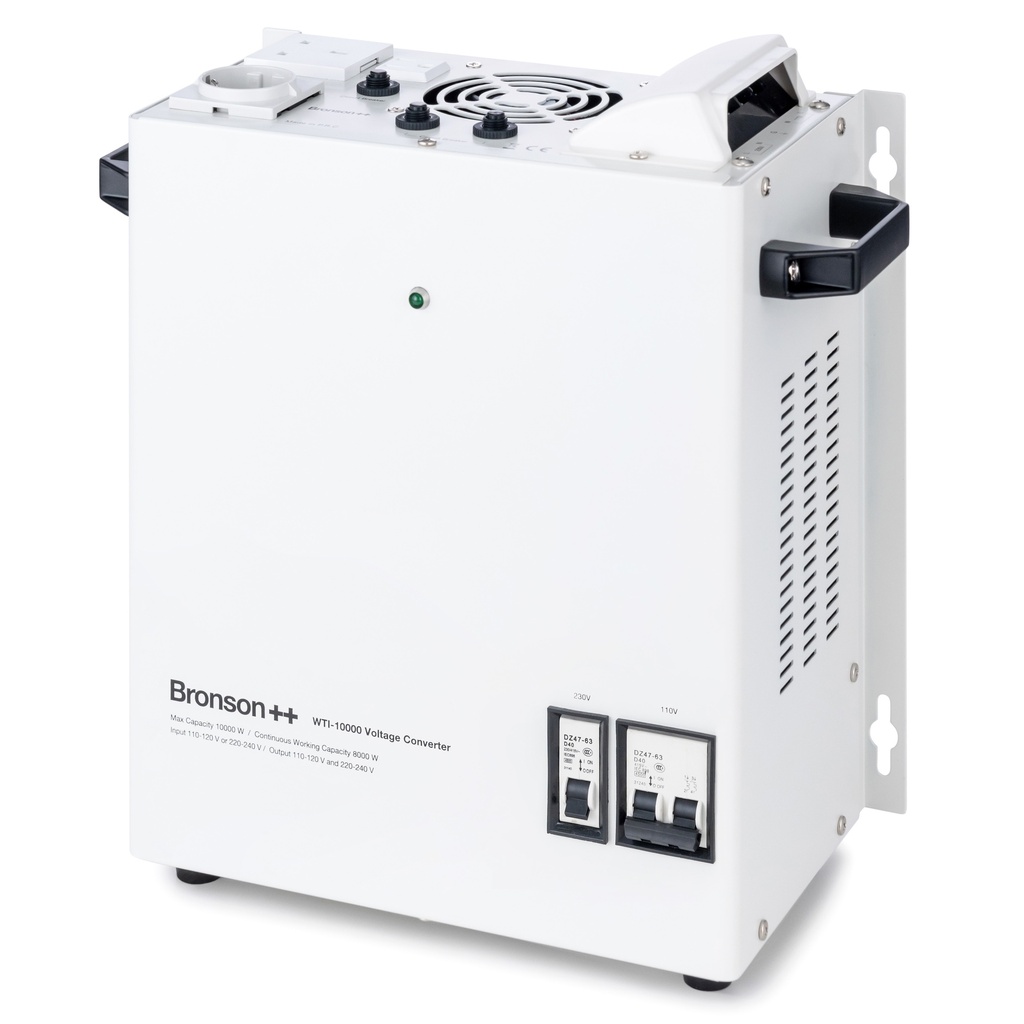

Screw terminal

The power supply must be directly connected to the screw terminal.

To run the Bronson WTI on its full capacity, the output must be connected directly to the screw terminal.

Power switch

All models from the WTI series come with two ON/OFF switches, one for 110V and another for 230V input.

By pushing the switch up, the input voltage will be defined:

• the 230V switch will have the converter operate in step-down mode;

• the 110V switch will have the converter operate in step-up mode.


The power LED will light up green once one of the switches is turned into the ON position.

Overload protection

All the models are equipped with circuit breakers in case the converter gets overloaded from the connected appliance(s).

Overheating protection

All models have a cooling fan to cool the converter’s core when overheating due to heavy load. They will automatically shut down at core temperatures above 130 °C.

Safety notes

The Bronson WTI series is designed to convert AC voltage. These converters do not convert DC voltage.

The Bronson WTI series does not convert frequency (in Hertz) between 50Hz and 60HZ. For most electrical appliances this doesn’t pose a problem. Nevertheless, we recommend checking with the manufacturer of your devices to ensure compatibility with both 50Hz and 60Hz power supply.

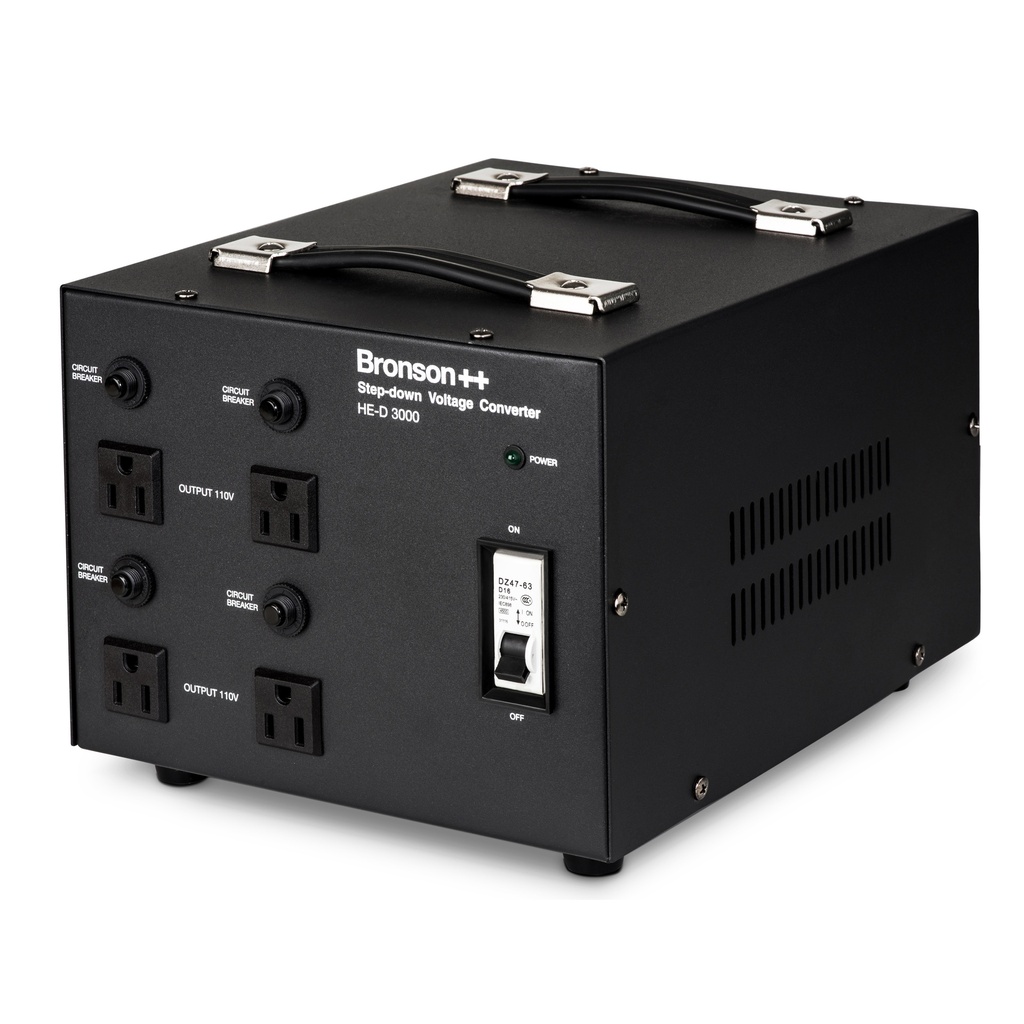

Multiple 110V output sockets

• Four American sockets (type A and B)

The power on each output socket is limited by a 15A circuit breaker (corresponds to 1650W at 110V).

Choosable input plugs

The Bronson HE-D can be bought with either a Schuko or a British plug.

Power switch

All models from the HE-D series come with an ON/OFF switch.

The power LED will light up green once the switch is turned into the ON position.

Overload protection

All models are equipped with circuit breakers in case the converter gets overloaded from the connected appliance(s).

Cooling fan

To cool the transformer’s core when overheating due to heavy load.

Soft starter

To avoid the circuit breakers from tripping due to possible high inrush current when starting the appliance(s).

Safety notes

The Bronson HE-D series is designed to convert AC voltage. These converters do not convert DC voltage.

The Bronson HE-D series does not convert frequency (in Hertz) between 50Hz and 60HZ. For most electrical appliances this doesn’t pose a problem. Nevertheless, we recommend checking with the manufacturer of your devices to ensure compatibility with both 50Hz and 60Hz power supply.

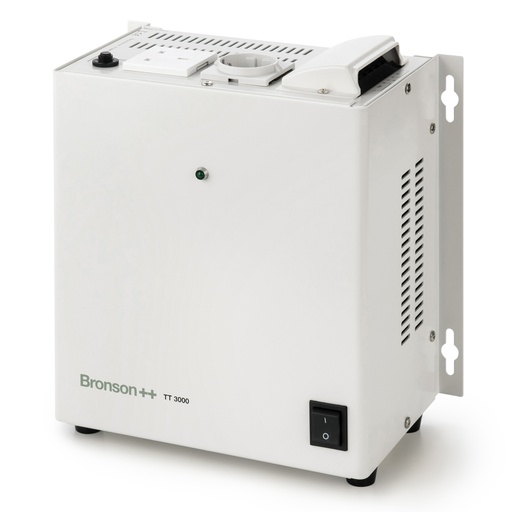

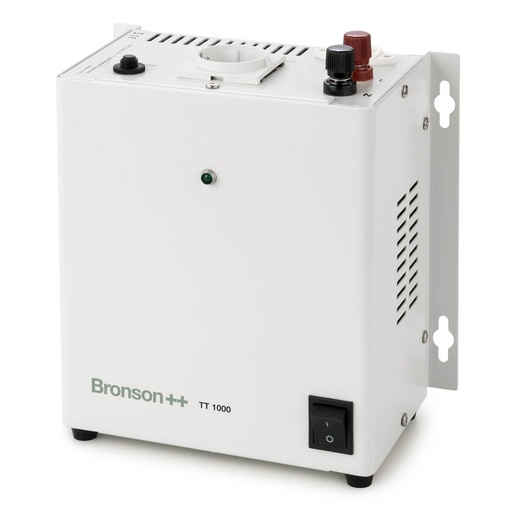

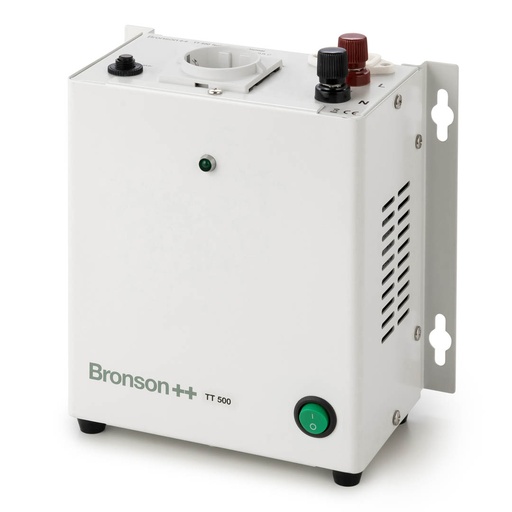

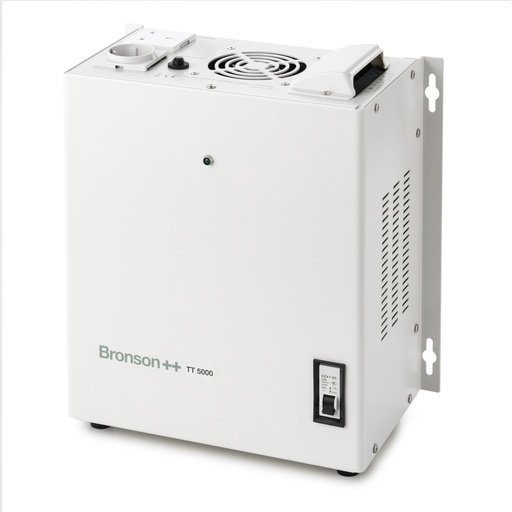

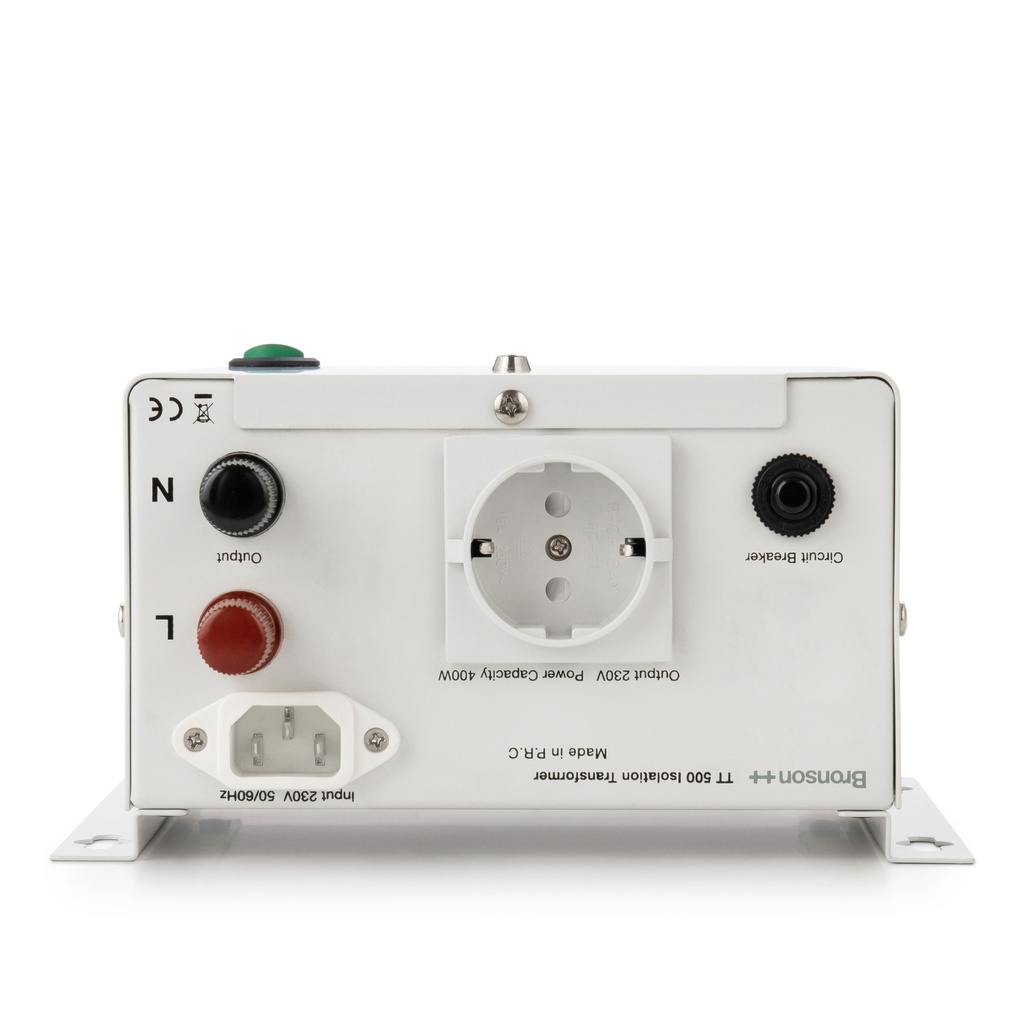

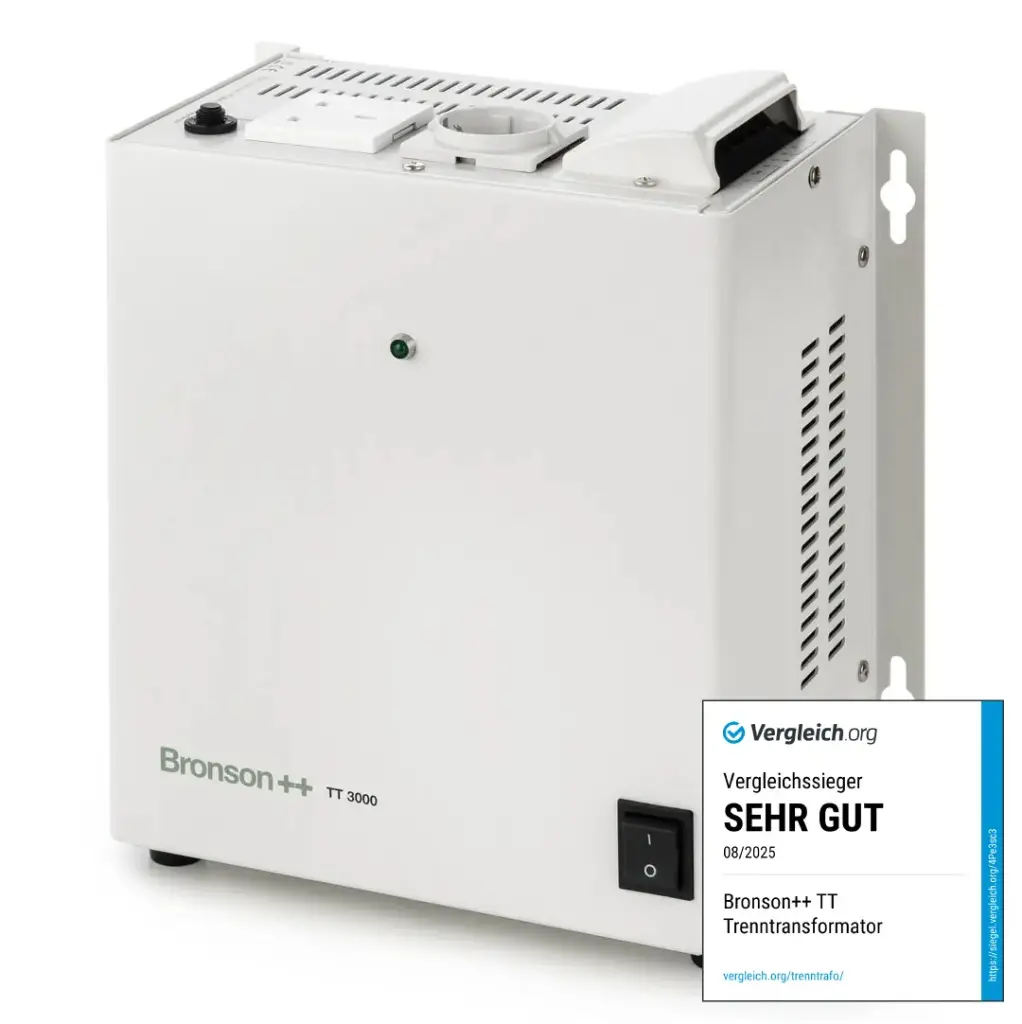

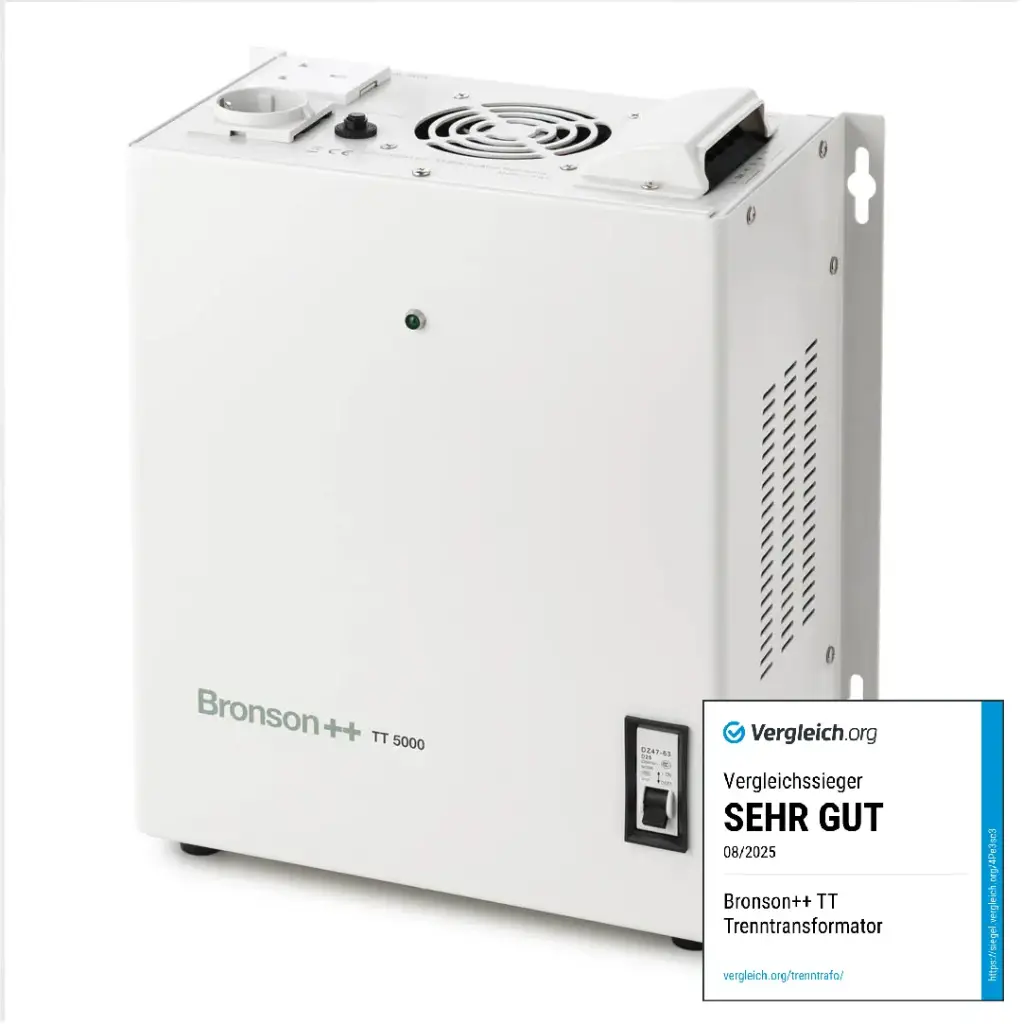

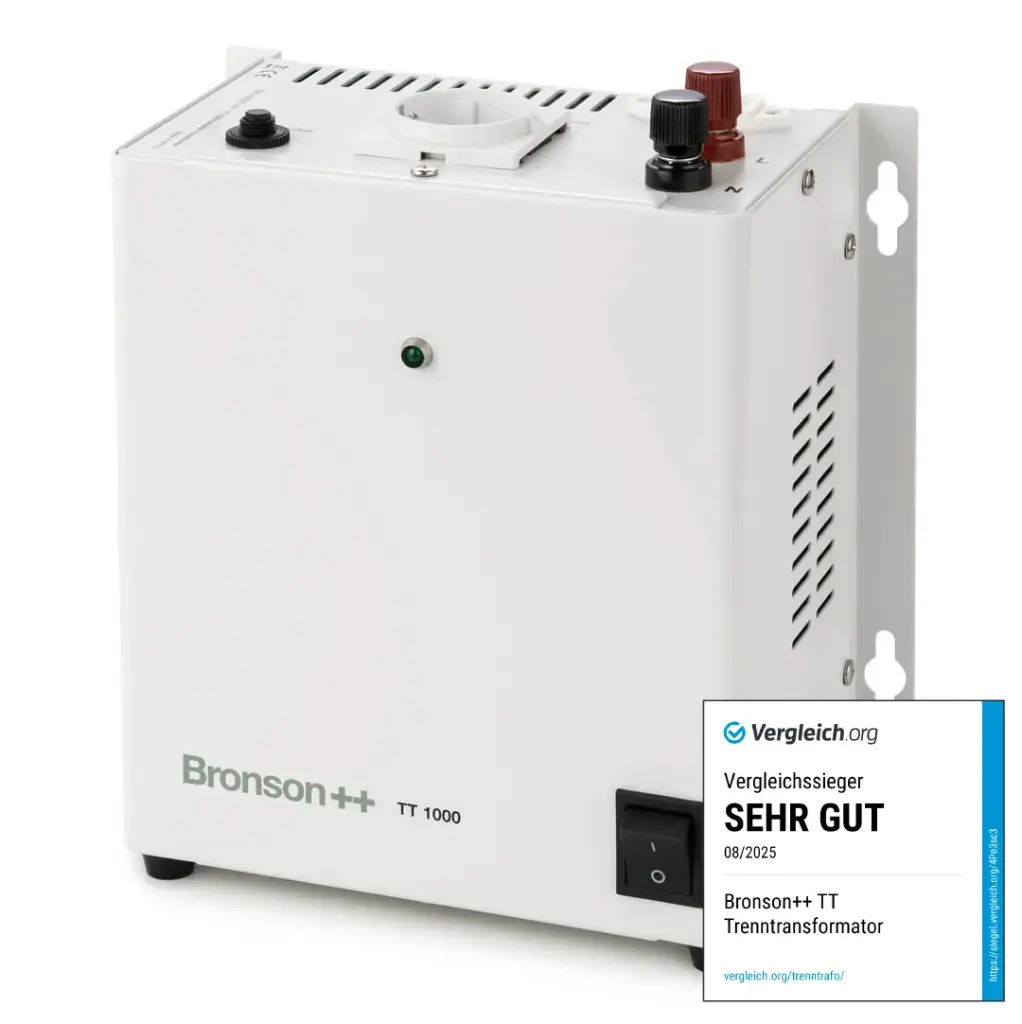

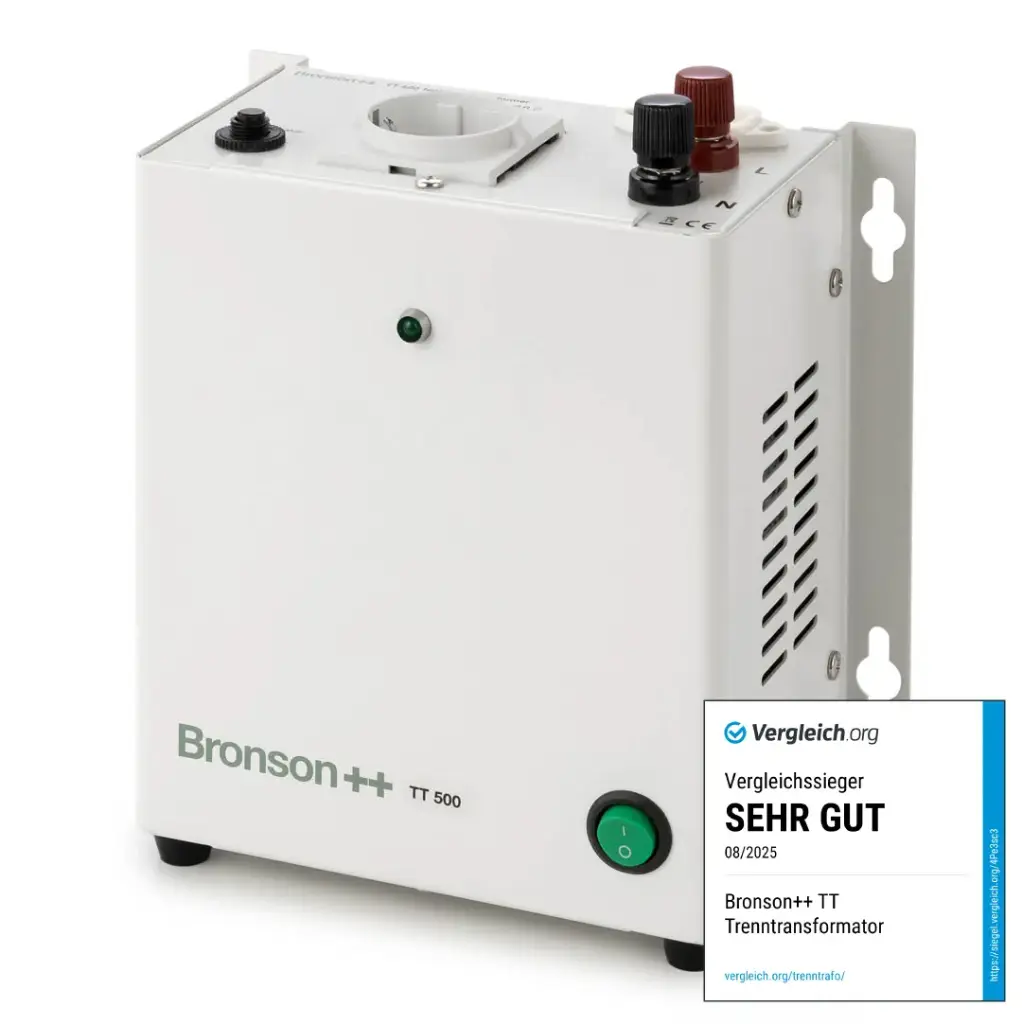

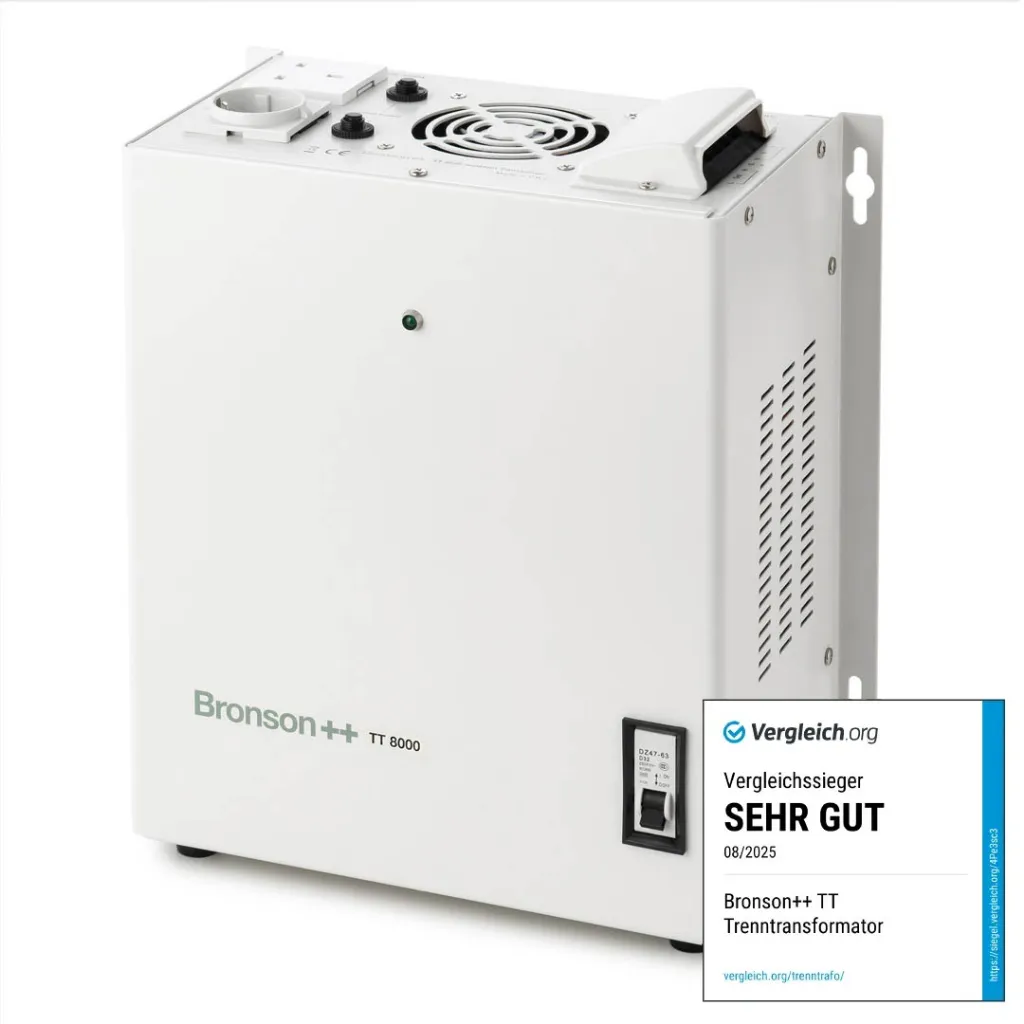

Multiple types of 230V output sockets

• European socket (type C and F)

• British general socket (type G)

The power on each output socket is limited by a 15A circuit breaker (corresponds to 3450W).

Smaller models will have either an European socket or a British general socket.

Adaptable input plugs

Through an IEC input the smaller TT models allow connecting a power cable with any type of input plug.

European models will be delivered with a Schuko plug power cable.

British models will be delivered with a British plug power cable.

Screw terminal

The bigger TT models must connect the power supply to the screw terminal.

To run those TT models on its full capacity, the output must be connected to the screw terminal as well.

Connecting the output directly to the terminals avoids a connection to the ground of the transformer, which will prevent electric shock. That’s why all models have a terminal connection for the output.

Power switch

All models from the TT series come with an ON/OFF switch.

The power LED will light up green once the switch is turned into the ON position.

Mounting rails

Allows to vertically wall mount or horizontally fix the transformer to the ground.

Overload protection

All the models are equipped with a circuit breaker in case the transformer gets overloaded from the connected appliance(s).

Cooling fan

To cool the transformer’s core when overheating due to heavy load (only for TT 5000 and TT 8000 models).

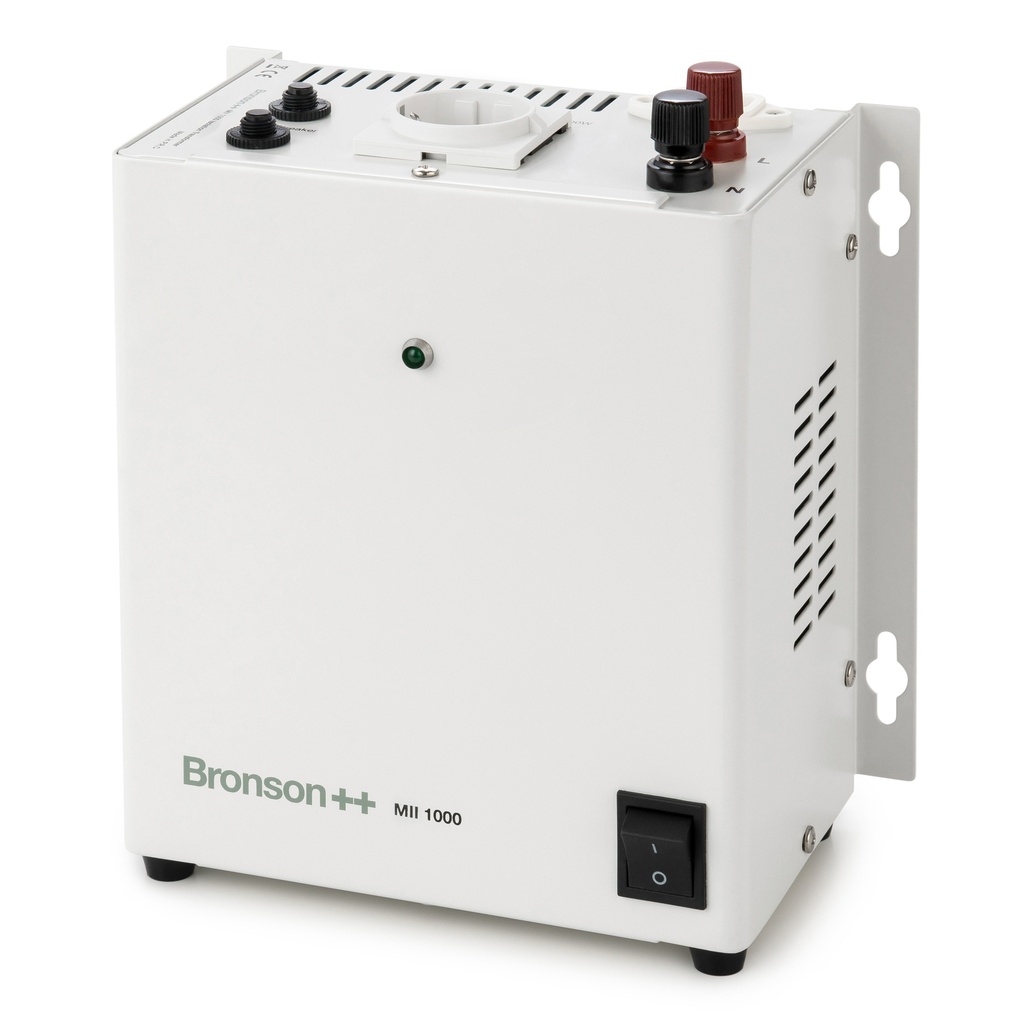

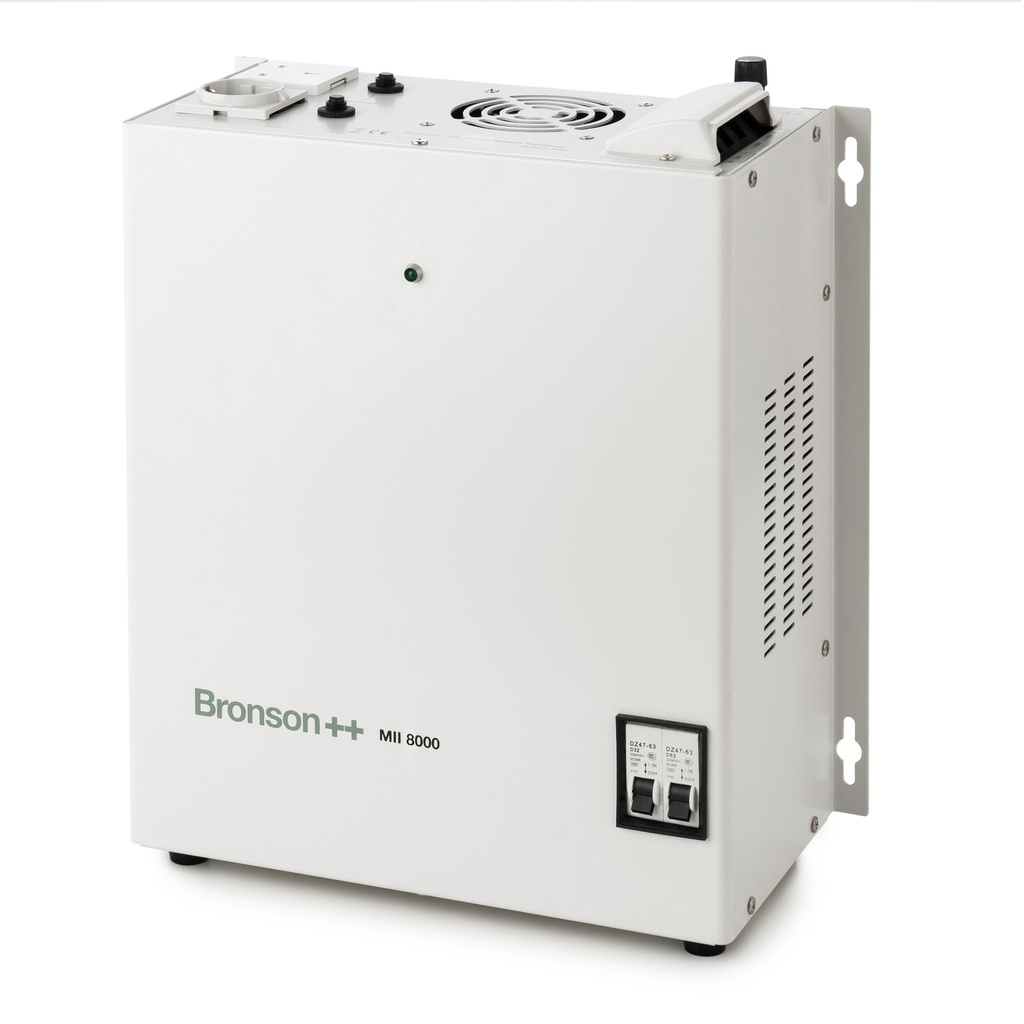

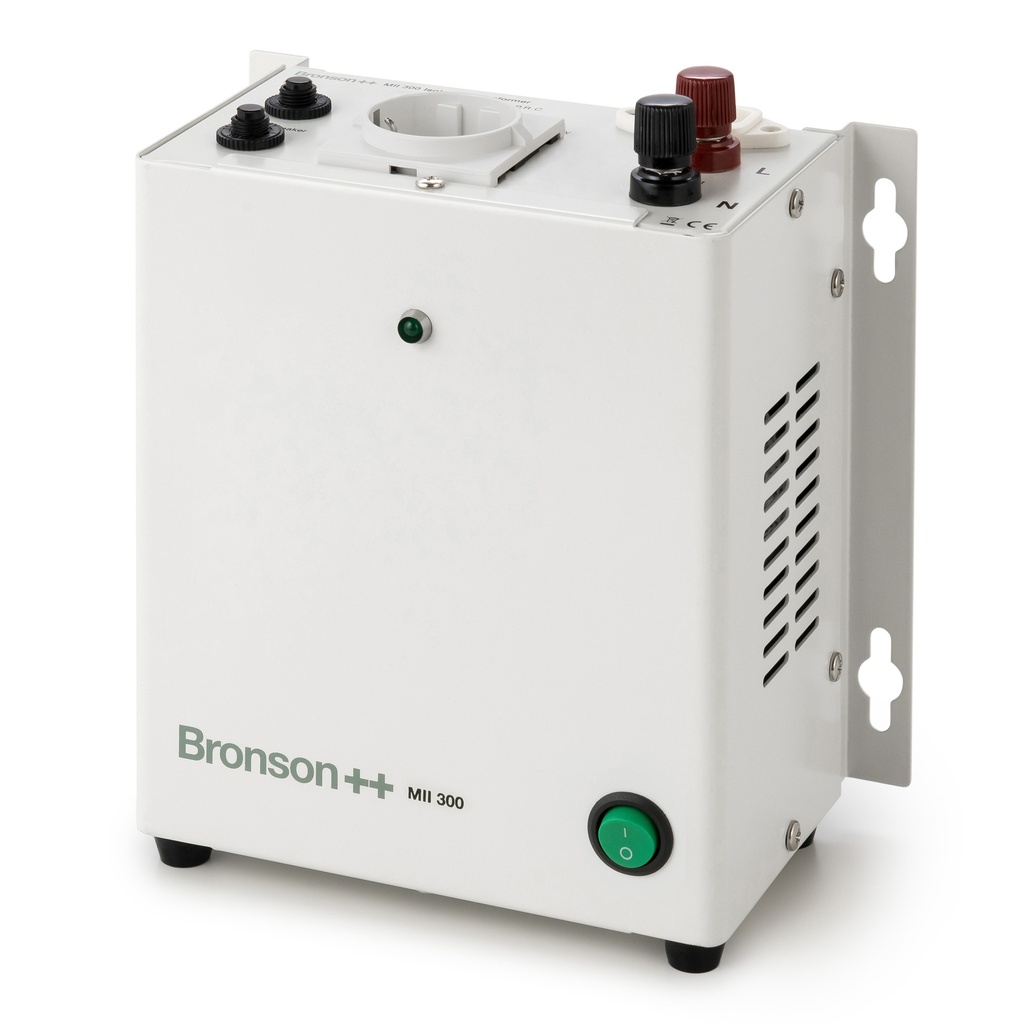

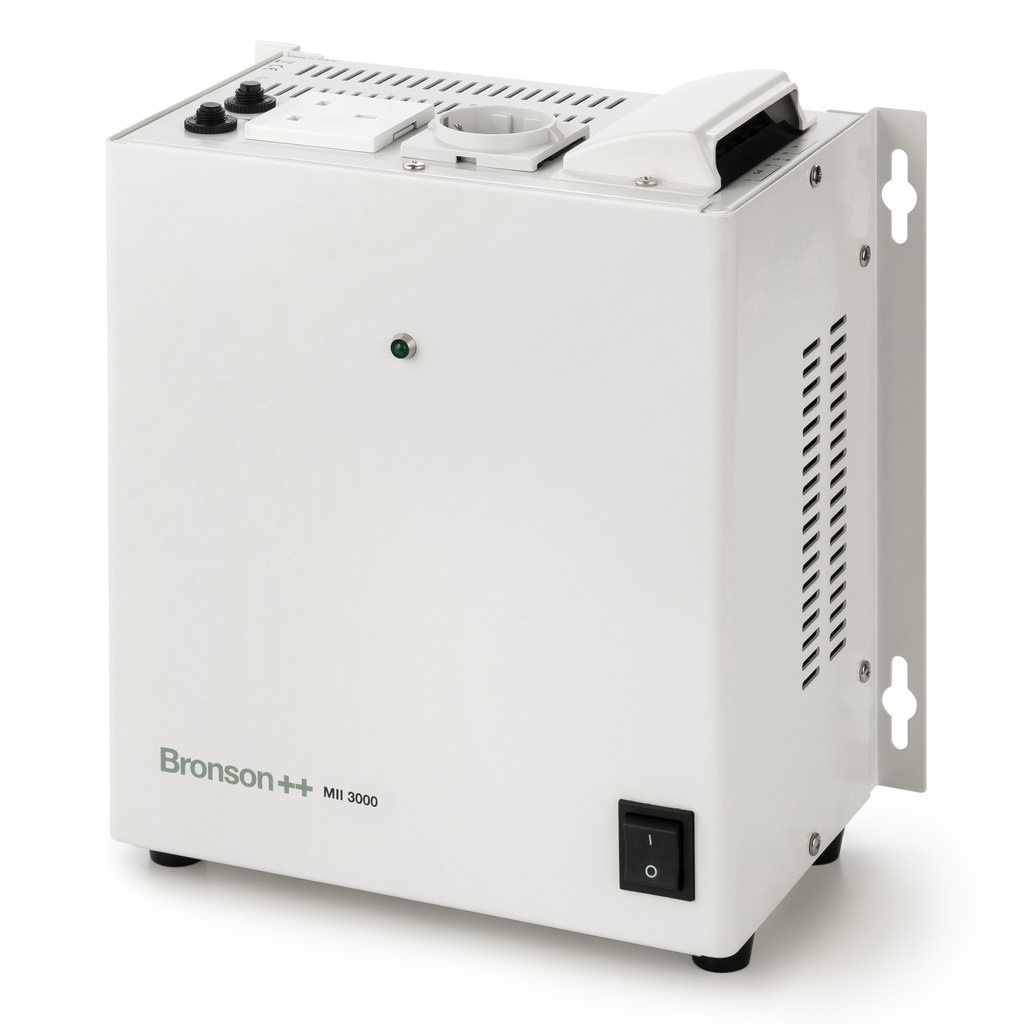

Multiple types of 230V output sockets

• European socket (type C and F)

• British general socket (type G)

The power on each output socket is limited by a 15A circuit breaker (corresponds to 3450W).

Smaller models will have either an European socket or a British general socket.

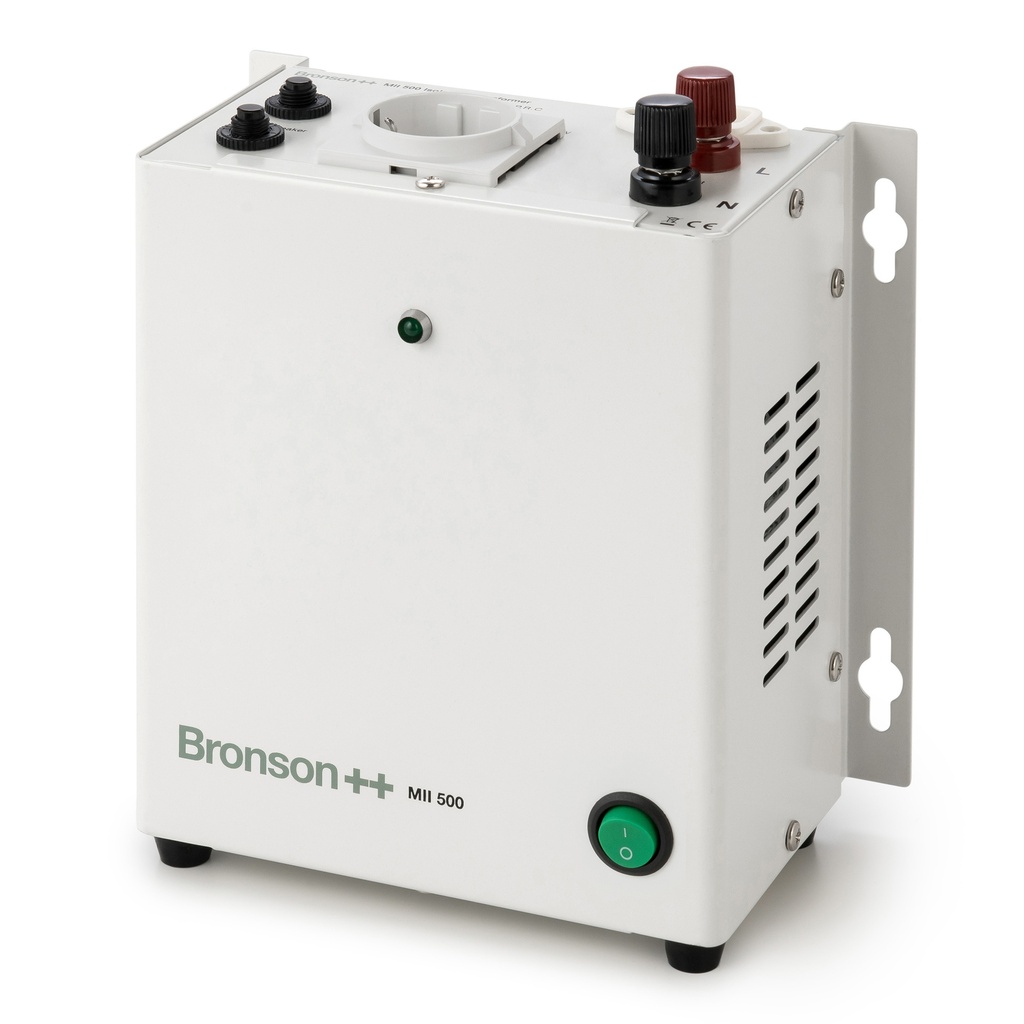

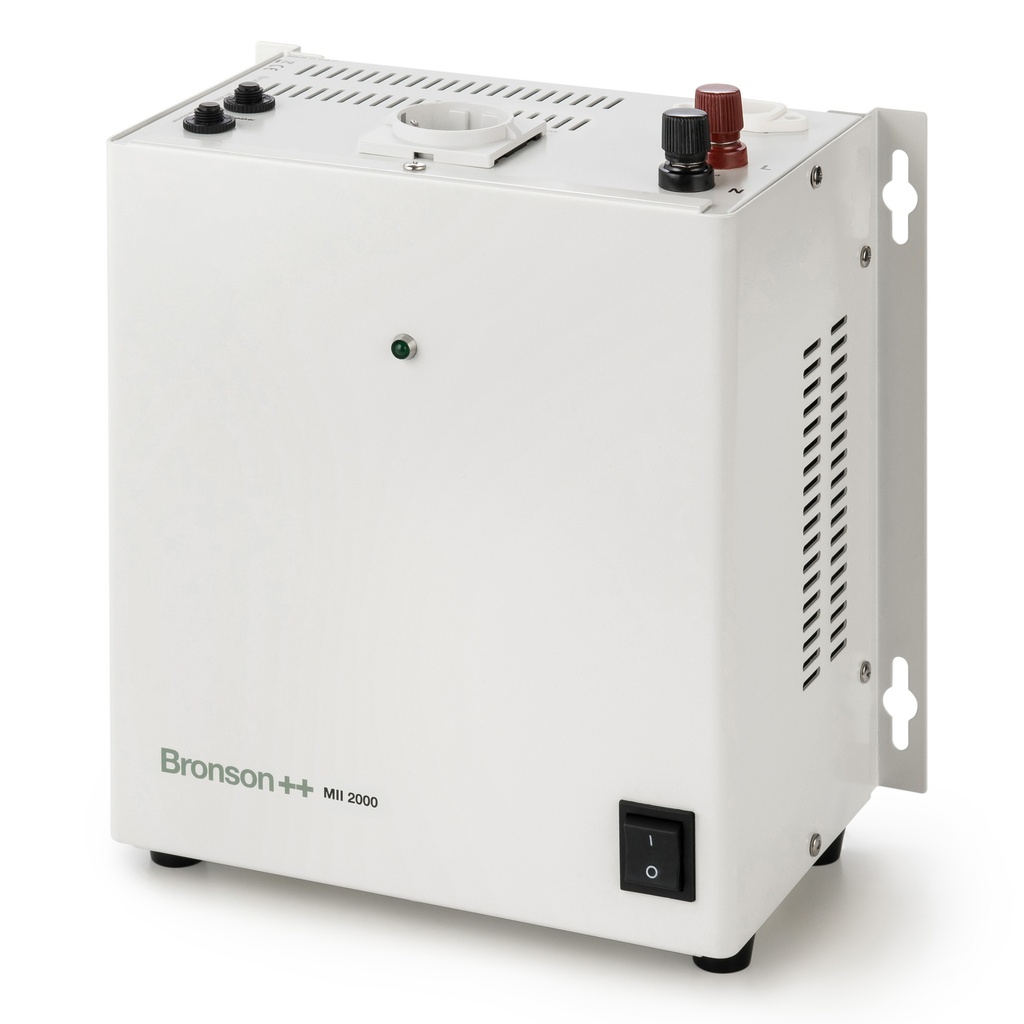

Adaptable input plugs

Through an IEC input the smaller MII models allow connecting a power cable with any type of input plug.

European models will be delivered with a Schuko plug power cable

British models will be delivered with a British plug power cable.

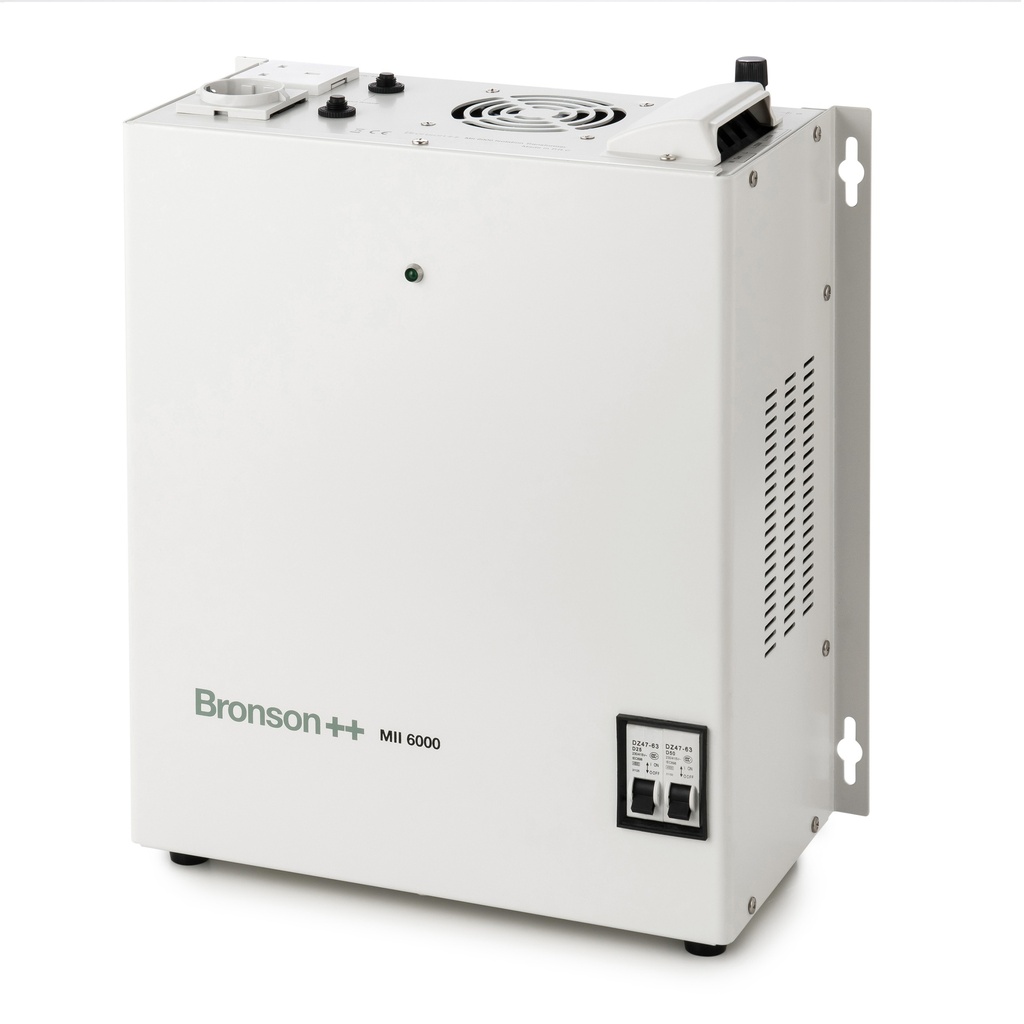

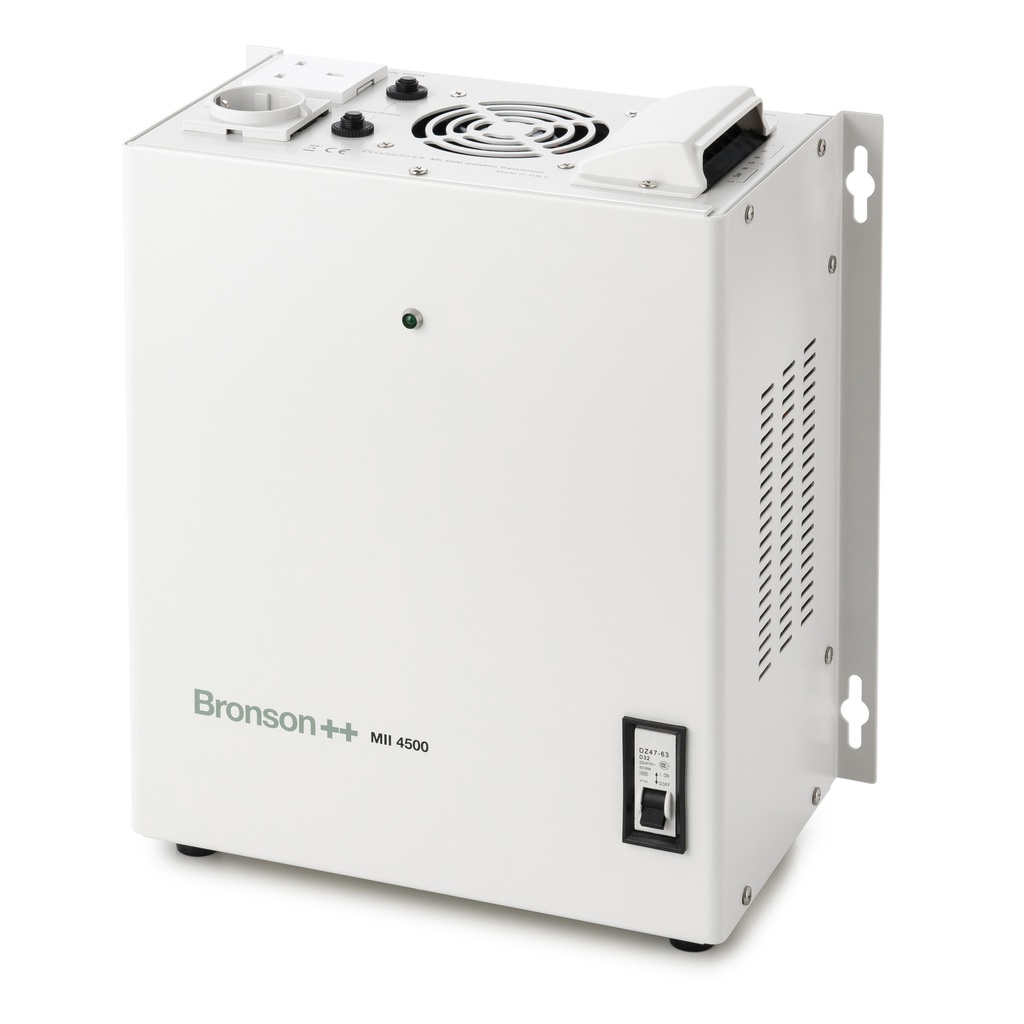

Screw terminal

The bigger MII models must connect the power supply to the screw terminal.

To run those MII models on its full capacity, the output must be connected to the screw terminal as well.

Connecting the output directly to the terminals avoids a connection to the ground of the transformer, which will prevent electric shock. That’s why all models have a terminal connection for the output.

Power switch

All models from the MII series come with an ON/OFF switch. Bigger models come with two ON/OFF switches, one for 110V and another for 230V input.

The power LED will light up green once the switch is turned into the ON position.

Mounting rails

Allows to vertically wall mount or horizontally fix the transformer to the ground.

Overload protection

All the models are equipped with a circuit breaker in case the transformer gets overloaded from the connected appliance(s).

Cooling fan

To cool the transformer’s core when overheating due to heavy load (only for MII 4500, MII 6000 and MII 8000 models).

Soft starter

To avoid the circuit breakers from tripping due to possible high inrush current when starting the appliance(s).

Safety notes

The Bronson MII series is designed to convert AC voltage. These converters do not convert DC voltage.

The Bronson MII series does not convert frequency (in Hertz) between 50Hz and 60HZ. For most electrical appliances this doesn’t pose a problem. Nevertheless, we recommend checking with the manufacturer of your devices to ensure compatibility with both 50Hz and 60Hz power supply.

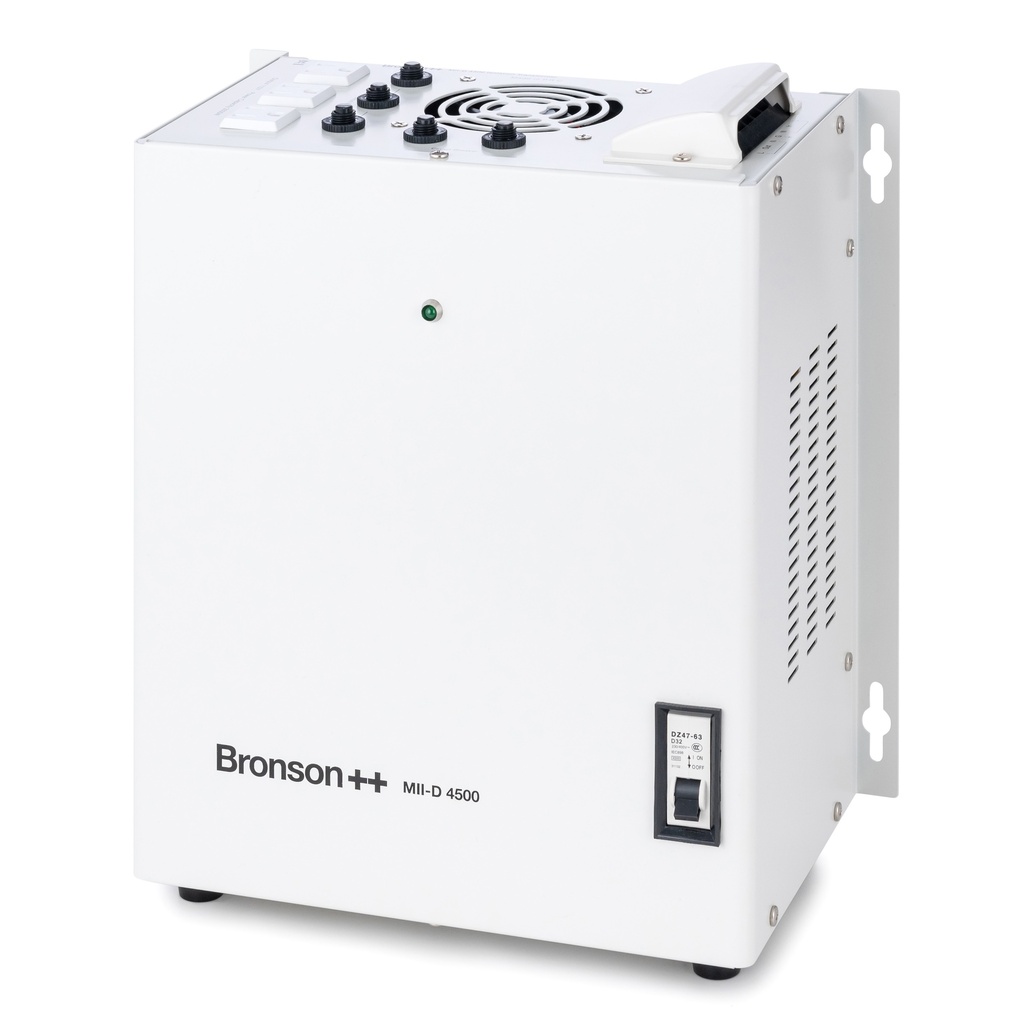

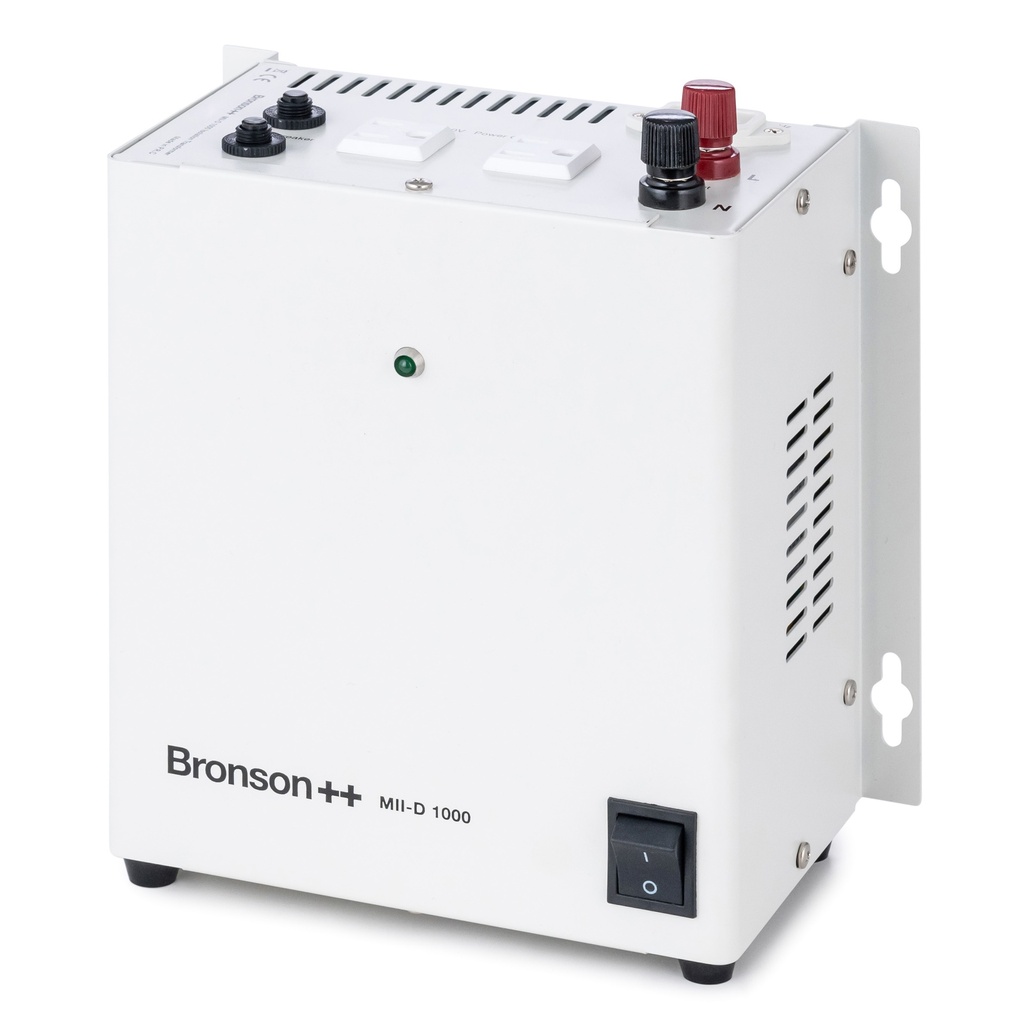

Multiple 110V output sockets

• American sockets (type A and B)

The power on each output socket is limited by a 15A circuit breaker (corresponds to 1650W).

Adaptable input plugs

Through an IEC input the smaller MII-D model allows connecting a power cable with any type of input plug.

Screw terminal

The bigger MII-D model must connect the power supply to the screw terminal.

To run that MII-D model on its full capacity, the output must be connected to the screw terminal as well.

Connecting the output directly to the terminals avoids a connection to the ground of the transformer, which will prevent electric shock. That’s why all models have a terminal connection for the output.

Power switch

All models from the MII-D series come with an ON/OFF switch.

The power LED will light up green once the switch is turned into the ON position.

Mounting rails

Allows to vertically wall mount or horizontally fix the transformer to the ground.

Overload protection

All the models are equipped with a circuit breaker in case the transformer gets overloaded from the connected appliance(s).

Cooling fan

To cool the transformer’s core when overheating due to heavy load (only for MII-D 4500 model).

Soft starter

To avoid the circuit breakers from tripping due to possible high inrush current when starting the appliance(s) (only for MII-D 1000 model).

Safety notes

The Bronson MII-D series is designed to convert AC voltage. These converters do not convert DC voltage.

The Bronson MII-D series does not convert frequency (in Hertz) between 50Hz and 60HZ. For most electrical appliances this doesn’t pose a problem. Nevertheless, we recommend checking with the manufacturer of your devices to ensure compatibility with both 50Hz and 60Hz power supply.

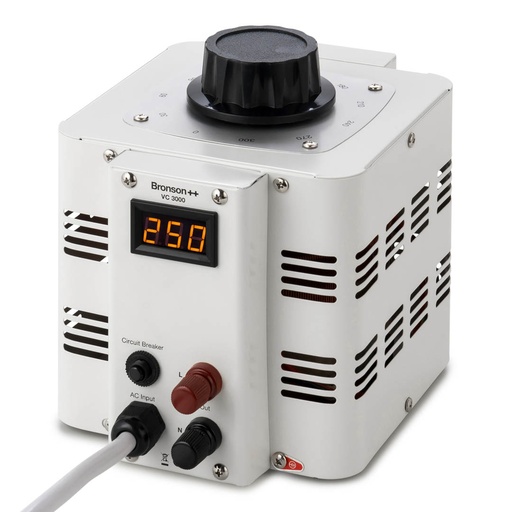

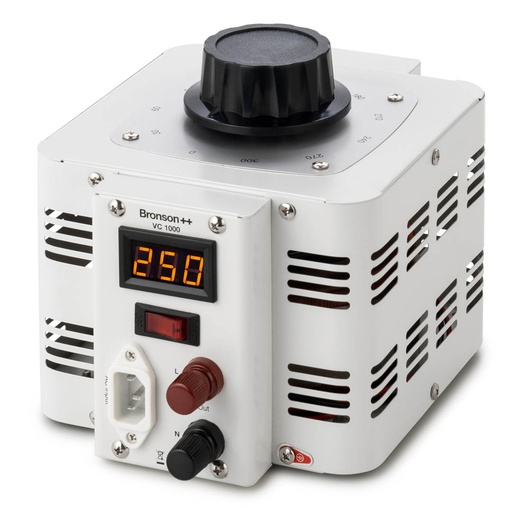

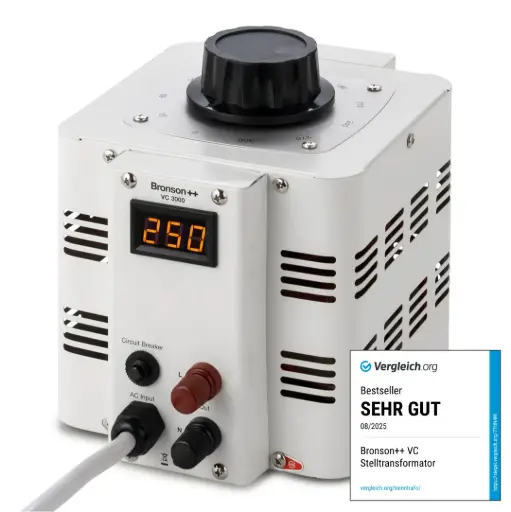

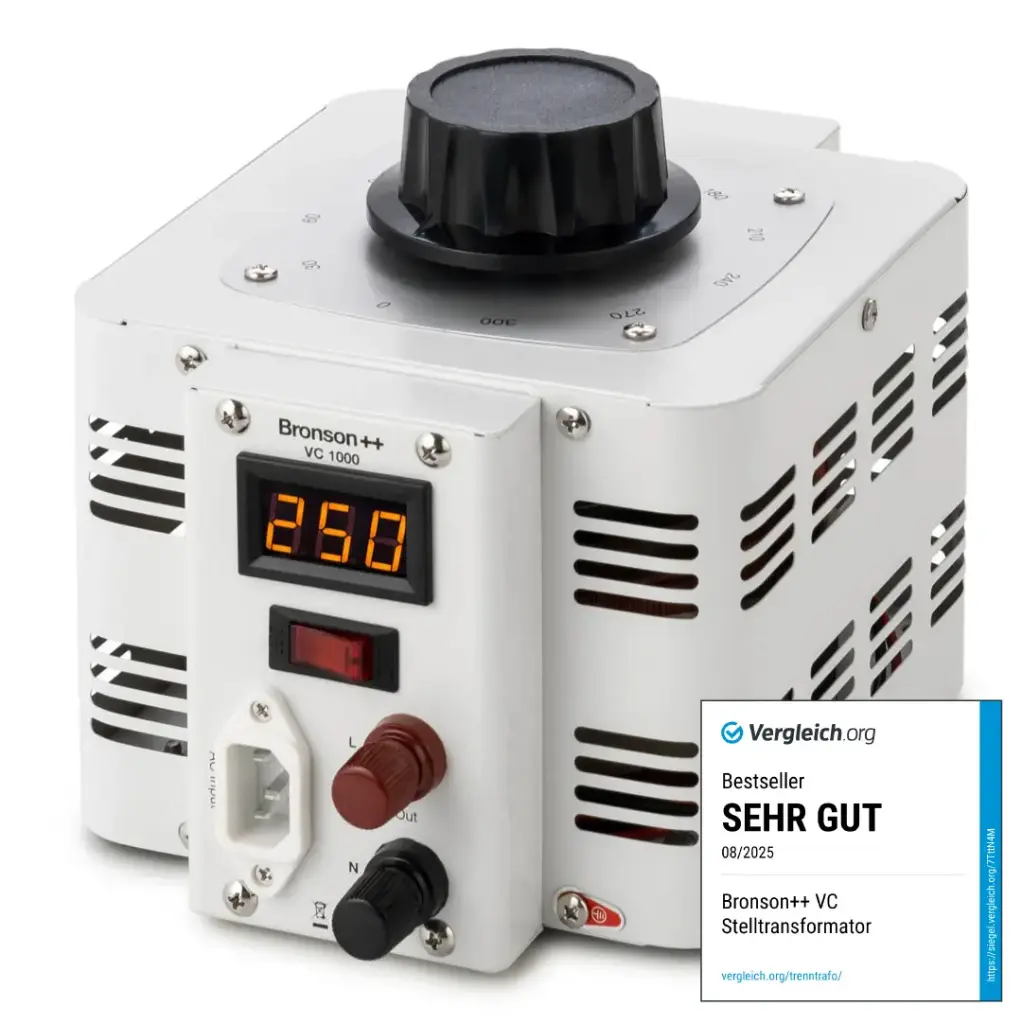

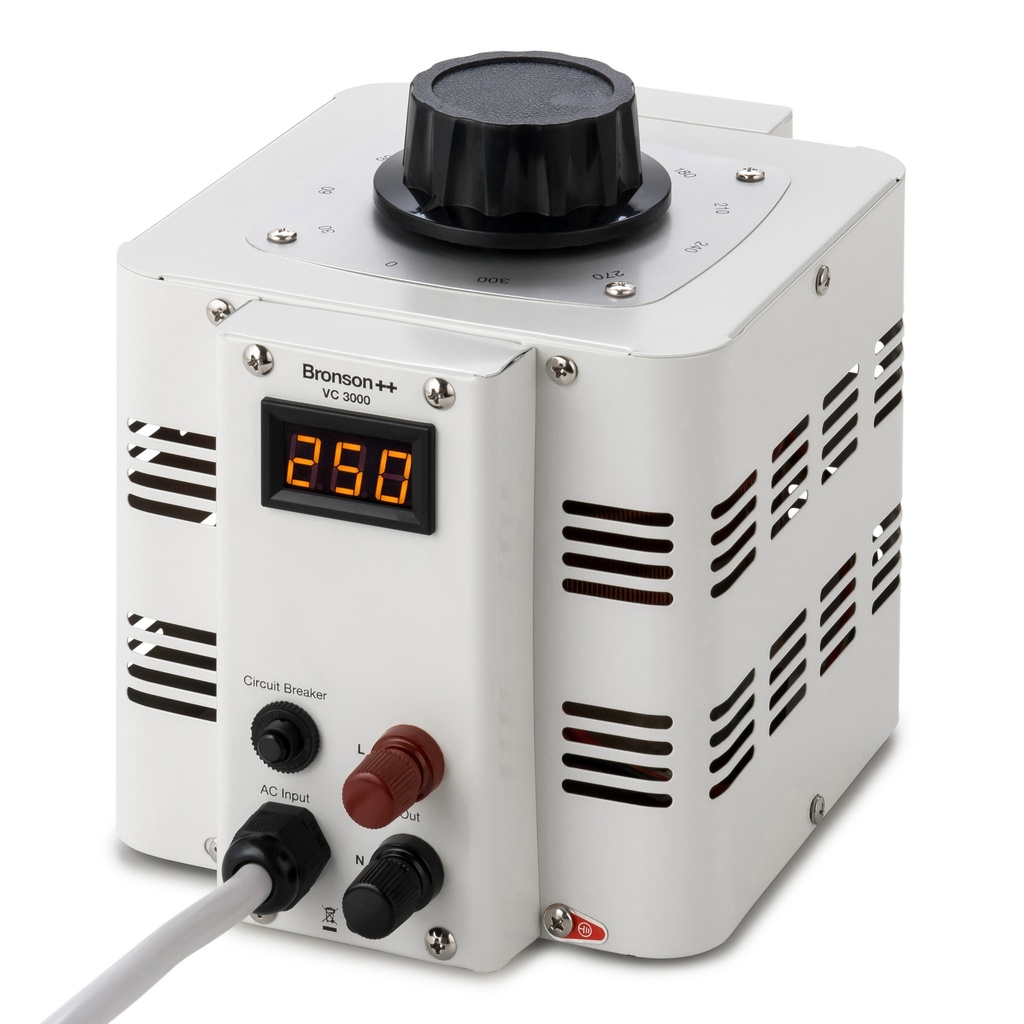

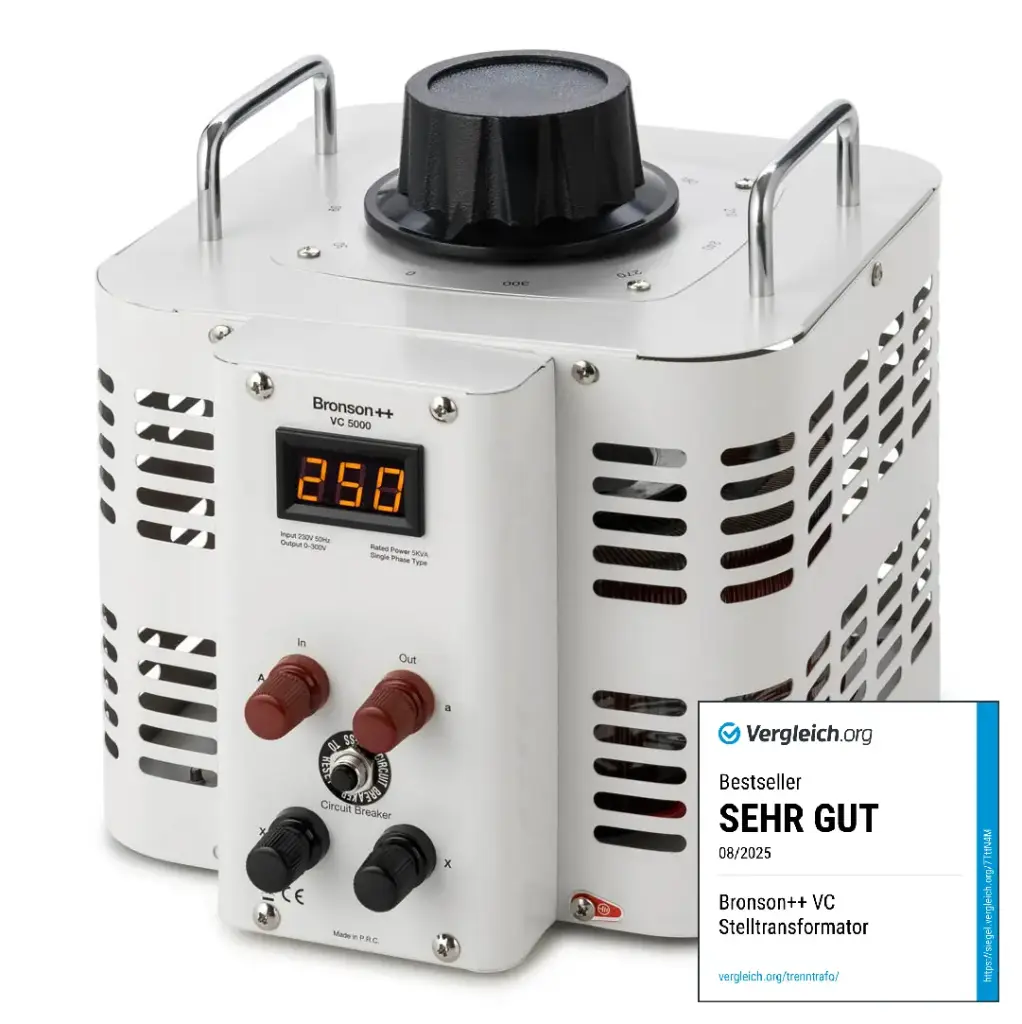

Digital display

Will indicate the output voltage with high accuracy.

Multiple types of 230V output sockets

Smaller models are available with either a

• European socket (type C and F) or


• British general socket (type G)

Note: European models will be delivered with a Schuko plug power cable whilst British models will be delivered with a British plug power cable.

Screw terminal

The bigger VC models must connect the power supply to the screw terminal inlet and the output to the screw terminal outlet.

It's possible to connect the output via screw terminal outlet on the smaller VC models as well.

Safety note

When connecting the output to the screw terminal outlet, It's important to wire the grounding to the Bronson VC case.

Overload protection

All the models are equipped with a circuit breaker in case the voltage regulator gets overloaded from the connected appliance(s).

Automatic switch-on

The Bronson VC will automatically switch on when an inrush current is detected.

Status display

The LED display will show all relevant information of the SRG features.

• Input voltage

• Output voltage

• Time delay

• If it’s normally working

• If something is unusual

• Overheating

• Over voltage

• Under voltage

• Load percentage and overloading indication

Multiple output sockets

2x European sockets, type F to connect 230V appliances.

European input plug

On smaller models, The power cable comes with a Schuko plug for easy connection to the power supply.

Delay feature

The SRG will delay returning power to the appliance for 6 seconds after a power failure or an exceeding input voltage above 260V.

Overload protection

The Bronson SRG is equipped with a circuit breaker in case the voltage stabilizer gets overloaded from the connected appliance(s).

Smart cooling

The Bronson SRG will cool automatically when overheating.

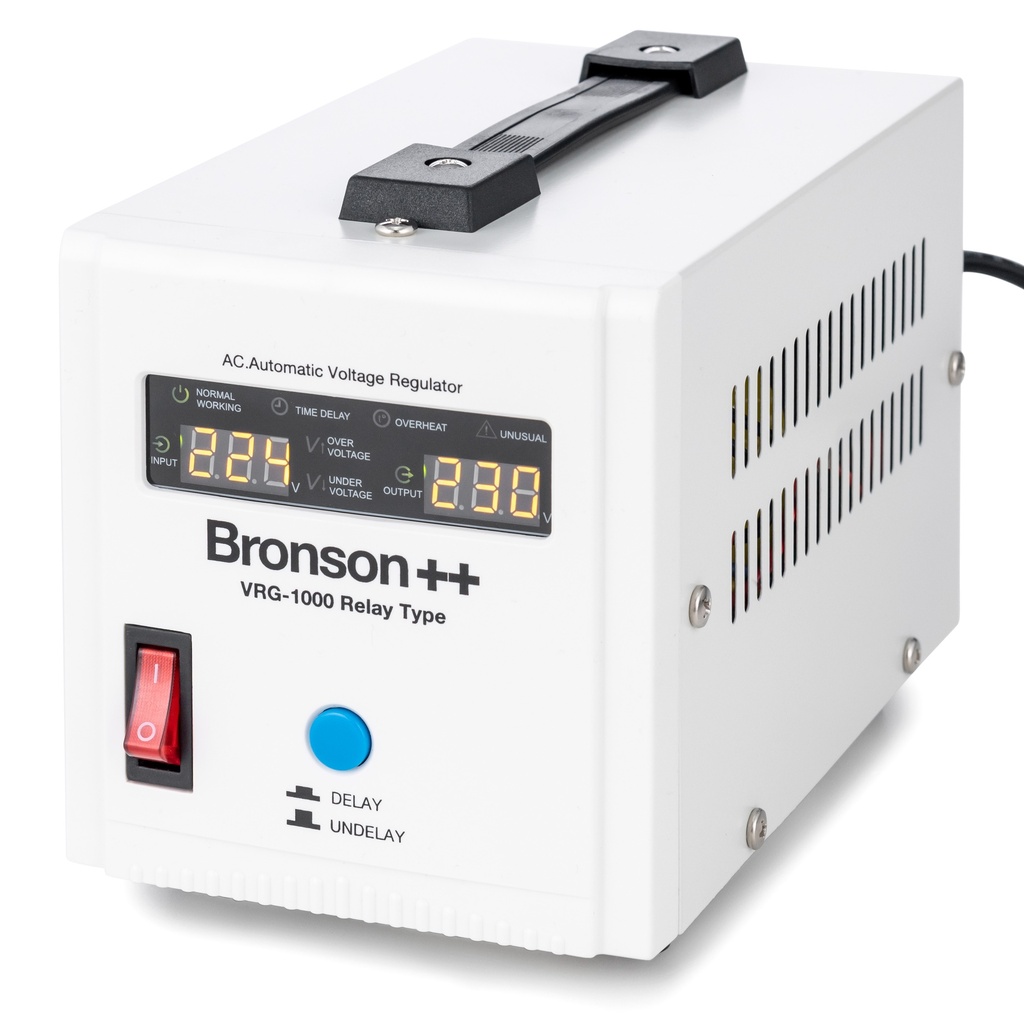

Status display

The LED display will show all relevant information of the VRG features.

• Input voltage

• Output voltage

• If it’s normally working

• If something is unusual

• Time delay

• Overheating

• Load percentage and overloading indication

• Over voltage

• Under voltage

Multiple output sockets

2x European sockets, type F to connect 230V appliances.

European input plug

On smaller models, the power cable comes with a Schuko plug for easy connection to the power supply.

Screw terminal

The bigger VRG models must connect the power supply to the screw terminal.

The output can be wired to the terminal as well.

Delay/Undelay feature

The delay time is how long the voltage stabilizer will elapse before restarting the connected appliance after a power failure or an exceeding input voltage above 260V.

Undelay: the VRG will return power to the appliance 6 seconds after the input voltage returns to its working range.

Delay: the VRG will return power to the appliance 180 seconds after the input voltage returns to its working range.

Overload protection

All the models are equipped with a circuit breaker in case the voltage stabilizer gets overloaded from the connected appliance(s).

Smart cooling

The bigger VRG models will cool automatically when overheating.

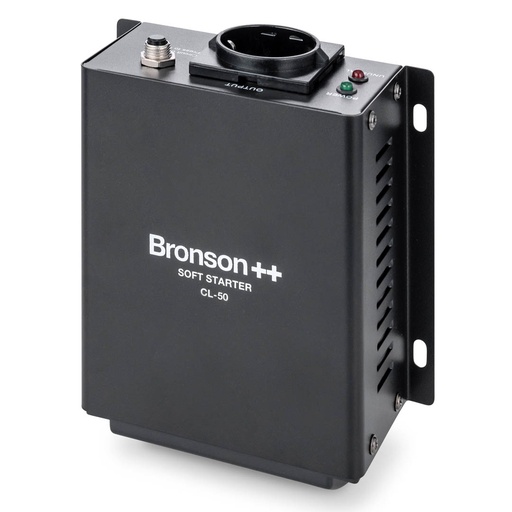

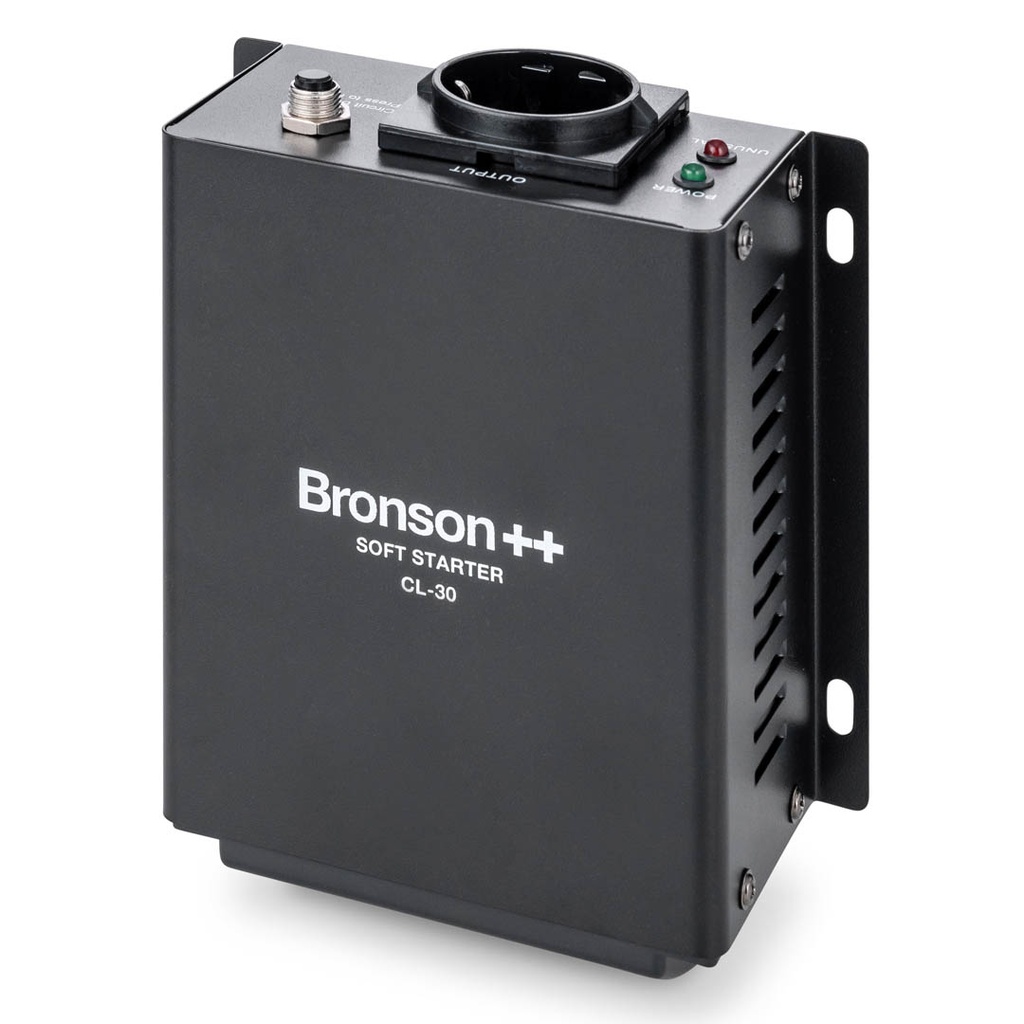

Rated output current

Available for loads up to 30A or 50A.

European output sockets

Easily connect 230V appliances up to 16A.

Screw terminal

The power supply must be connected to the screw terminal.

For outputs above 16A, the electrical equipment must be connected to the screw terminal as well.

Overload protection

All the models are equipped with circuit breakers in case the soft starter gets overloaded from the connected appliance(s). When this happens the red LED will lighten up.

Automatic switch-on

The Bronson CL will automatically switch on and the green LED will lighten up when an inrush current is detected.

Mounting rails

The Bronson CL can be mounted on walls, in cabinets, or directly on machinery.

Status display

The LED display will show all relevant information of the BPS features.

When working in battery mode the display will indicate the total battery capacity left. The total run time of the battery bank will depend on its size, as well as the power requirements of the load.

Other features displayed are:

• Input voltage

• Output voltage

• If it’s normally working

• If something is unusual

• Overheating

• Load percentage and overloading indication

• Over voltage

• Under voltage

• Battery mode and capacity


Multiple output sockets

2x European sockets, type F to connect 230V appliances.

European input plug

On smaller models, the power cable comes with a Schuko plug for easy connection to the power supply.

Battery connector cables

Black (-) and red (+) cable for direct connection to the battery bank.

Screw terminal

The bigger BPS model must connect the power supply to the screw terminal.

The output can be wired to the terminal as well.

Output ON/OFF button

Control when the BPS should supply power to the connected equipment (through the electrical grid or battery bank) or when to charge the battery.

Overload protection

All the models are equipped with a circuit breaker in case the BPS gets overloaded from the connected appliance(s).

Smart cooling

The bigger BPS models will cool automatically when overheating.
