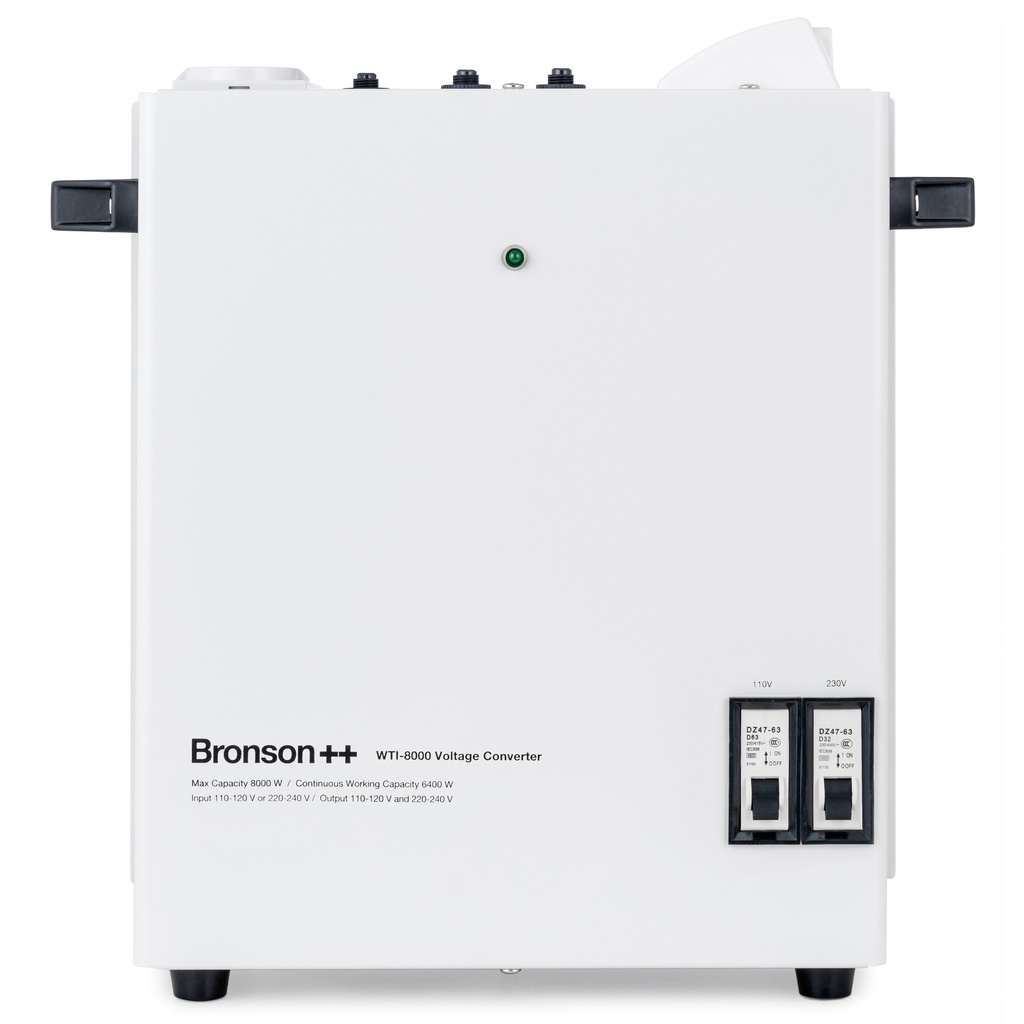

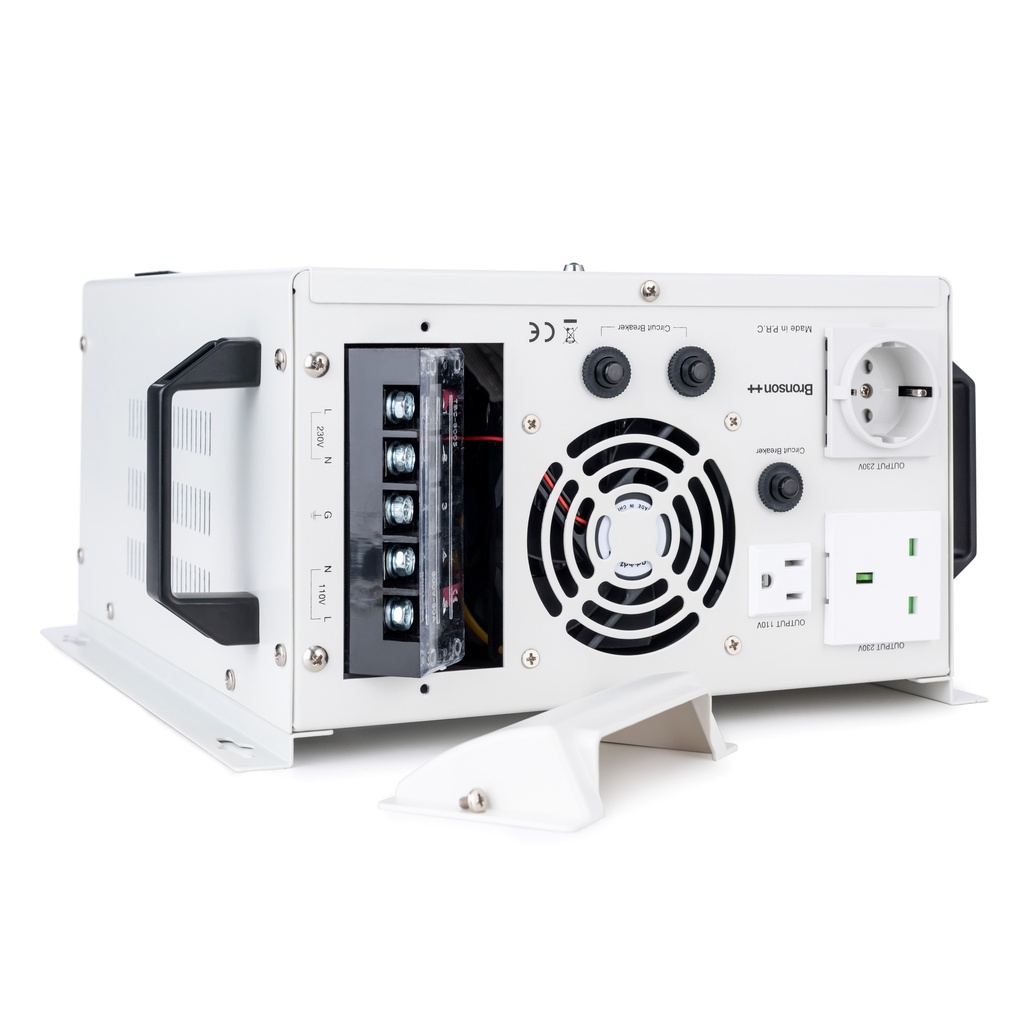

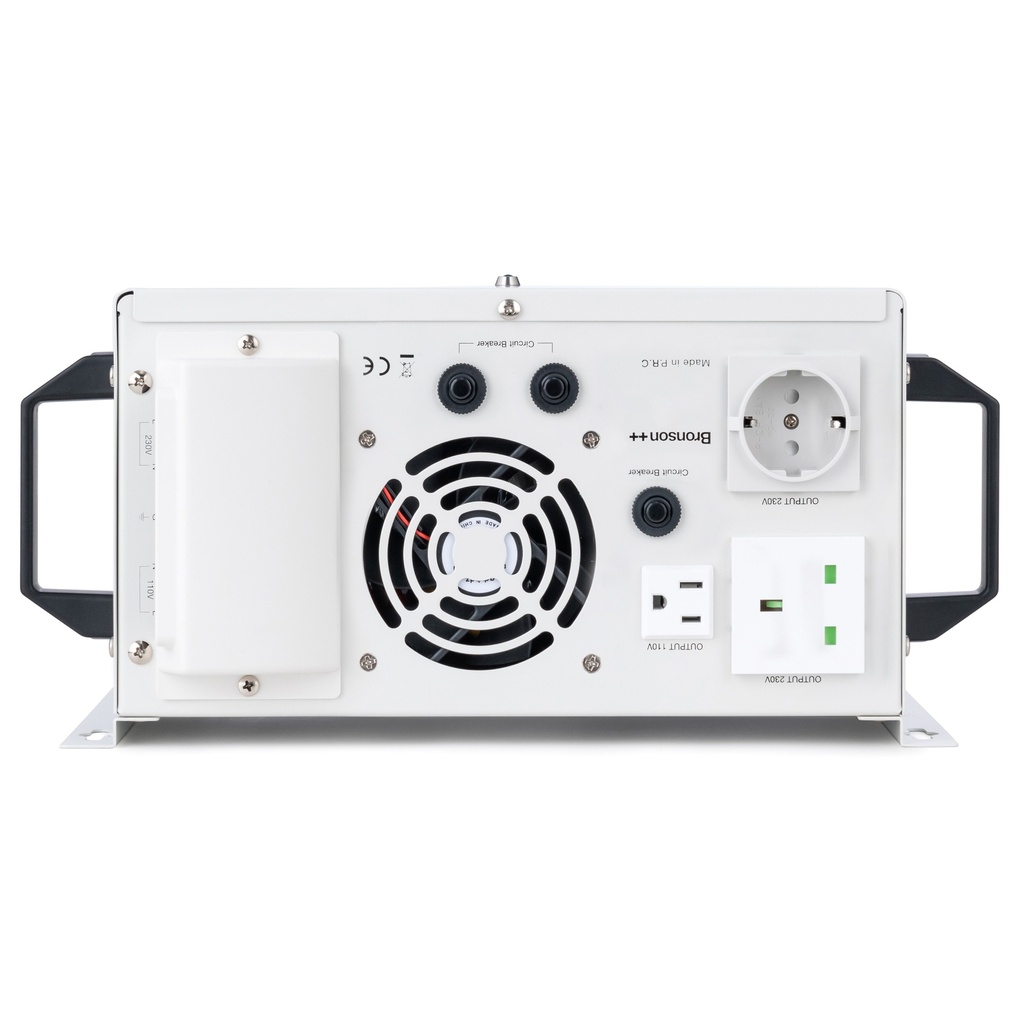

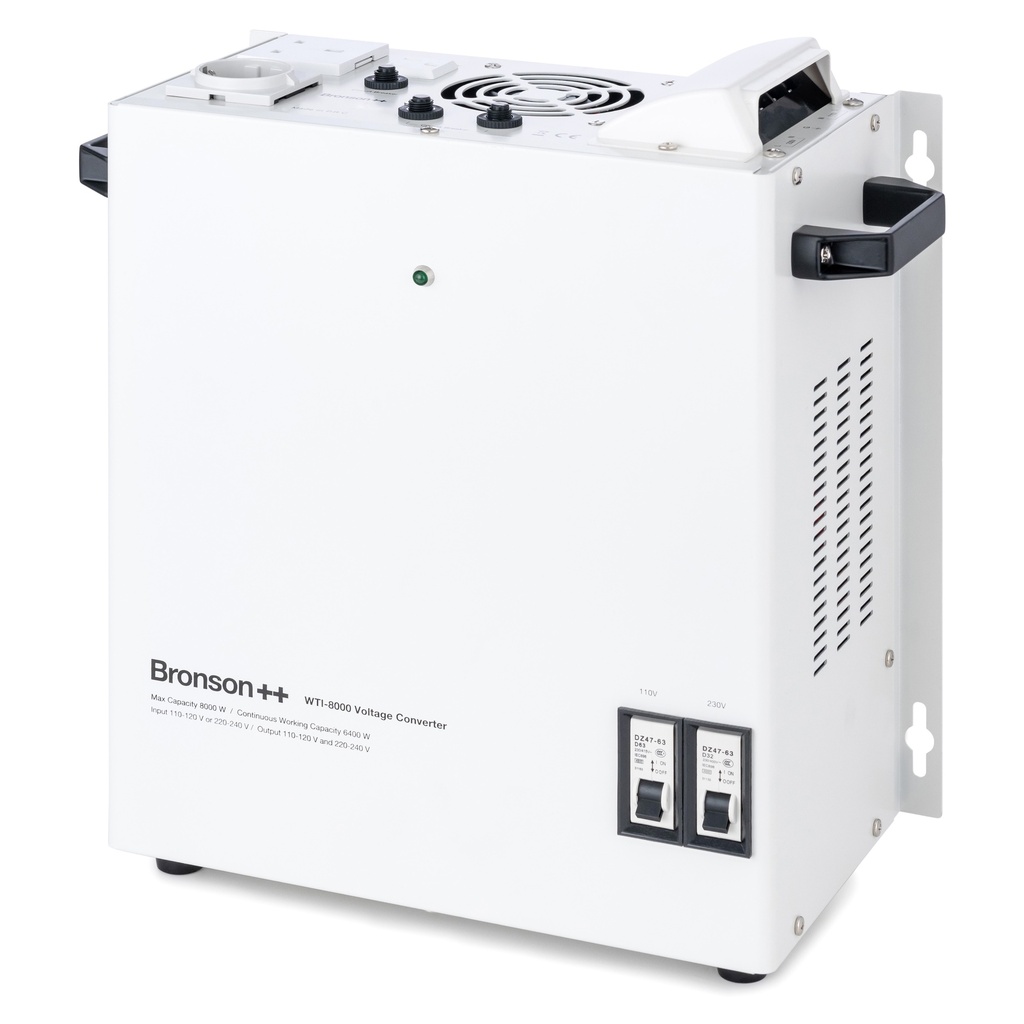

Bronson WTI 8000

https://www.bronson-energy.com/web/image/product.template/110/image_1920?unique=f03156f

8000 Watts - Peak Power Output
6400 Watts - Continuous Output

The Bronson WTI converts voltage both up (from 110V to 230V) and down (from 230V to 110V) enabling the use of heavy-duty appliances all over the world.


  • Max. capacity: 8000W

  • Continuous capacity: 6400W (when operating longer than 15 min.)

  • Input: 110V or 230V (via screw terminal)

  • Output: 110V or 230V (via screw terminal or sockets: EU, UK, US)

  • Transmission efficiency: 98%

439.00 € 439.0 EUR 439.00 €

439.00 лв

Not Available For Sale

  • Condition

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification
Maximum Power 8000W
Continuous Power 6400W (when operating longer than 15 min)
Input Voltage 100 - 120V AC or 200 - 240V AC
Input Connection Screw terminal
Output Voltage 100 - 120V AC (corresponds to half the input voltage)
200 - 240V AC (corresponds to twice the input voltage)
Output Connection American Type B (110V)
Schuko Type F (230V)
British Type G (230V)
Screw Terminal (110V or 230V)
Transformer Type Toroidal core
Efficiency 98%
Phase Single phase
Wave form Sine wave, no distortion
Display Green LED to indicate "Power on"
Soft Start No
Galvanic Isolation No
Overcurrent Protection Circuit breaker: 63A, 110V and 32A, 230V
Short Circuit Protection 15A, 230V (max. power per socket 3450W)
15A, 110V (max. power per socket 1650W)
Overheat Protection Automatic shutdown at core temperatures above 130 °C
Frequency 50/60 Hz
Product Dimensions (H x L x W) 15.7 x 33.8 x 29.2 cm
Weight 20.2 kg
Product Dimensions Shematic
Specification wti-3000
Bronson WTI 3000 		wti-5000
Bronson WTI 5000 		wti-6000
Bronson WTI 6000 		wti-8000
Bronson WTI 8000 		wti-10000
Bronson WTI 10000
Maximum Power 3000W 5000W 6000W 8000W 10000W
Continuous Power 2400W (when operating longer than 15 min) 4000W (when operating longer than 15 min) 4800W (when operating longer than 15 min) 6400W (when operating longer than 15 min) 8000W (when operating longer than 15 min)
Input Voltage 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC
Input Connection Screw terminal Screw terminal Screw terminal Screw terminal Screw terminal
Output Voltage 100 - 120V AC (corresponds to half the input voltage)
200 - 240V AC (corresponds to twice the input voltage)		 100 - 120V AC (corresponds to half the input voltage)
200 - 240V AC (corresponds to twice the input voltage)		 100 - 120V AC (corresponds to half the input voltage)
200 - 240V AC (corresponds to twice the input voltage)		 100 - 120V AC (corresponds to half the input voltage)
200 - 240V AC (corresponds to twice the input voltage)		 100 - 120V AC (corresponds to half the input voltage)
200 - 240V AC (corresponds to twice the input voltage)
Output Connection American Type B (110V)
Schuko Type F (230V)
British Type G (230V)
Screw Terminal (110V or 230V)		 American Type B (110V)
Schuko Type F (230V)
British Type G (230V)
Screw Terminal (110V or 230V)		 American Type B (110V)
Schuko Type F (230V)
British Type G (230V)
Screw Terminal (110V or 230V)		 American Type B (110V)
Schuko Type F (230V)
British Type G (230V)
Screw Terminal (110V or 230V)		 American Type B (110V)
Schuko Type F (230V)
British Type G (230V)
Screw Terminal (110V or 230V)
Transformer Type Toroidal core Toroidal core Toroidal core Toroidal core Toroidal core
Efficiency 98% 98% 98% 98% 98%
Phase Single phase Single phase Single phase Single phase Single phase
Wave form Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion
Display Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on"
Soft Start Yes, only for 230V Yes, only for 230V No No No
Galvanic Isolation No No No No No
Overcurrent Protection Circuit breaker: 25A, 110V and 16A, 230V Circuit breaker: 40A, 110V and 20A, 230V Circuit breaker: 50A, 110V and 25A, 230V Circuit breaker: 63A, 110V and 32A, 230V Circuit breaker: 2x 40A, 110V and 40A, 230V
Short Circuit Protection 15A, 230V (max. power per socket 3450W)
15A, 110V (max. power per socket 1650W)		 15A, 230V (max. power per socket 3450W)
15A, 110V (max. power per socket 1650W)		 15A, 230V (max. power per socket 3450W)
15A, 110V (max. power per socket 1650W)		 15A, 230V (max. power per socket 3450W)
15A, 110V (max. power per socket 1650W)		 15A, 230V (max. power per socket 3450W)
15A, 110V (max. power per socket 1650W)
Overheat Protection Automatic shutdown at core temperatures above 130 °C Automatic shutdown at core temperatures above 130 °C Automatic shutdown at core temperatures above 130 °C Automatic shutdown at core temperatures above 130 °C Automatic shutdown at core temperatures above 130 °C
Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Product Dimensions (H x L x W) 15.7 x 31.2 x 27.2 cm 15.7 x 31.2 x 27.2 cm 15.7 x 33.8 x 29.2 cm 15.7 x 33.8 x 29.2 cm 15.7 x 33.8 x 29.2 cm
Weight 11.6 kg 14.0 kg 17.9 kg 20.2 kg 22.4 kg
