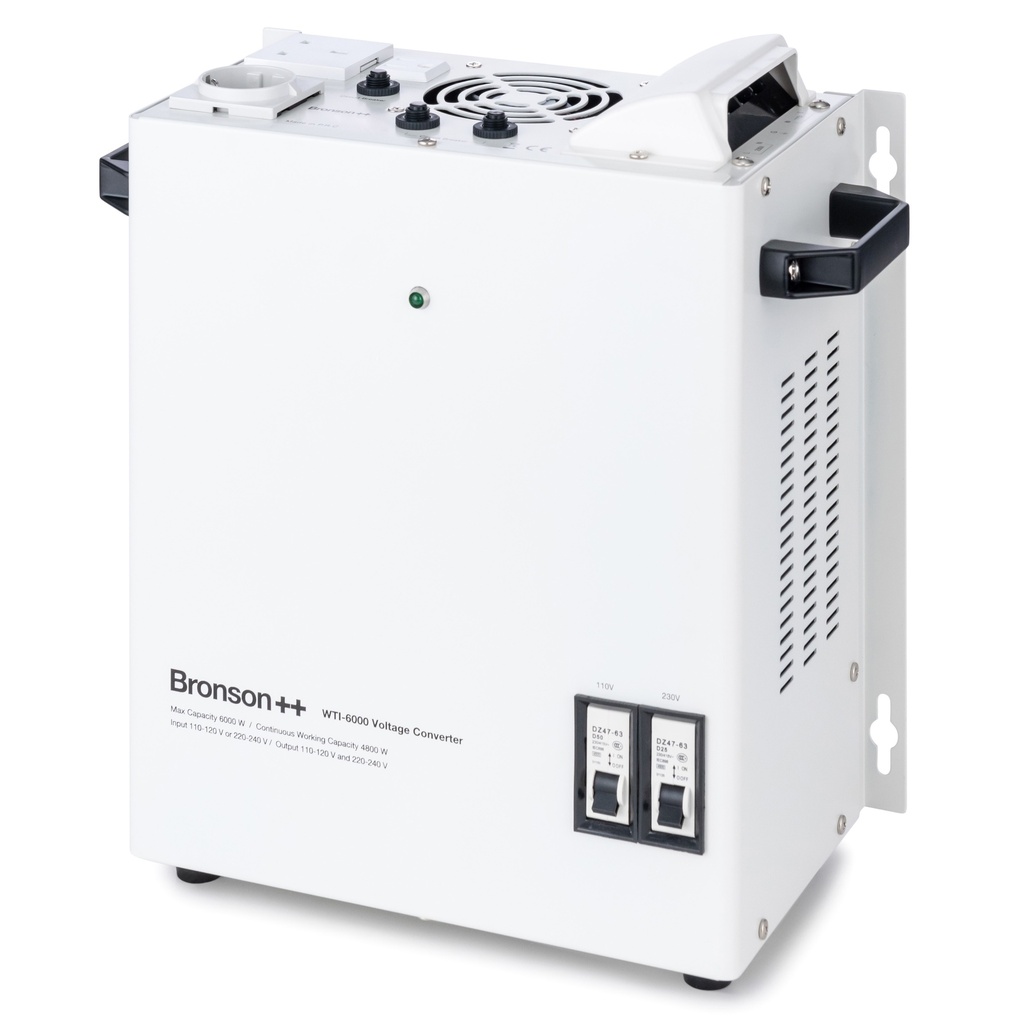

Bronson WTI 6000

The Bronson WTI 6000 is a heavy-duty wall-mounted voltage converter — designed for industrial machinery and professional equipment that requires continuous high-power voltage conversion.

Max. 6000W / Continuous 4800W — suitable for CNC machines, compressors, pumps and professional power tools
Converts both ways — 110V to 230V and 230V to 110V
Wall mountable — permanent installation for workshops, factories and industrial facilities
Screw terminals + universal sockets — EU (Schuko), UK (Type G) and US (Type B)
Ideal for — workshops, manufacturing facilities and businesses running American or European machinery

Condition
- NEW
- USED

318.47 € 379.00 €

Excl. Shipping
Shipping: 10-20 Business days
30-Day Money-Back Guarantee

Add to cart Buy now

Quantity:

Bronson WTI 6000 — Industrial Transformer

Wall-mount 6000W industrial converter 110V↔230V for workshops and industry. 4800W continuous, bidirectional, toroidal.

6000W Converter, 4800W Continuous Power

The WTI 6000 delivers 4800 watts continuous and up to 6000 watts maximum. It powers high-draw device classes such as industrial machines, compressors and professional power tools on 110V or 230V.

Bidirectional 110V↔230V, Pure Sine Wave

The converter works both ways: 110 volts to 230 volts and 230 volts to 110 volts. The pure sine wave feeds voltage-sensitive electronics without distortion.

Schuko, UK Type G, US Type B + Terminal

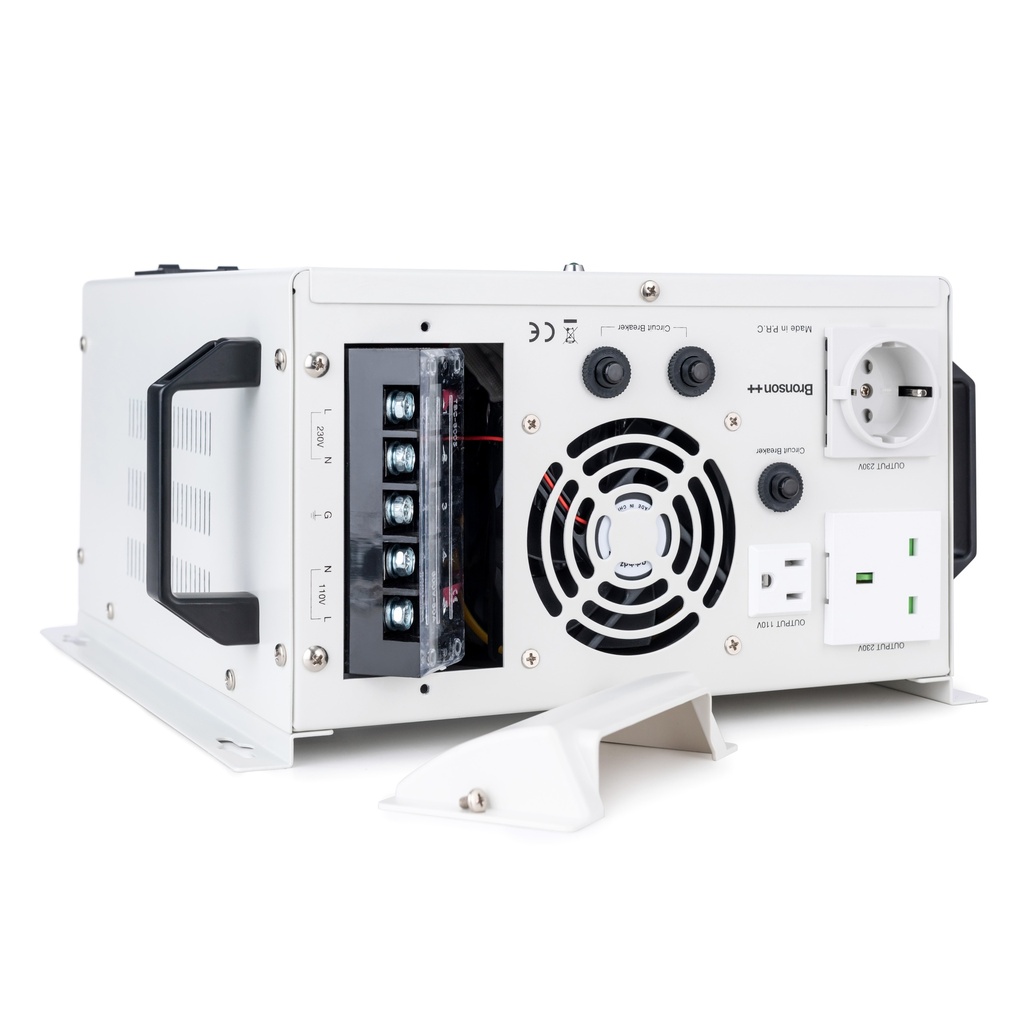

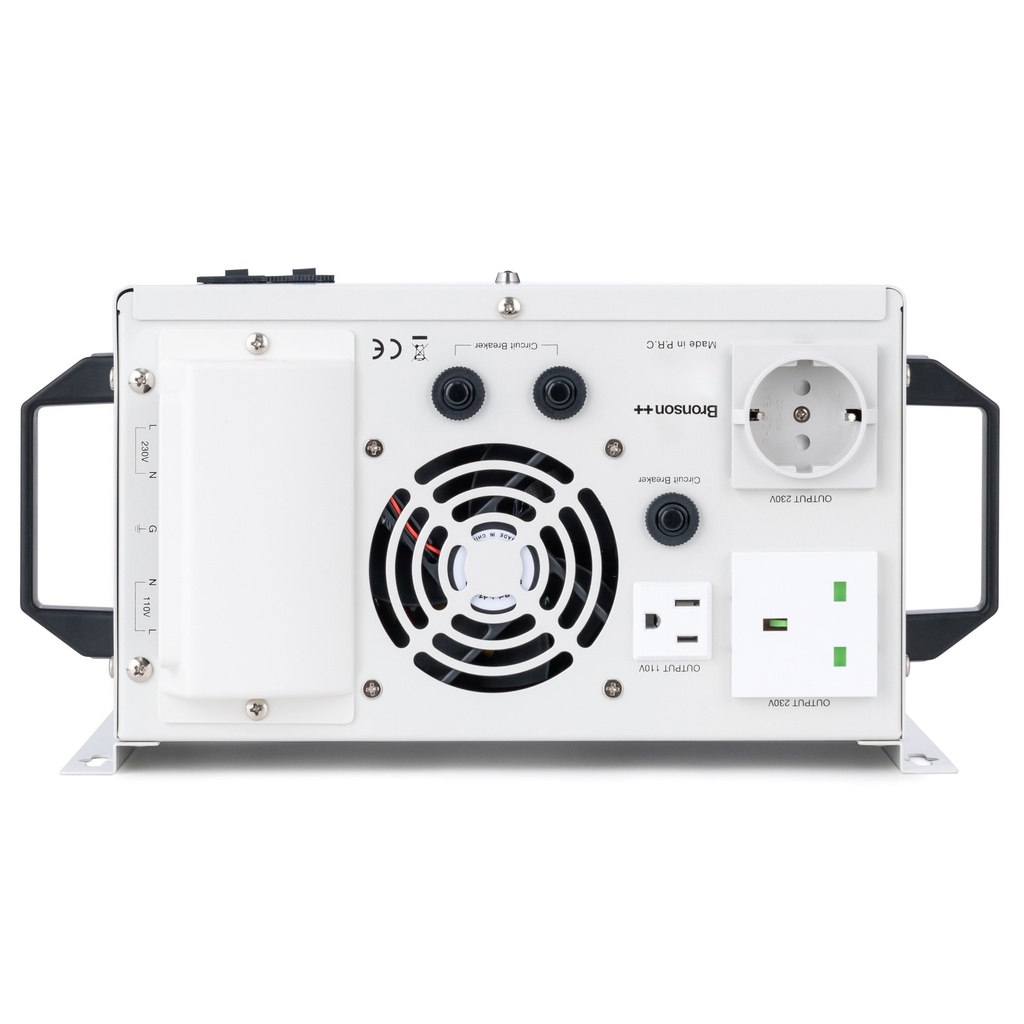

The outputs provide Schuko (Type F), UK Type G and US Type B. Input and output have screw terminals for permanent wiring into installations.

Use case 01

Full-Size RV

110V↔230V for full-size RVs traveling to the US and back

Use case 02

Studio Setup

Full-size studio equipment running on 230V in Europe

Use case 03

110V Circuit at Home

A fixed 110V circuit for US devices at home

Frequently asked questions

Does the WTI 6000 have a built-in soft-start?

No. The WTI 6000 has no built-in soft-start.

Bronson offers the CL series as a separate inrush limiter. The large toroidal core draws high current briefly at switch-on, which can otherwise trip the upstream breaker.

Is a 16 A upstream breaker enough for the WTI 6000?

No. 16 A is not enough for full load — the 230V side has a 25 A circuit breaker.

Provide at least 25 A on the building circuit. With less, the WTI 6000 runs at reduced load only.

Is the WTI 6000 suitable for sensitive studio equipment?

Yes. The pure sine wave feeds studio equipment without distortion.

It has no galvanic isolation, though. Against ground-loop hum an isolation transformer (Bronson TT) is the right addition.

Can I use the WTI 6000 in a full-size RV on US trips?

Yes. The WTI 6000 works both ways — 110 V from the US supply to a 230 V system and back.

It is wall-mountable and hardwires via screw terminal; 4800 W continuous covers larger onboard loads.

Our technology.

Wall-Mount for Industrial Installation

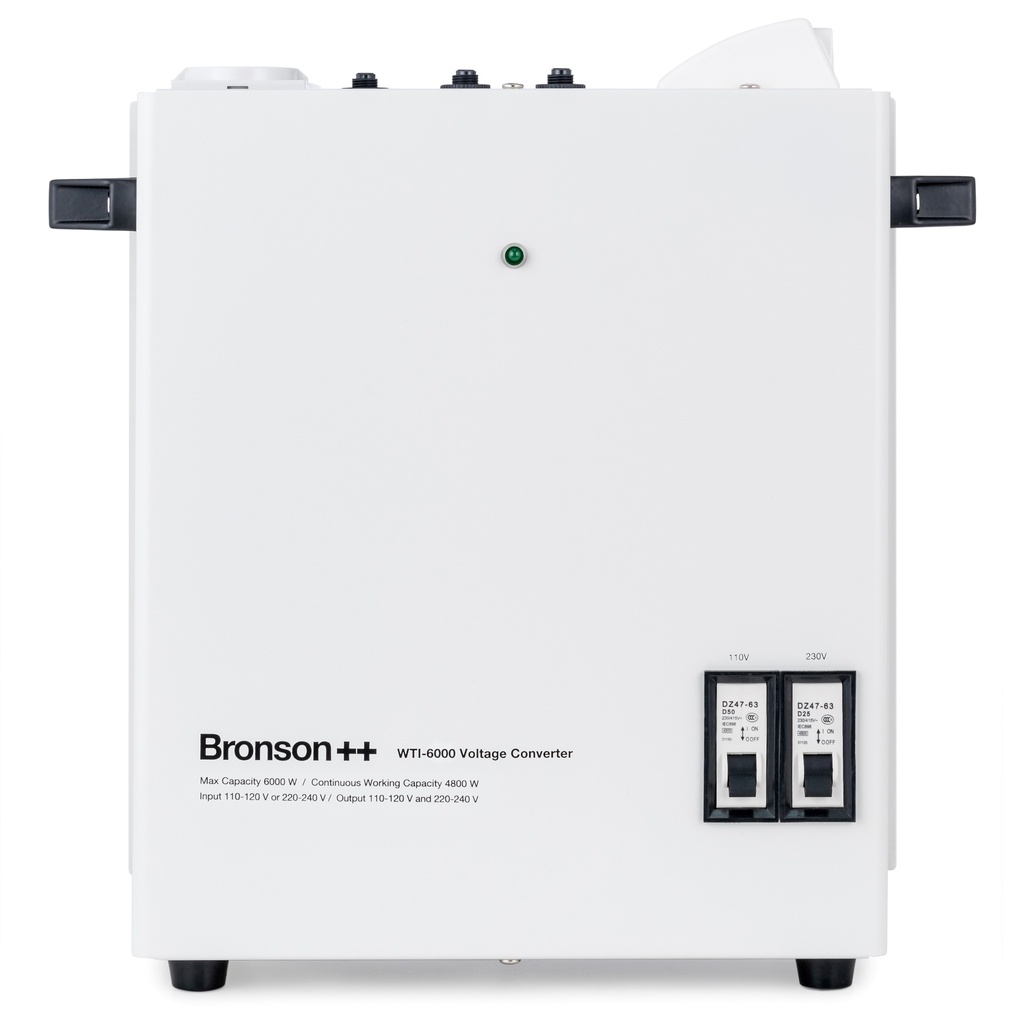

The WTI 6000 sits in a rugged wall-mountable steel enclosure (17.9 kg) and bolts down as a fixed installation. It stays mounted on a workshop or plant wall and frees up floor space at the machine.

Input and Output Protection

The WTI 6000 is protected at the input by the resettable circuit breaker (50 A/110 V, 25 A/230 V) and at each output by 15 A short-circuit protection. On overload or a short circuit the relevant protection trips — device protection without extra wiring, and the breaker resets after a trip.

	WTI 3000 3000W	WTI 5000 5000W	WTI 6000 6000W	WTI 8000 8000W	WTI 10000 10000W
Continuous power	2400W	4000W	4800W	6400W	8000W
Input voltage	100–120V or 200–240V AC
Output voltage	100–120V & 200–240V AC (half or double the input)
Input connection	Screw terminal
Output sockets	US Type B (110V) · Schuko F (230V) · UK Type G (230V) · Screw terminal
Overcurrent protection	Breaker 16A/25A	Breaker 20A/40A	Breaker 25A/50A	Breaker 32A/63A	Breaker 40A / 2×40A
Per-socket protection	Breaker 15A — max 3450W/socket (230V), 1650W/socket (110V)
Soft start	230V only	230V only	—	—	—
Galvanic isolation	No (step-up/step-down converter)
Overheat protection	Automatic shutdown above 130 °C core temperature
Efficiency	98% · Toroidal core · Pure sine wave
Dimensions (H×L×W cm)	15.7×31.2×27.2	15.7×31.2×27.2	15.7×33.8×29.2	15.7×33.8×29.2	15.7×33.8×29.2
Weight	11.6 kg	14.0 kg	17.9 kg	20.2 kg	22.4 kg
