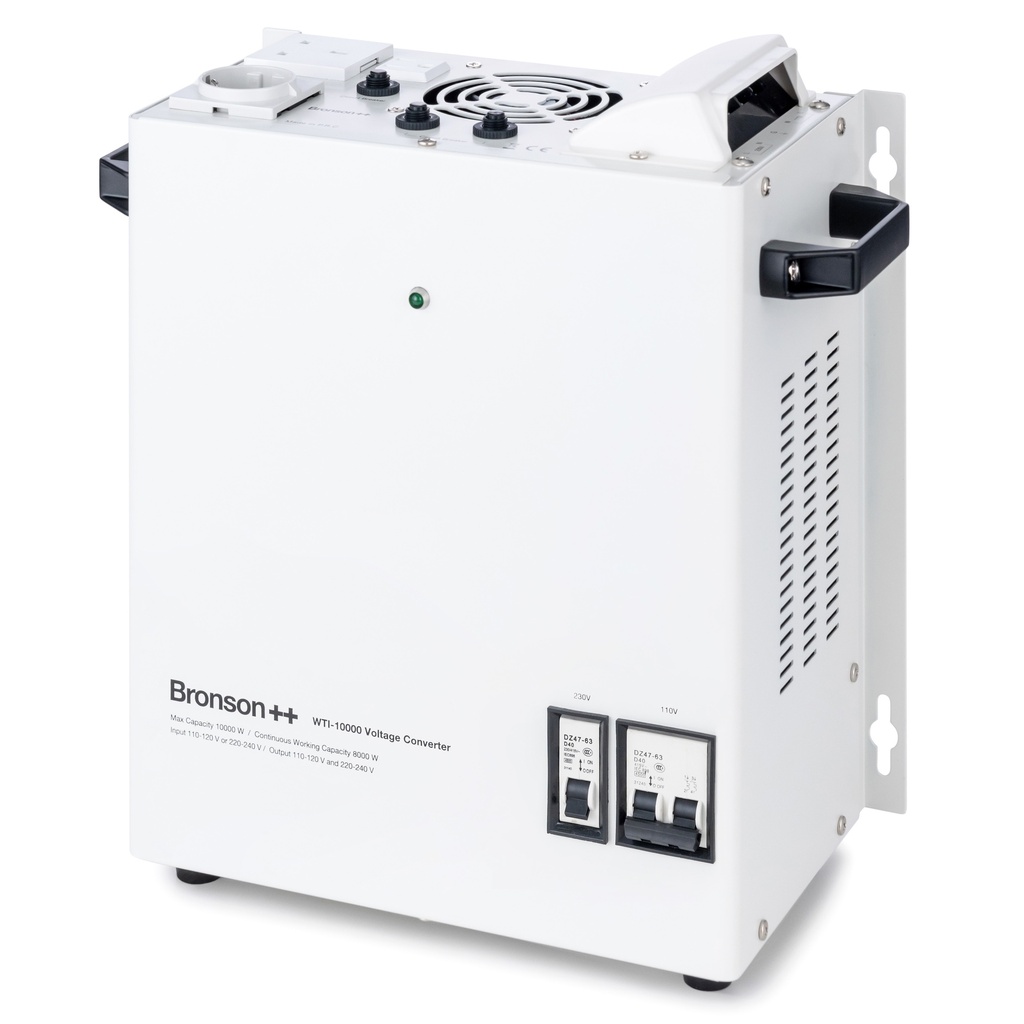

Bronson WTI 10000

The Bronson WTI 10000 is a premium wall-mounted voltage converter for heavy industry — the most powerful in the WTI range, built for continuous operation under high load.

Max. 10000W / Continuous 8000W — suitable for heavy industrial machinery, large production equipment and multi-machine setups
Converts both ways — 110V to 230V and 230V to 110V
Wall mountable — engineered for permanent heavy-duty installation in industrial facilities
Screw terminals + universal sockets — EU (Schuko), UK (Type G) and US (Type B)
Ideal for — heavy industry, large manufacturing plants and professional facilities running high-power foreign equipment

Condition
- NEW
- USED

427.71 € 509.00 €

Excl. Shipping
Shipping: 10-20 Business days
30-Day Money-Back Guarantee

Add to cart Buy now

Quantity:

Out of Stock

Get notified when back in stock

Not sure what converter to buy?

Answer 3 questions and get a model recommendation, instantly.

Find the right converter →

Bronson WTI 10000 — Industrial Transformer

Wall-mount 10000W heavy-duty converter 110V↔230V for heavy industry. 8000W continuous, bidirectional, toroidal.

10000W Converter, 8000W Continuous Power

The WTI 10000 delivers 8000 watts continuous and up to 10000 watts maximum. It powers heavy device classes such as large production machines and multi-machine setups on 110V or 230V.

Bidirectional 110V↔230V, Pure Sine Wave

The converter works both ways: 110 volts to 230 volts and 230 volts to 110 volts. The pure sine wave feeds voltage-sensitive electronics without distortion.

Schuko, UK Type G, US Type B + Terminal

The outputs provide Schuko (Type F), UK Type G and US Type B. Input and output have screw terminals for permanent wiring into installations.

Use case 01

Motorhome with AC

Motorhomes with heavy loads like AC, traveling US↔EU

Use case 02

Marine Use

Powering heavy US loads aboard smaller vessels

Use case 03

110V Circuit at Home

A fixed 110V circuit for US devices at home

Frequently asked questions

Does the WTI 10000 need a separate soft-start?

Yes. The WTI 10000 has no built-in soft-start; for the 10 kW toroidal the Bronson CL series is recommended.

Inrush on a 10 kW transformer is high and will otherwise trip the upstream circuit. The separate soft-start limits it.

Does the WTI 10000 need a 40 A upstream breaker?

Yes. The WTI 10000 is designed for 40 A on the 230V side.

Its built-in breaker is 40 A at 230V and 2× 40 A at 110V. A 32 A circuit only covers the WTI 8000.

Can the WTI 10000 regulate an over-voltage like 253 V down?

No. The WTI 10000 is a fixed voltage converter, not a voltage stabilizer.

It converts at a fixed ratio (110↔230); line swings such as 253 V pass through proportionally. Stabilizing needs a dedicated voltage stabilizer.

Can I use the WTI 10000 aboard for heavy US loads?

Yes. Up to 8000 watts continuous, the WTI 10000 powers heavy US loads, wall-mountable for fixed installation aboard.

It has no galvanic isolation; for onboard earth separation an isolation transformer (Bronson TT or MII) is the right addition.

Our technology.

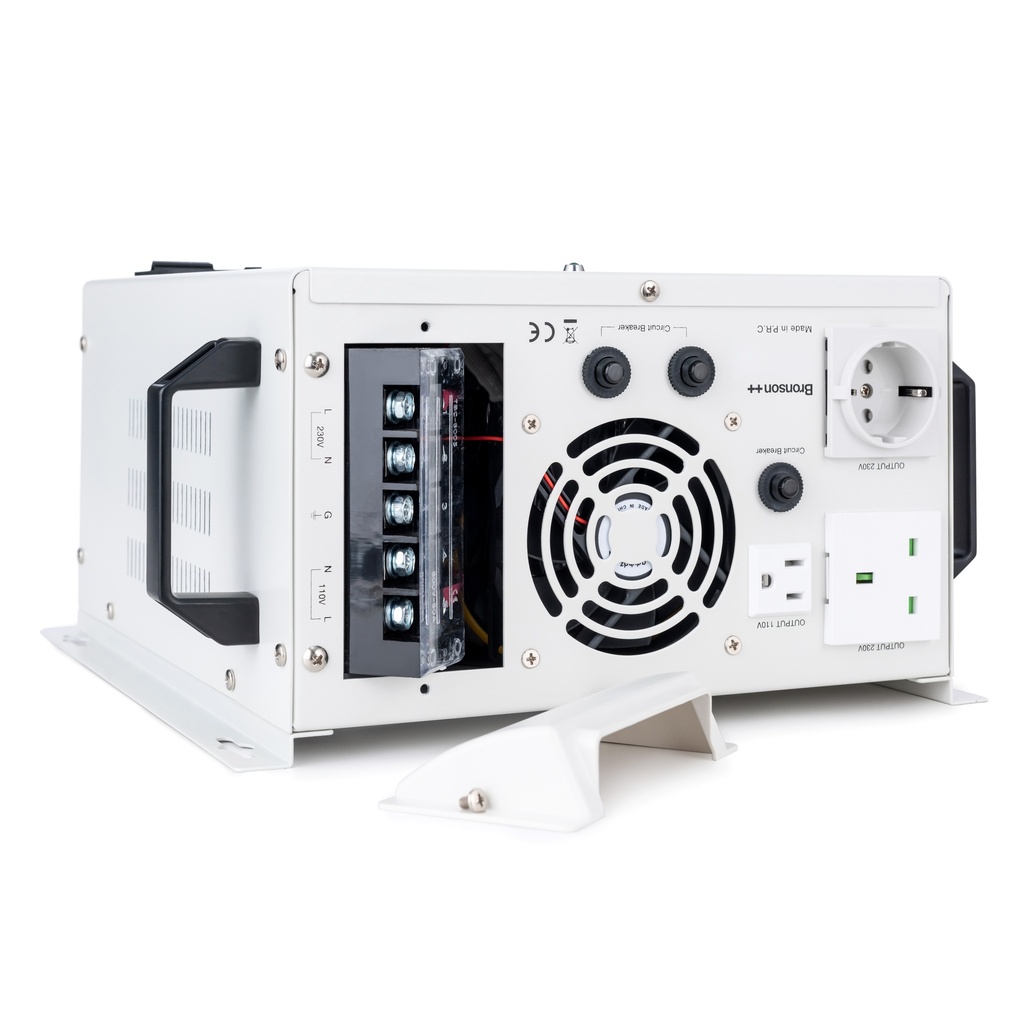

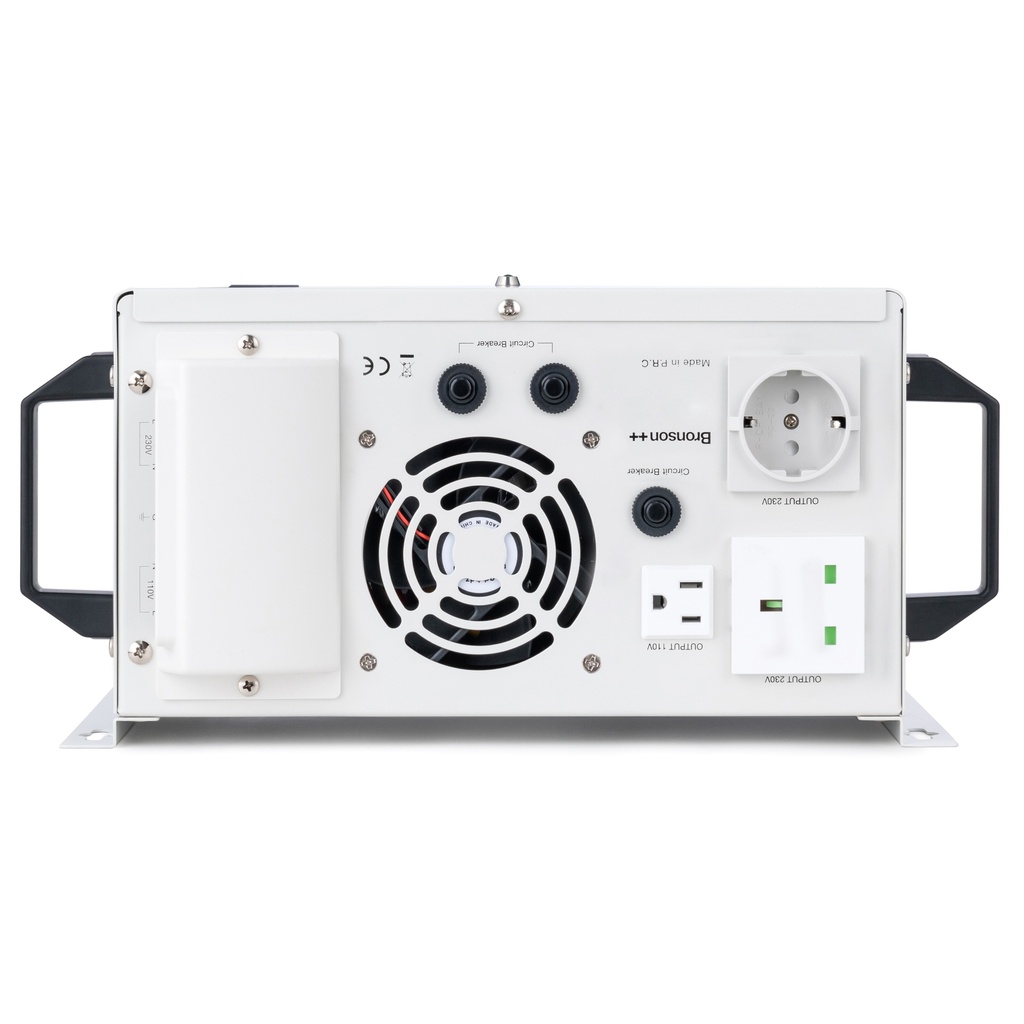

Screw Terminals + Multi-Region Outlets

The WTI 10000 has screw terminals on input and output plus Schuko, UK and US sockets. You hardwire it into the installation and supply mixed EU, UK and US equipment without an adapter chain.

Bidirectional 110V↔230V, Both Ways

The WTI 10000 converts both ways: 110 V to 230 V and 230 V to 110 V. One unit covers both cases — US machines on a 230 V supply and EU machines on 110 V — with no second converter.

	WTI 3000 3000W	WTI 5000 5000W	WTI 6000 6000W	WTI 8000 8000W	WTI 10000 10000W
Continuous power	2400W	4000W	4800W	6400W	8000W
Input voltage	100–120V or 200–240V AC
Output voltage	100–120V & 200–240V AC (half or double the input)
Input connection	Screw terminal
Output sockets	US Type B (110V) · Schuko F (230V) · UK Type G (230V) · Screw terminal
Overcurrent protection	Breaker 16A/25A	Breaker 20A/40A	Breaker 25A/50A	Breaker 32A/63A	Breaker 40A / 2×40A
Per-socket protection	Breaker 15A — max 3450W/socket (230V), 1650W/socket (110V)
Soft start	230V only	230V only	—	—	—
Galvanic isolation	No (step-up/step-down converter)
Overheat protection	Automatic shutdown above 130 °C core temperature
Efficiency	98% · Toroidal core · Pure sine wave
Dimensions (H×L×W cm)	15.7×31.2×27.2	15.7×31.2×27.2	15.7×33.8×29.2	15.7×33.8×29.2	15.7×33.8×29.2
Weight	11.6 kg	14.0 kg	17.9 kg	20.2 kg	22.4 kg
