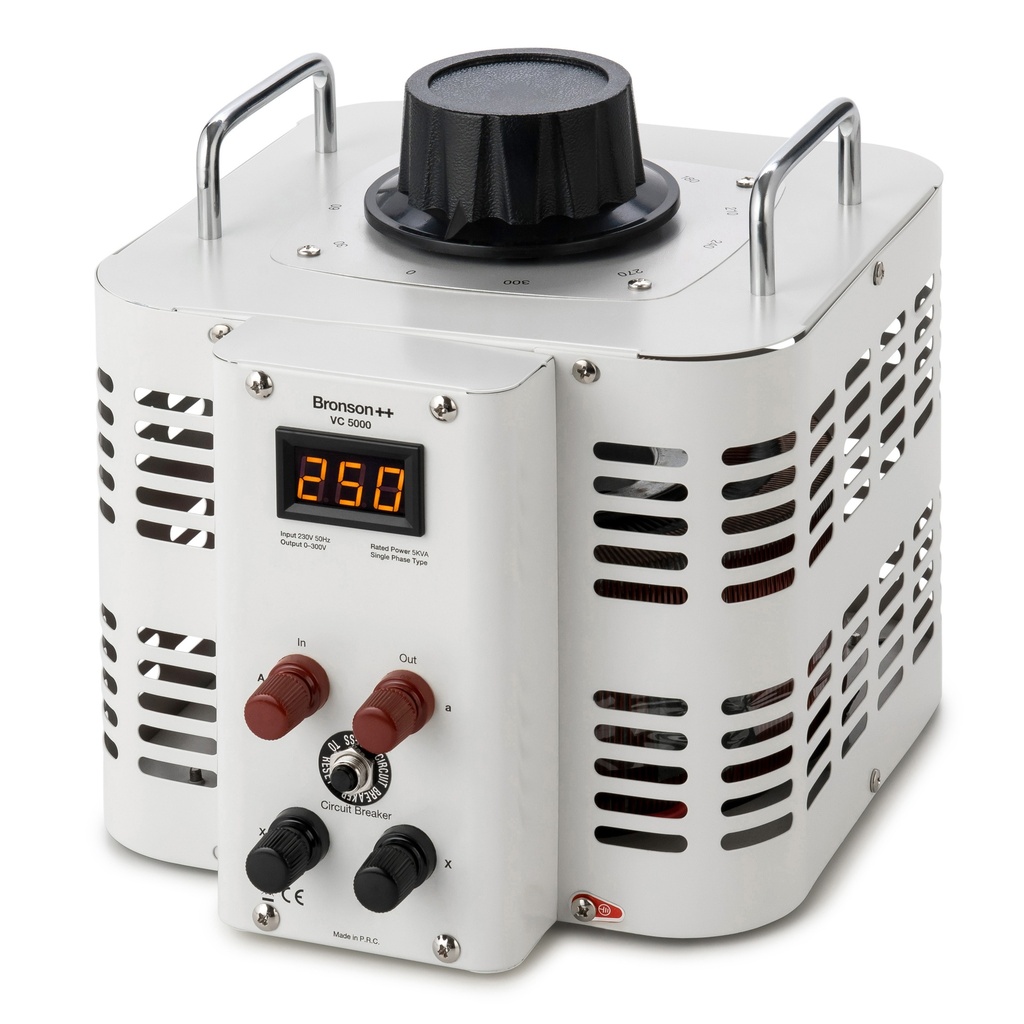

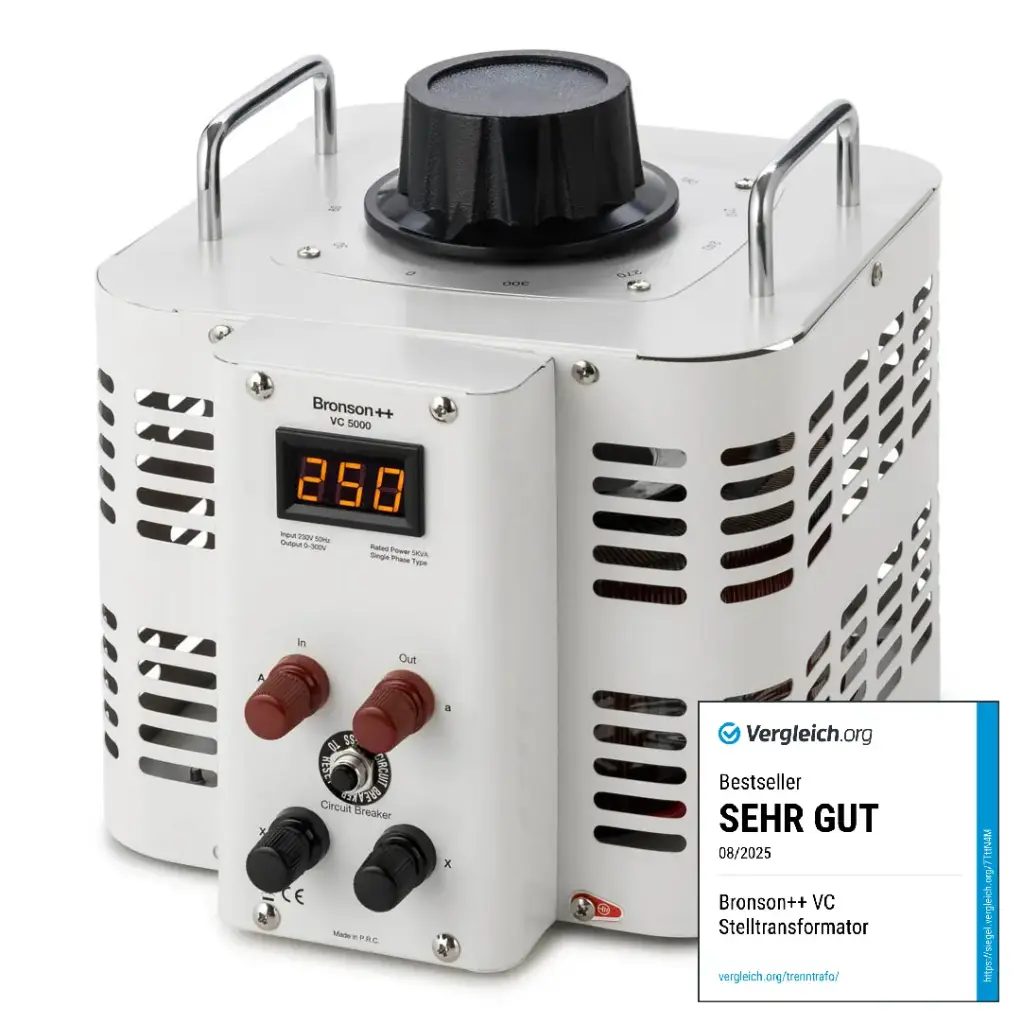

Bronson VC 5000

The Bronson VC 5000 is an industrial high-load variable transformer (Variac) for fixed test stations — built for hardwired integration via terminals and continuous load monitoring.

Max. 5000W / 20A — suited for high-draw loads in continuous testing
0–300V adjustable output — reproducible voltage profiles for load simulation and commissioning
Terminal output (up to 20A) — designed for permanent wiring in rigs, fixtures and panels
Built-in voltmeter — accurate control of the output voltage
Ideal for — industrial test benches, end-of-line testing, heating elements/load banks, fixed workshop stations

Condition
- NEW
- USED

268.06 € 319.00 €

Excl. Shipping
Shipping: 10-20 Business days
30-Day Money-Back Guarantee

Add to cart Buy now

Quantity:

Out of Stock

Get notified when back in stock

Bronson VC 5000 — Variac 0–300 V

Variable transformer for stationary test benches. 0–300 V stepless, up to 5000 W / 20 A, screw-terminal connection.

Up to 5000 W / 20 A for continuous test use

The Variac delivers up to 5000 W at 20 A — sized for high-draw loads on stationary test benches and industrial test environments.

230 V input, 0–300 V stepless output

From a 220–240 V line, the adjustable voltage regulator sets the output steplessly from 0 to 300 V — for reproducible voltage profiles in load tests and commissioning.

Screw-terminal connection up to 20 A

Input and output run through screw terminals rated to 20 A — for fixed installations, fixtures, and switchboard integration rather than plug-in swaps.

Use case 01

Laboratory setup

Reproducible voltage profiles on a stationary lab bench

Frequently asked questions

Is the VC 5000 connected via fixed screw terminals?

Yes. Input and output are screw terminals rated to 20 A, without a Schuko socket.

The VC 5000 is built for fixed installation in fixtures, test benches, and switchboards. Wire it in directly rather than swapping devices by plug.

Does the VC 5000 deliver the full 5000 W at 100 V?

No. The output current is limited to 20 A, so at 100 V that is about 2000 W.

Because the current is fixed-capped, usable power scales with voltage: the full 5000 W is available near the top of the range. Plan loads by current, not only by the 5000 W nameplate.

Is the VC 5000 suitable for stationary continuous test benches?

Yes. With 5000 W at 20 A, the VC 5000 is sized for laboratory and industrial test benches in continuous use.

Its fixed screw-terminal wiring and 17.5 kg build suit a permanent bench position for load tests and commissioning runs.

When should I choose the VC 5000 over the VC 3000?

Choose the VC 5000 from higher continuous loads: 5000 W at 20 A versus 3000 W at 12 A on the VC 3000.

The VC 5000 connects via screw terminals for fixed installation and weighs 17.5 kg for a stationary bench; the VC 3000 offers a Schuko output for changing test objects.

Our technology.

Screw terminals for fixed installation

Input and output on the VC 5000 use screw terminals rated to 20 A / 5000 W. This suits fixed wiring in fixtures, test benches, and switchboards — a permanent connection for continuous operation instead of plug-in swaps.

Toroidal core with copper winding

The VC 5000 runs on a toroidal core with copper winding, sized for 5000 W at 20 A. The design holds efficiency at ≥ 90 % and keeps loss heat low under continuous load — suited to stationary test benches.

	VC 1000 1000W	VC 3000 3000W	VC 5000 5000W	VC 10000 10000W
Maximum current	4A	12A	20A	40A
Input voltage	220–240V AC
Output voltage	0–300V AC (continuously adjustable)
Input connection	Schuko Type F		Screw terminal
Output connection	Schuko F · Screw terminal		Screw terminal
Overcurrent protection	Breaker 4A	Breaker 12A	Breaker 20A	—
Short circuit protection	No
Overheat protection	No
Soft start	No
Galvanic isolation	No
Display	Digital voltmeter — lights on load, shows output voltage
Efficiency	≥90% · Single phase · 50/60 Hz
Dimensions (H×L×W cm)	12.8×22.3×17.3	16×22.3×17.3	18.5×27.7×23.7	25×40.5×33.7
Weight	6.3 kg	9.3 kg	17.5 kg	20.8 kg
