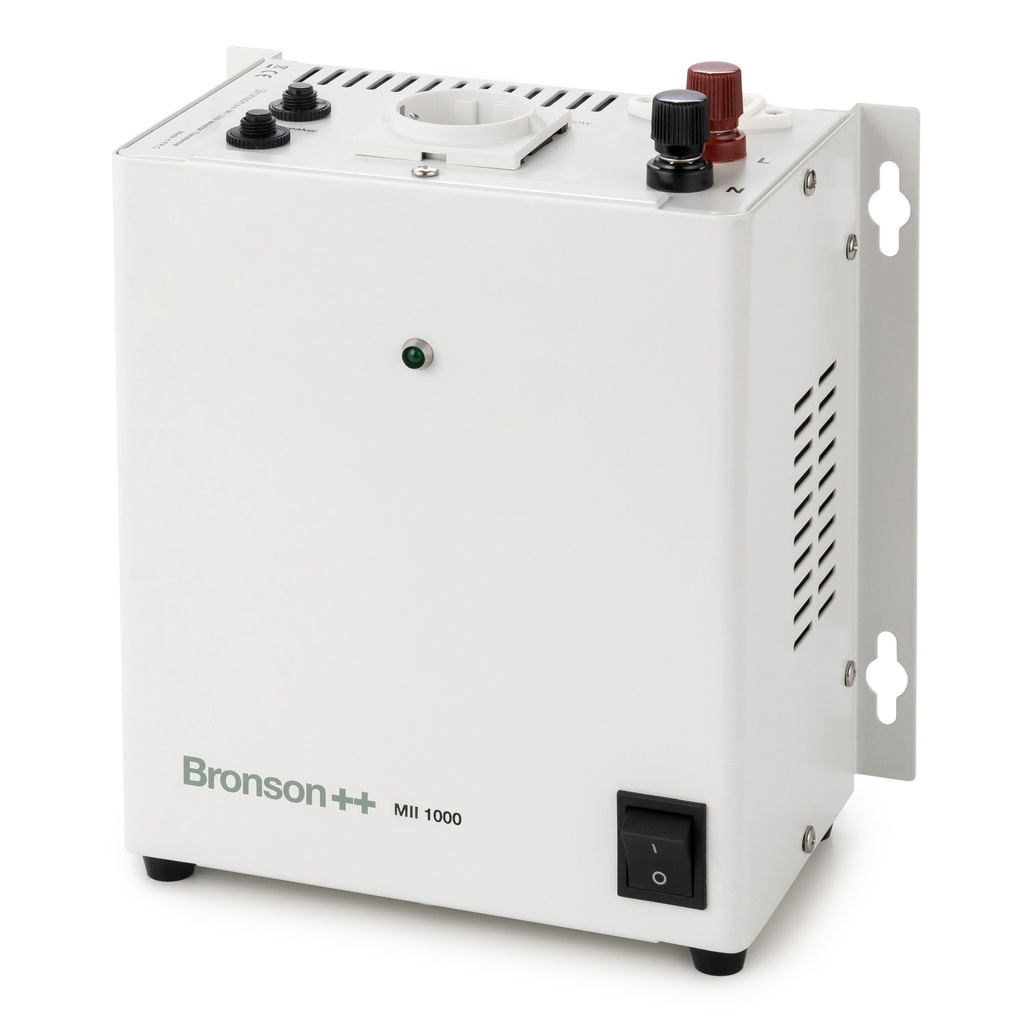

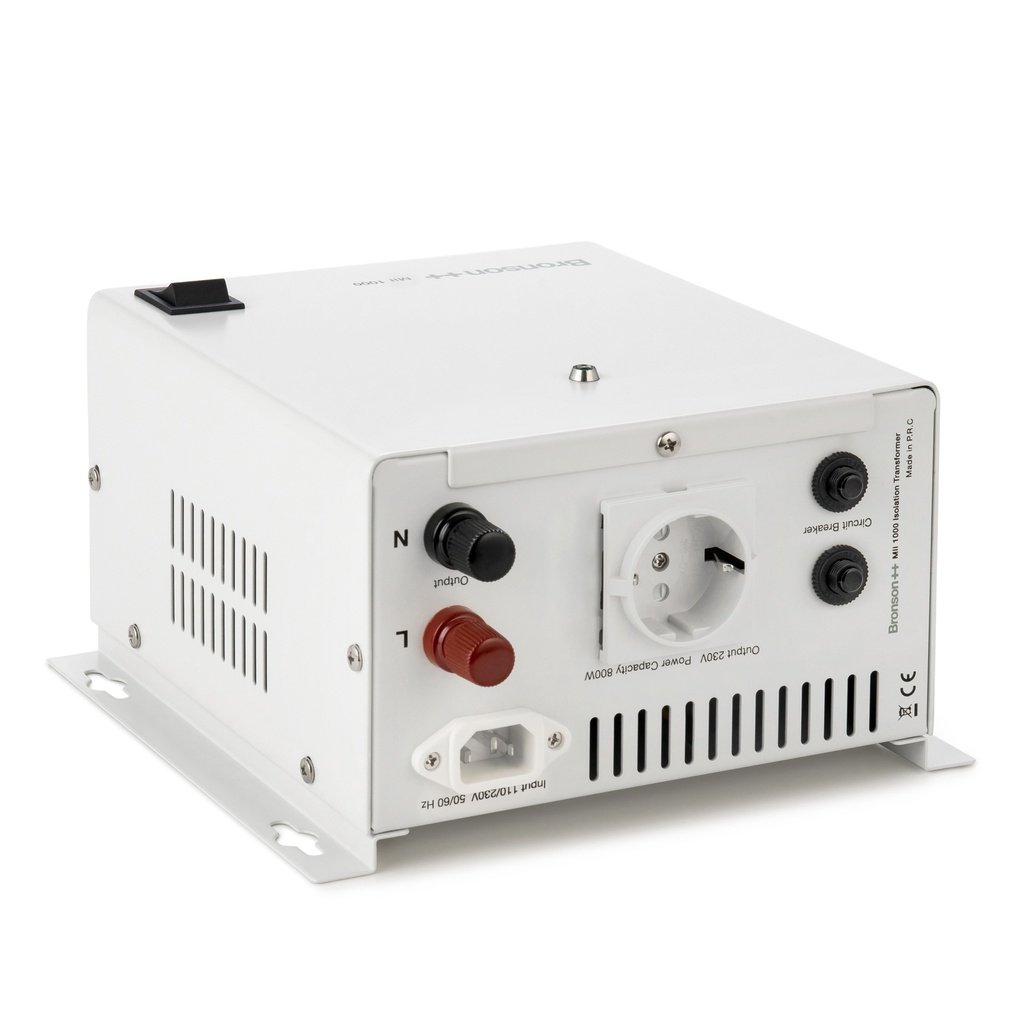

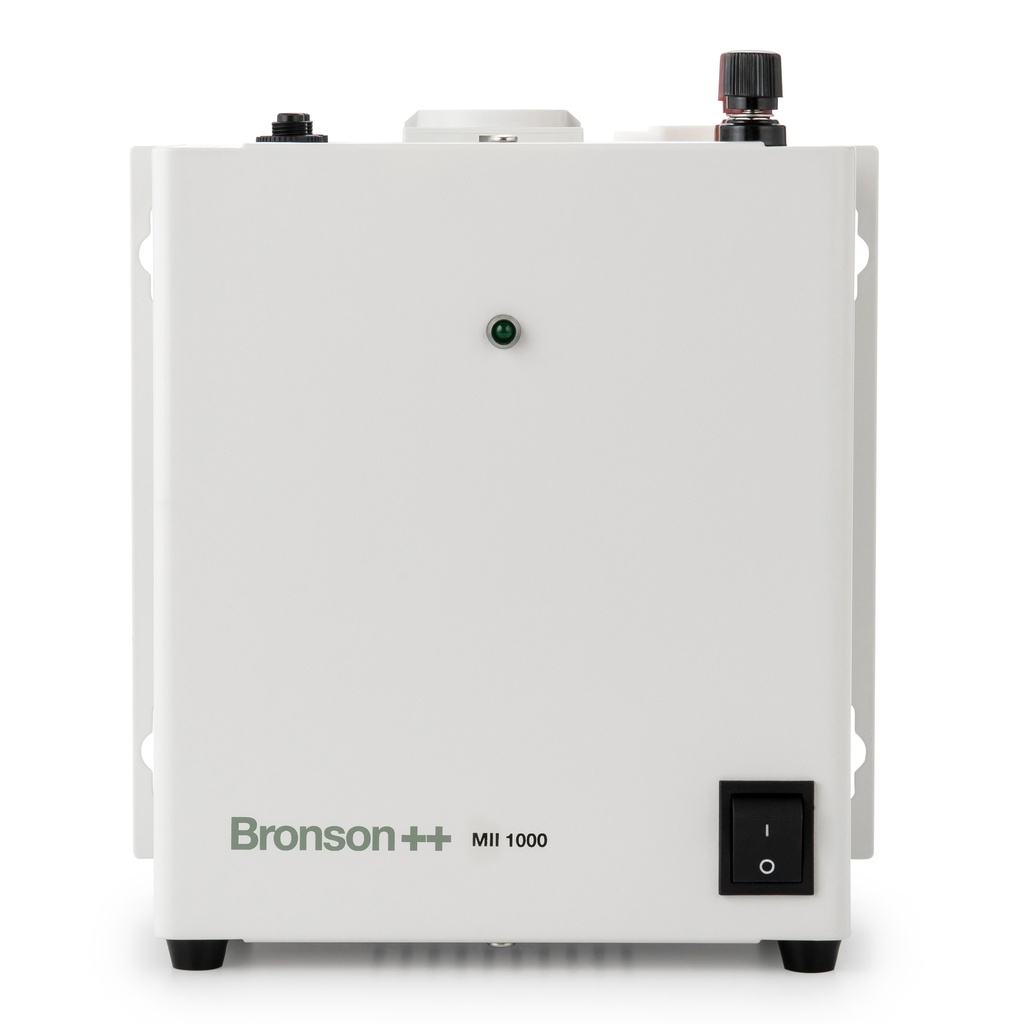

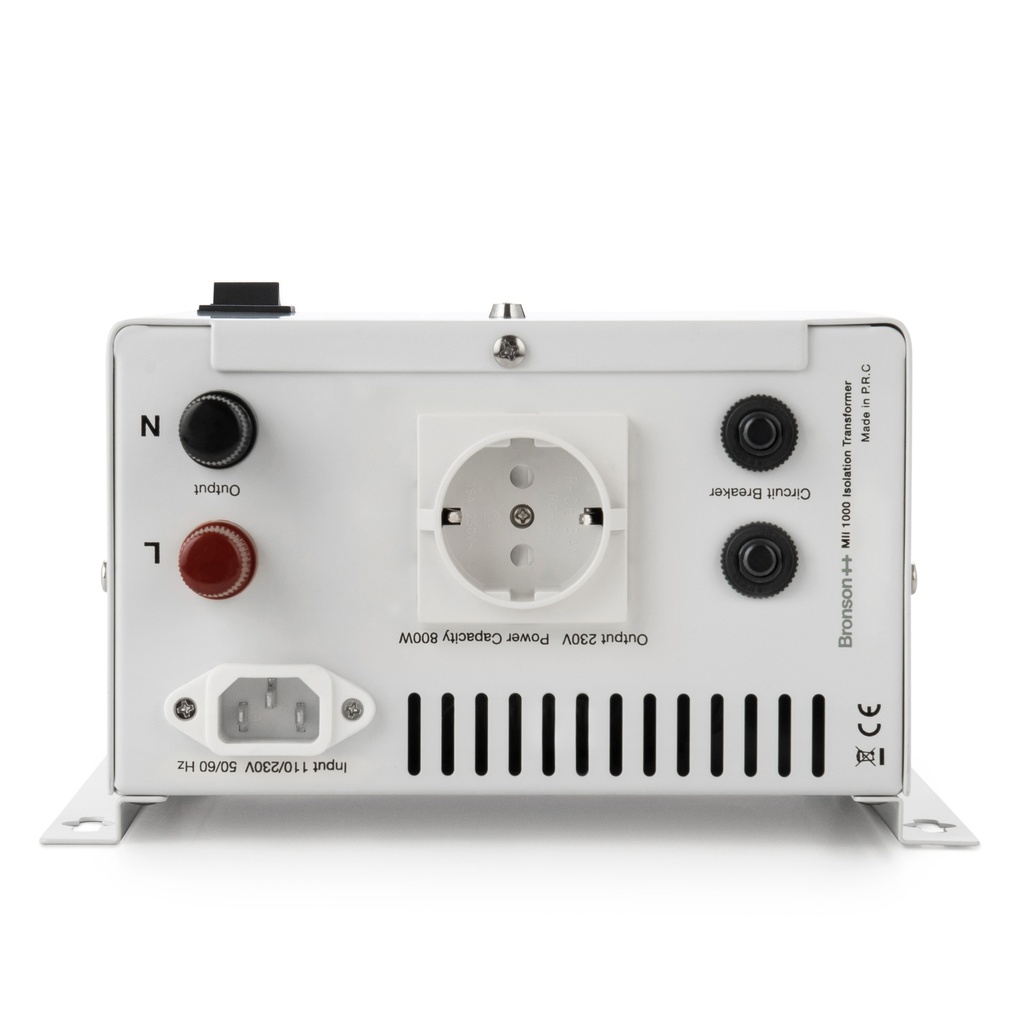

Bronson MII 1000

https://www.bronson-energy.com/web/image/product.template/72/image_1920?unique=afa1113

1000 Watts - Peak Power Output
800 Watts - Continuous Output

The Bronson MII creates a 230V AC output circuit isolated from both 110V and 230V AC power supply inputs with:


  • Max. capacity: 1000W

  • Continuous capacity: 800W (when operating longer than 15 min.)

  • Input: 110V or 230V (Plug: Schuko Type F)

  • Output: 230V (Socket: Schuko Type F)

  • Transmission efficiency: 98%

167.00 € 167.0 EUR 167.00 €

167.00 лв

Not Available For Sale

  • Plug Type
  • Condition

This combination does not exist.

Contact Us
Website List

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification
Maximum Power 1000W
Continuous Power 800W (when operating longer than 15 min)
Input Voltage 100 - 120V AC or 200 - 240V AC
Input Connection IEC cord with Schuko Type F plug
Output Voltage 200 - 240V AC (corresponds to input voltage or twice the input voltage)
Output Connection Schuko Type F socket
Transformer Type Toroidal core
Efficiency 98 %
Phase Single phase
Wave form Sine wave, no distortion
Display Green LED to indicate "Power on"
Soft Start Yes
Galvanic Isolation Yes
Overcurrent Protection Air switch: 16A, 110V
Short Circuit Protection Circuit breaker: 4A, 110V
Overheat Protection No
Frequency 50/60 Hz
Product Dimensions (H x L x W) 12.4 x 22.6 x 21.7 cm
Weight 7.5 kg
Product Dimensions Shematic
Specification mii-300
Bronson MII 300		 mii-500
Bronson MII 500		 mii-1000
Bronson MII 1000		 mii-2000
Bronson MII 2000		 mii-3000
Bronson MII 3000		 mii-4500
Bronson MII 4500		 mii-6000
Bronson MII 6000		 mii-8000
Bronson MII 8000
Maximum Power 300W 500W 1000W 2000W 3000W 4500W 6000W 8000W
Continuous Power 240W (when operating longer than 15 min) 400W (when operating longer than 15 min) 800W (when operating longer than 15 min) 1600W (when operating longer than 15 min) 2400W (when operating longer than 15 min) 3600W (when operating longer than 15 min) 4800W (when operating longer than 15 min) 6400W (when operating longer than 15 min)
Input Voltage 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC
Input Connection IEC cord with Schuko Type F plug IEC cord with Schuko Type F plug IEC cord with Schuko Type F plug IEC cord with Schuko Type F plug Screw Terminal Screw Terminal Screw Terminal Screw Terminal
Output Voltage 200 - 240V AC (corresponds to input voltage or twice the input voltage) 200 - 240V AC (corresponds to input voltage or twice the input voltage) 200 - 240V AC (corresponds to input voltage or twice the input voltage) 200 - 240V AC (corresponds to input voltage or twice the input voltage) 200 - 240V AC (corresponds to input voltage or twice the input voltage) 200 - 240V AC (corresponds to input voltage or twice the input voltage) 200 - 240V AC (corresponds to input voltage or twice the input voltage) 200 - 240V AC (corresponds to input voltage or twice the input voltage)
Output Connection Schuko Type F socket Schuko Type F socket Schuko Type F socket Schuko Type F socket - Schuko Type F
- British Type G
- Screw Terminal		 - Schuko Type F
- British Type G
- Screw Terminal		 - Schuko Type F
- British Type G
- Screw Terminal		 - Schuko Type F
- British Type G
- Screw Terminal
Transformer Type Toroidal core Toroidal core Toroidal core Toroidal core Toroidal core Toroidal core Toroidal core Toroidal core
Efficiency 98 % 98 % 98 % 98 % 98 % 98 % 98 % 98 %
Phase Single phase Single phase Single phase Single phase Single phase Single phase Single phase Single phase
Wave form Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion
Display Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on"
Soft Start No No No Yes Yes No No No
Galvanic Isolation Yes Yes Yes Yes Yes Yes Yes Yes
Overcurrent Protection Circuit Breaker 3A for 230V,6A for 110V Circuit Breaker 3A for 230V,6A for 110V Circuit Breaker 4A for 230V,8A for 110V Circuit Breaker 7A for 230V,14A for 110V Circuit Breaker 12A for 230V,24A for 110V Circuit Breaker 16A for 230V,32A for 110V Circuit Breaker 25A for 230V,50A for 110V Circuit Breaker 32A for 230V,63A for 110V
Short Circuit Protection No No No No No Circuit breaker: 15A, 110V (max. power per socket 3450W) Circuit breaker: 15A, 230V (max. power per socket 3450W) Circuit breaker: 15A, 230V (max. power per socket 3450W)
Overheat Protection Yes Yes Yes Yes Yes Fan for cooling the core when overheating Fan for cooling the core when overheating Fan for cooling the core when overheating
Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Product Dimensions (H x L x W) 10.0 x 20.6 x 19.2 cm 10.0 x 20.6 x 19.2 cm 12.4 x 22.6 x 21.7 cm 14.9 x 26.8 x 25.7 cm 14.9 x 26.8 x 25.7 cm 16.7 x 31.2 x 31.0 cm 16.7 x 36.2 x 35.0 cm 16.7 x 36.2 x 35.0 cm
Weight 4.7 kg 5.7 kg 7.5 kg 12.8 kg 15.0 kg 21.3 kg 26.4 kg 30.6 kg
