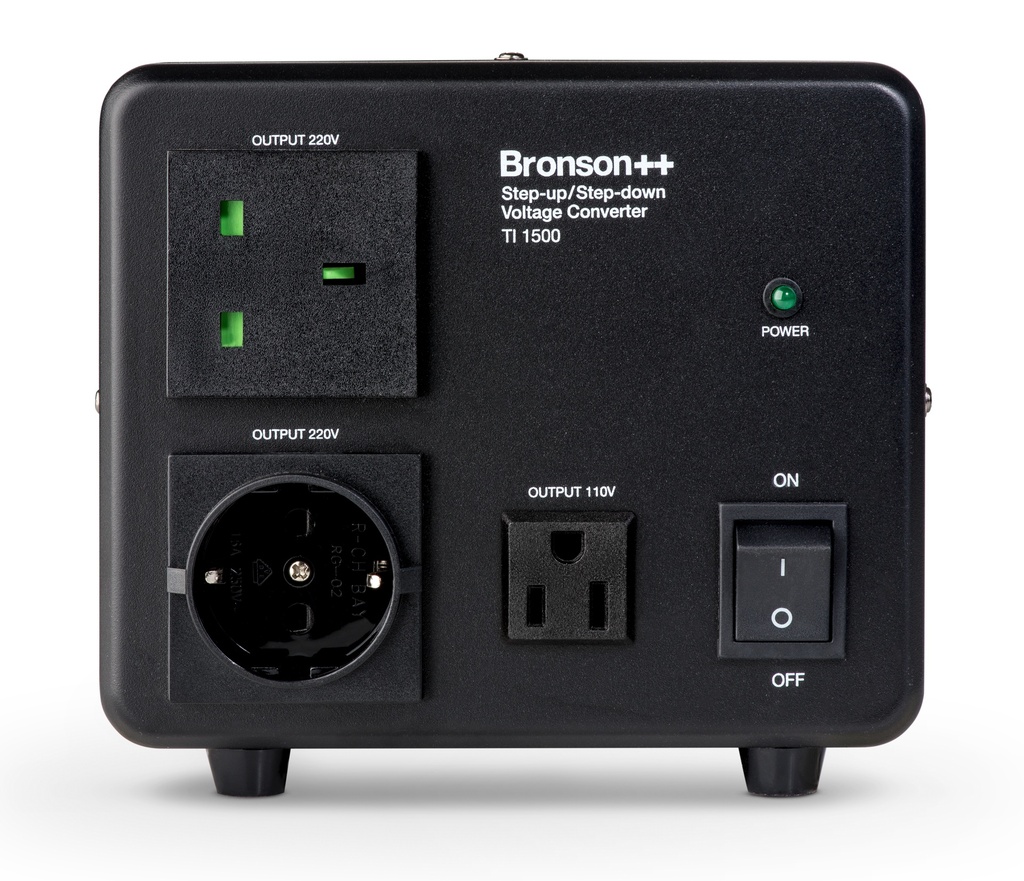

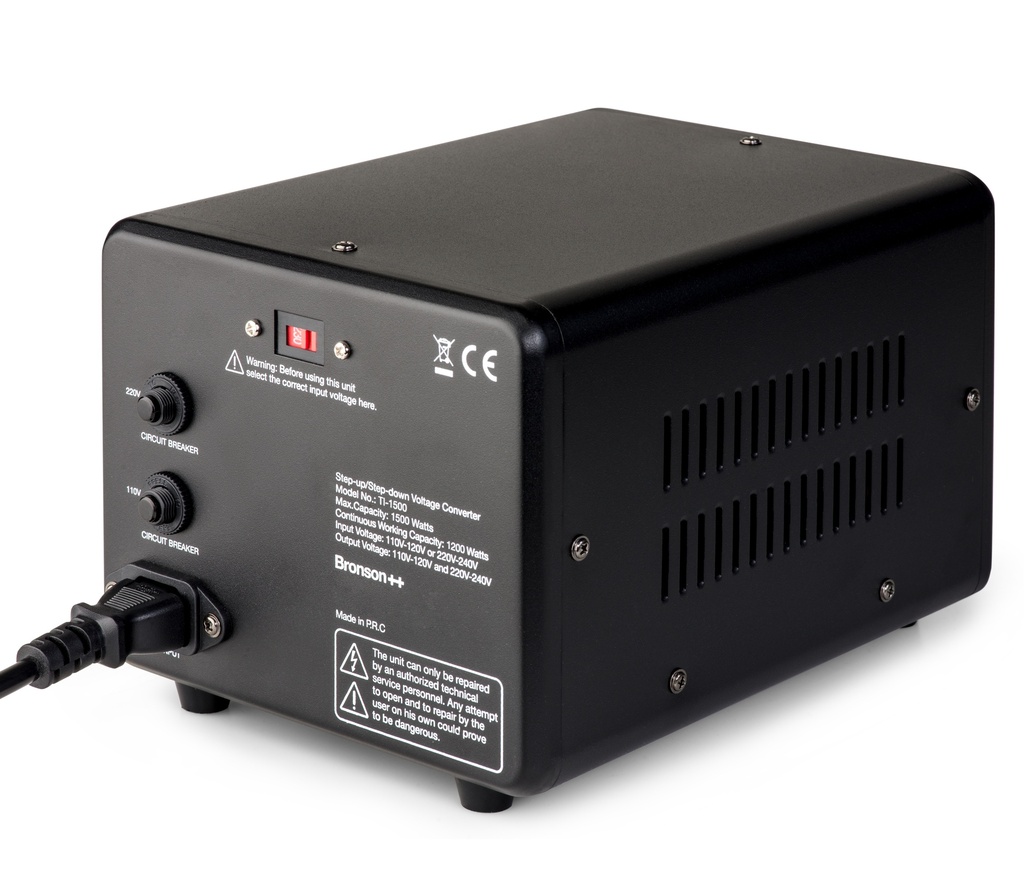

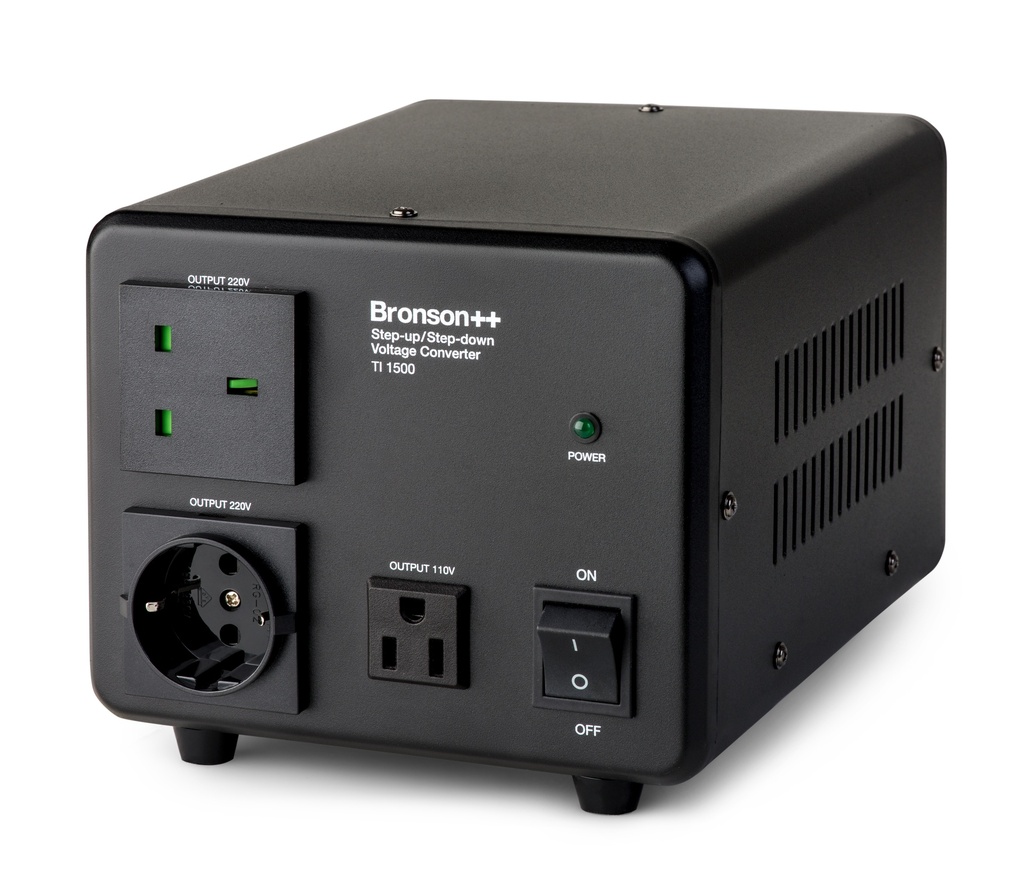

Bronson TI 1500

1500 Watts - Peak Power Output
1200 Watts - Continuous Output

The Bronson TI converts voltage both up (from 110V to 230V) and down (from 230V to 110V) enabling the use of appliances all over the world.

Max. capacity: 1500W
Operating capacity*: 1200W
Input: 110V or 230V (Plug: Schuko Type F)
Output: 110V or 230V (Sockets: American Type B, Schuko Type F, and British Type G)
Transmission efficiency: 98%

105.99 € 105.99000000000001 EUR 105.99 €

106.01 лв

Plug Type
- EU
- UK
Condition
- NEW
- USED

This combination does not exist.

Add to cart Buy now

Documents

Manual-Handbuch-Bronson-TI.pdf

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification
Maximum Power	1500W
Continuous Power	1200W (when operating longer than 15 min)
Input Voltage	100 - 120V AC or 200 - 240V AC
Input Connection	EU model: IEC cord with Schuko Type F plug UK model: IEC cord with British Type G plug
Output Voltage	100 - 120V AC (corresponds to half the input voltage) 200 - 240V AC (corresponds to twice the input voltage)
Output Connection	American Type B (110V) Schuko Type F (230V) British Type G (230V)
Transformer Type	Toroidal core
Efficiency	98%
Phase	Single phase
Wave form	Sine wave, no distortion
Display	Green LED to indicate "Power on"
Soft Start	Yes
Galvanic Isolation	No
Overcurrent Protection	Circuit breaker: 12A, 110V and 7A, 230V
Short Circuit Protection	No
Overheat Protection	No
Frequency	50/60 Hz
Product Dimensions (H x L x W)	13.8 x 21.8 x 16.8 cm
Weight	5.6 kg

Specification	Bronson TI 200	Bronson TI 300	Bronson TI 500	Bronson TI 800	Bronson TI 1000	Bronson TI 1500	Bronson TI 2000
Maximum Power	200W	300W	500W	800W	1000W	1500W	2000W
Continuous Power	160W (when operating longer than 15 min)	240W (when operating longer than 15 min)	400W (when operating longer than 15 min)	640W (when operating longer than 15 min)	800W (when operating longer than 15 min)	1200W (when operating longer than 15 min)	1600W (when operating longer than 15 min)
Input Voltage	100 - 120V or 200 - 240V AC	100 - 120V or 200 - 240V AC	100 - 120V or 200 - 240V AC	100 - 120V or 200 - 240V AC	100 - 120V or 200 - 240V AC	100 - 120V or 200 - 240V AC	100 - 120V or 200 - 240V AC
Input Connection	EU model: IEC cord with Schuko Type F plug UK model: IEC cord with British Type G plug	EU model: IEC cord with Schuko Type F plug UK model: IEC cord with British Type G plug	EU model: IEC cord with Schuko Type F plug UK model: IEC cord with British Type G plug	EU model: IEC cord with Schuko Type F plug UK model: IEC cord with British Type G plug	EU model: IEC cord with Schuko Type F plug UK model: IEC cord with British Type G plug	EU model: IEC cord with Schuko Type F plug UK model: IEC cord with British Type G plug	EU model: IEC cord with Schuko Type F plug UK model: IEC cord with British Type G plug
Output Voltage	100 - 120V (corresponds to half the input voltage) 200 - 240V (corresponds to twice the input voltage)	100 - 120V (corresponds to half the input voltage) 200 - 240V (corresponds to twice the input voltage)	100 - 120V (corresponds to half the input voltage) 200 - 240V (corresponds to twice the input voltage)	100 - 120V (corresponds to half the input voltage) 200 - 240V (corresponds to twice the input voltage)	100 - 120V (corresponds to half the input voltage) 200 - 240V (corresponds to twice the input voltage)	100 - 120V (corresponds to half the input voltage) 200 - 240V (corresponds to twice the input voltage)	100 - 120V (corresponds to half the input voltage) 200 - 240V (corresponds to twice the input voltage)
Output Connection	American Type B socket (110V) Schuko Type F socket (230V) British Type G socket (230V)	American Type B socket (110V) Schuko Type F socket (230V) British Type G socket (230V)	American Type B socket (110V) Schuko Type F socket (230V) British Type G socket (230V)	American Type B socket (110V) Schuko Type F socket (230V) British Type G socket (230V)	American Type B socket (110V) Schuko Type F socket (230V) British Type G socket (230V)	American Type B socket (110V) Schuko Type F socket (230V) British Type G socket (230V)	American Type B socket (110V) Schuko Type F socket (230V) British Type G socket (230V)
Transformer Type	Toroidal core	Toroidal core	Toroidal core	Toroidal core	Toroidal core	Toroidal core	Toroidal core
Efficiency	98%	98%	98%	98%	98%	98%	98%
Phase	Single phase	Single phase	Single phase	Single phase	Single phase	Single phase	Single phase
Wave form	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion
Display	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"
Soft Start	No	No	No	No	No	Yes	Yes
Galvanic Isolation	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Overcurrent Protection	Fuse: 2A, 110V and 2A, 230V	Fuse: 3A, 110V and 2A, 230V	Fuse: 5A, 110V and 3A, 230V	Circuit breaker: 7A, 110V and 3A, 230V	Circuit breaker: 8A, 110V and 4A, 230V	Circuit breaker: 12A, 110V and 7A, 230V	Circuit breaker: 15A, 110V and 8A, 230V
Short Circuit Protection	3A, 230V	No	No	No	No	No	No
Overheat Protection	No	No	No	No	No	No	No
Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Product Dimensions (H x L x W)	10.0 x 20.6 x 19.2 cm	9.0 x 15.8 x 12.5 cm	9.0 x 15.8 x 12.5 cm	13.0 x 19.2 x 14.8 cm	13.0 x 19.2 x 14.8 cm	13.8 x 21.8 x 16.8 cm	13.8 x 21.8 x 16.8 cm
Weight	4.7 kg	2.2 kg	2.8 kg	3.6 kg	4.3 kg	5.6 kg	6.5 kg
