Bronson TT 8000

The Bronson TT 8000 is the most powerful isolation transformer in the TT range — engineered for the most demanding industrial, marine and mission-critical applications where maximum isolated power is essential.

Max. 8000W / Continuous 6400W — the highest capacity in the TT range for large-scale isolated power distribution
True galvanic isolation — complete electrical separation for maximum personnel and equipment protection
Mission-critical ready — stable isolated power for data centres, large vessels and industrial production lines
Screw terminals + EU/UK sockets — designed for permanent heavy-duty installation
Ideal for — heavy industry, large ships, data centres, hospitals and critical infrastructure

Condition
- NEW
- USED

402.50 € 479.00 €

Excl. Shipping
Shipping: 10-20 Business days
30-Day Money-Back Guarantee

Add to cart Buy now

Quantity:

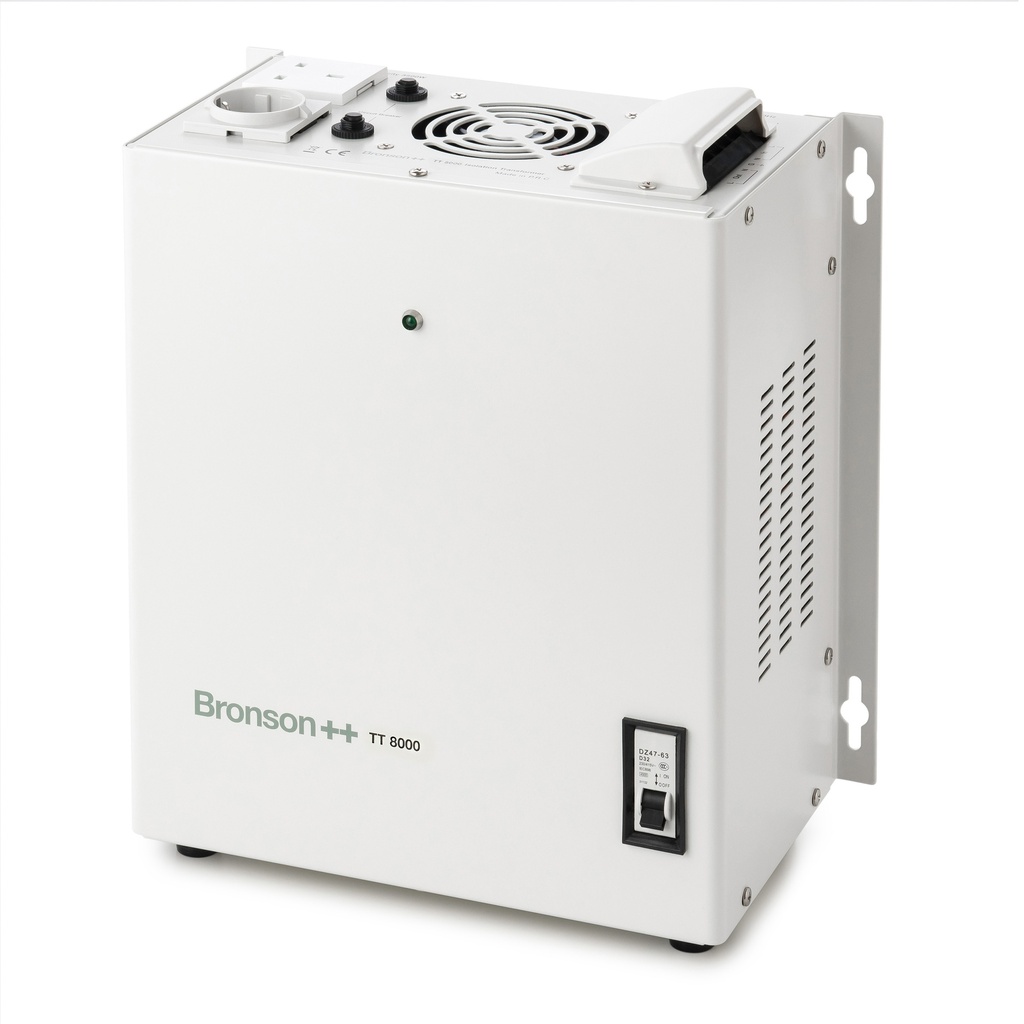

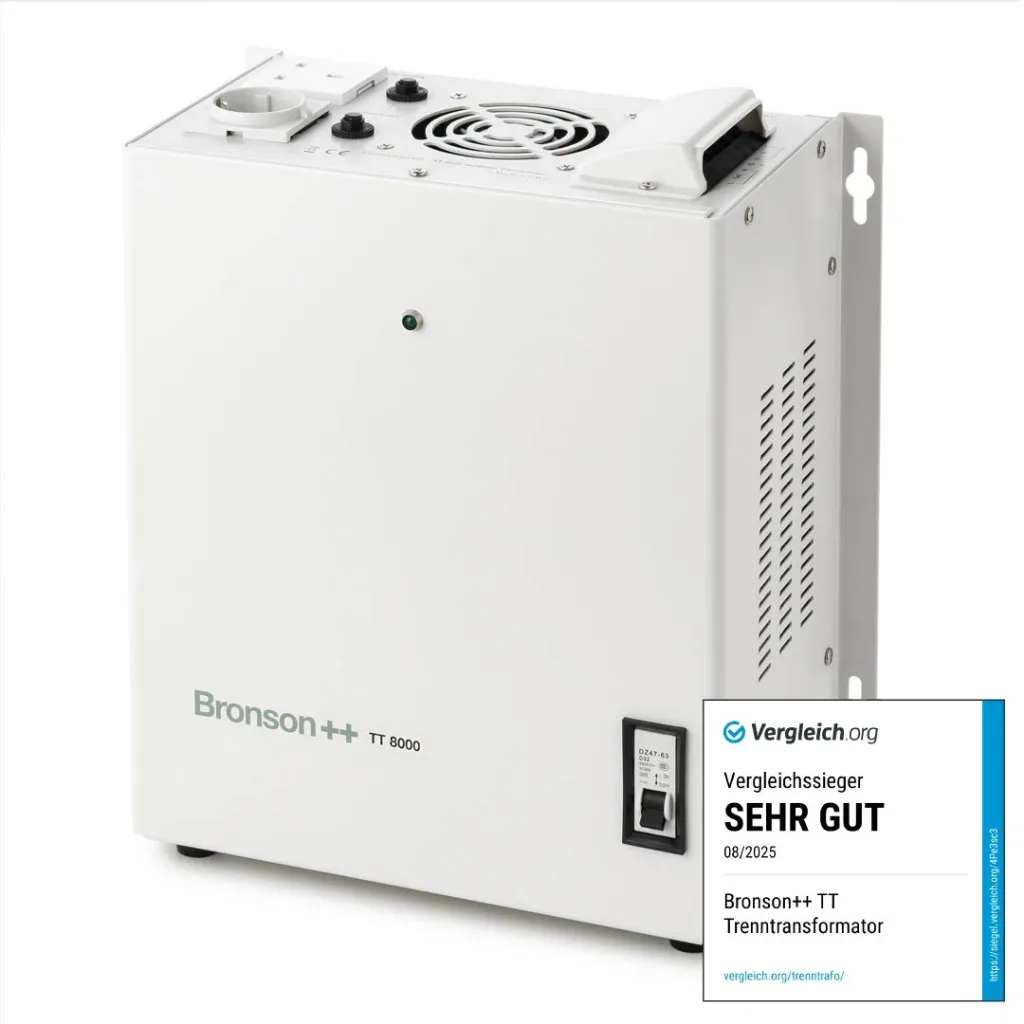

Bronson TT 8000 — Isolation Transformer 8000W

The most powerful 230V isolation transformer in the TT line for industry, marine, and critical infrastructure. 8000W max, 6400W continuous.

8000W max / 6400W continuous — fan-cooled

The TT 8000 delivers 6400W continuous load and up to 8000W short-term. A temperature-controlled fan holds the output steady for production lines, large vessels, and data centers.

230V ↔ 230V — galvanic isolation, PE screen

As a toroidal transformer the TT 8000 isolates the output galvanically from the 230V supply (1:1, 98%). An electrostatic screen on PE keeps interference off and protects critical equipment from line-side faults.

Terminal input 32A + Schuko/UK, no IEC

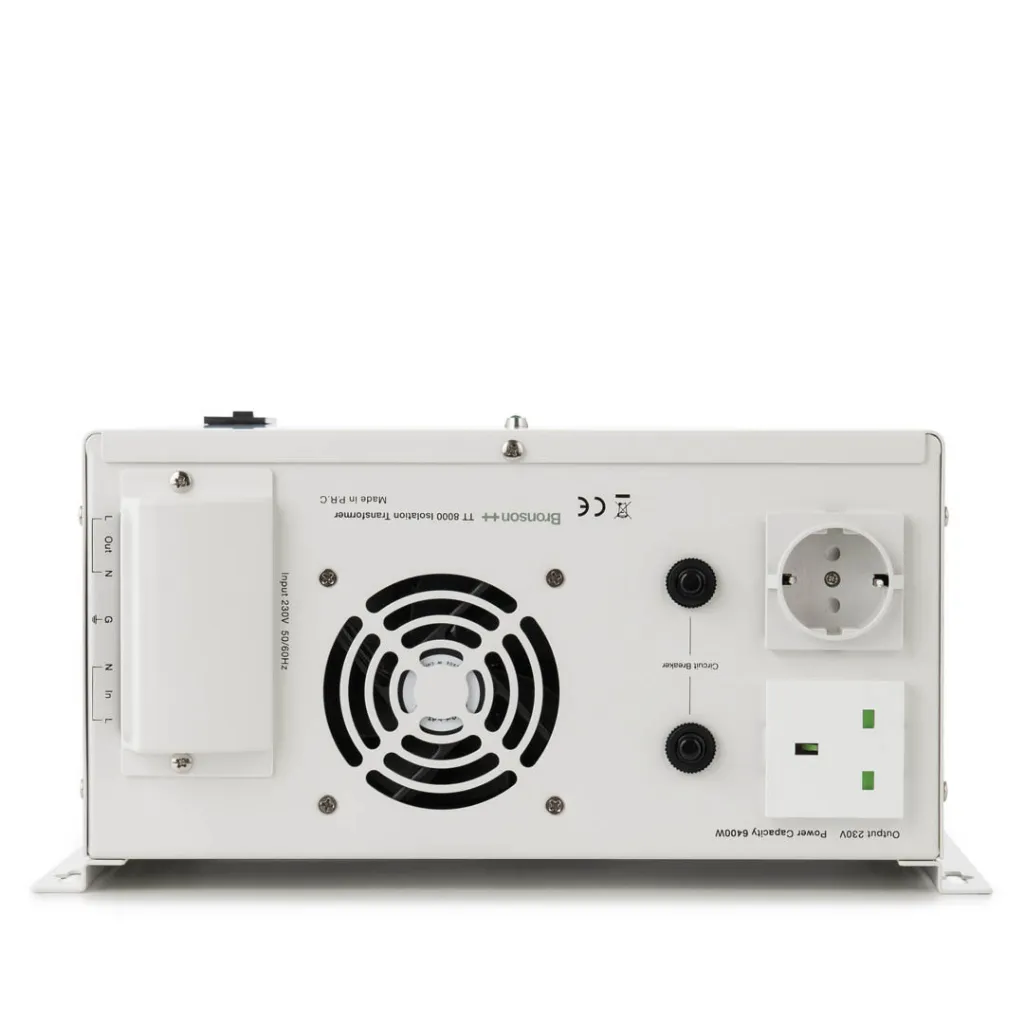

The TT 8000 is fed through a screw terminal fused at 32A (no IEC plug). The output provides Schuko Type F, UK Type G, and a screw terminal. Each socket is fused at 15A (up to 3450W).

Use case 01

Production Floor

Supplying factory machines with isolated 230V

Use case 02

Onboard Wiring

Schematic wiring of the isolation transformer aboard

Use case 03

Safety Transformer Schematic

Schematic use as a safety transformer

Frequently asked questions

Can the TT 8000 derive usable 230V for European equipment from a US split-phase supply?

Yes. The 240V between the two US line conductors (L1–L2) serve as the input, and the TT 8000 delivers isolated 230V from it.

The floating secondary is referenced to PE through a defined neutral. A US split-phase source then supplies European 230V equipment through a clean L-N output.

What upstream protection does the TT 8000 need?

The input uses a 32A circuit breaker; the building's upstream fuse should match it.

At 8000W max that is around 35A on the 230V side. If the upstream fuse trips at switch-on, choose one with a suitable trip curve.

Does the TT 8000 provide full galvanic isolation for critical equipment?

Yes. The primary and secondary windings are fully separated and the output floats.

In production, a data center, or aboard, that protects critical equipment from line-side faults and breaks the earth path. The output is a true isolation transformer, not an autotransformer.

Can the TT 8000 run in an enclosed cabinet?

Only with adequate ventilation. The TT 8000 has a temperature-controlled fan and needs free air circulation.

In a closed cabinet the waste heat must be removed. Mount it upright with a clear airflow path; check with us for install questions.

Our technology.

Toroidal core construction

The TT 8000 is built as a toroidal transformer and reaches 98% efficiency with low stray losses. Compared with a conventional laminated core, it produces less waste heat and runs quieter under load.

Designed for wall mounting

The TT 8000 enclosure is designed for wall mounting and bolts down fixed. The input is a screw terminal for a permanent installation. That puts the 30.6 kg isolation transformer on the wall — in production, a plant room, or a data center — without taking floor space.

	Bronson TT 500	Bronson TT 1000	Bronson TT 3000	Bronson TT 5000	Bronson TT 8000
Maximum Power	500 W	1000 W	3000 W	5000 W	8000 W
Continuous Power	400W	800W	2400W	4000W	6400W
Input Voltage	200 - 240V AC
Input Connection	IEC cord with Schuko Type F plug	IEC cord with Schuko Type F plug	Screw Terminal	Screw Terminal	Screw Terminal
Output Voltage	200 - 240V AC (corresponds to input voltage)
Output Connection	Schuko Type F socket	Schuko Type F socket	Schuko Type F / British Type G / Screw Terminal	Schuko Type F / British Type G / Screw Terminal	Schuko Type F / British Type G / Screw Terminal
Transformer Type	Toroidal core
Efficiency	98 %
Phase	Single phase
Wave form	Sine wave - no distortion
Display	Green LED to indicate Power on
Soft Start	No
Galvanic Isolation	Yes
Overcurrent Protection	Air switch: 6A 230V	Air switch: 16A 230V	Air switch: 16A 230V	Air switch: 25A 230V	Air switch: 32A 230V
Short Circuit Protection	Circuit breaker: 3A 230V	Circuit breaker: 4A 230V	Circuit breaker: 12A 230V	Circuit breaker: 15A 230V (max. power per socket 3450W)	Circuit breaker: 15A 230V (max. power per socket 3450W)
Overheat Protection	No	No	No	Fan for cooling the core when overheating	Fan for cooling the core when overheating
Frequency	50/60 Hz
Product Dimensions (H x L x W)	10.0 x 20.6 x 19.2 cm	12.4 x 22.6 x 21.7 cm	14.9 x 26.8 x 25.7 cm	16.7 x 31.0 x 31.2 cm	16.7 x 36.2 x 35.0 cm
Weight	4.7 kg	7.7 kg	14.5 kg	21.6 kg	30.6 kg
