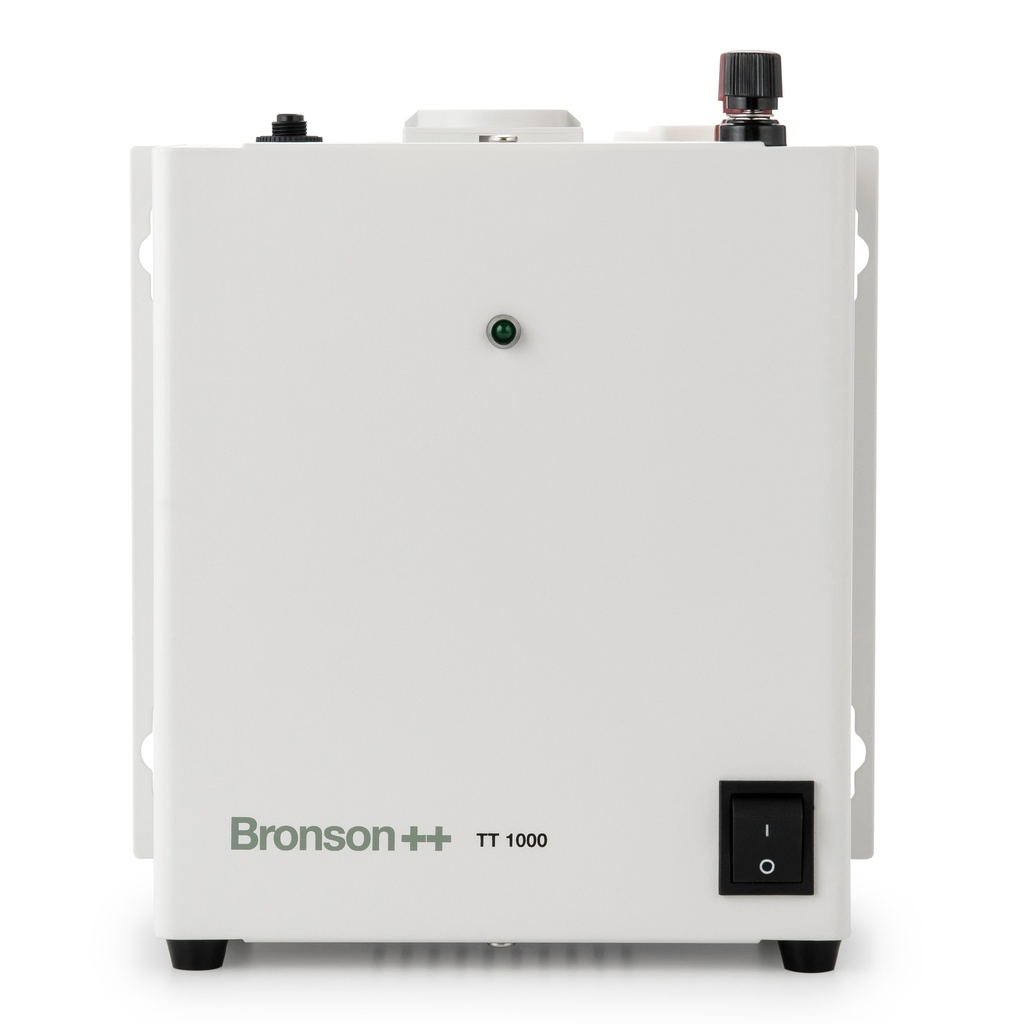

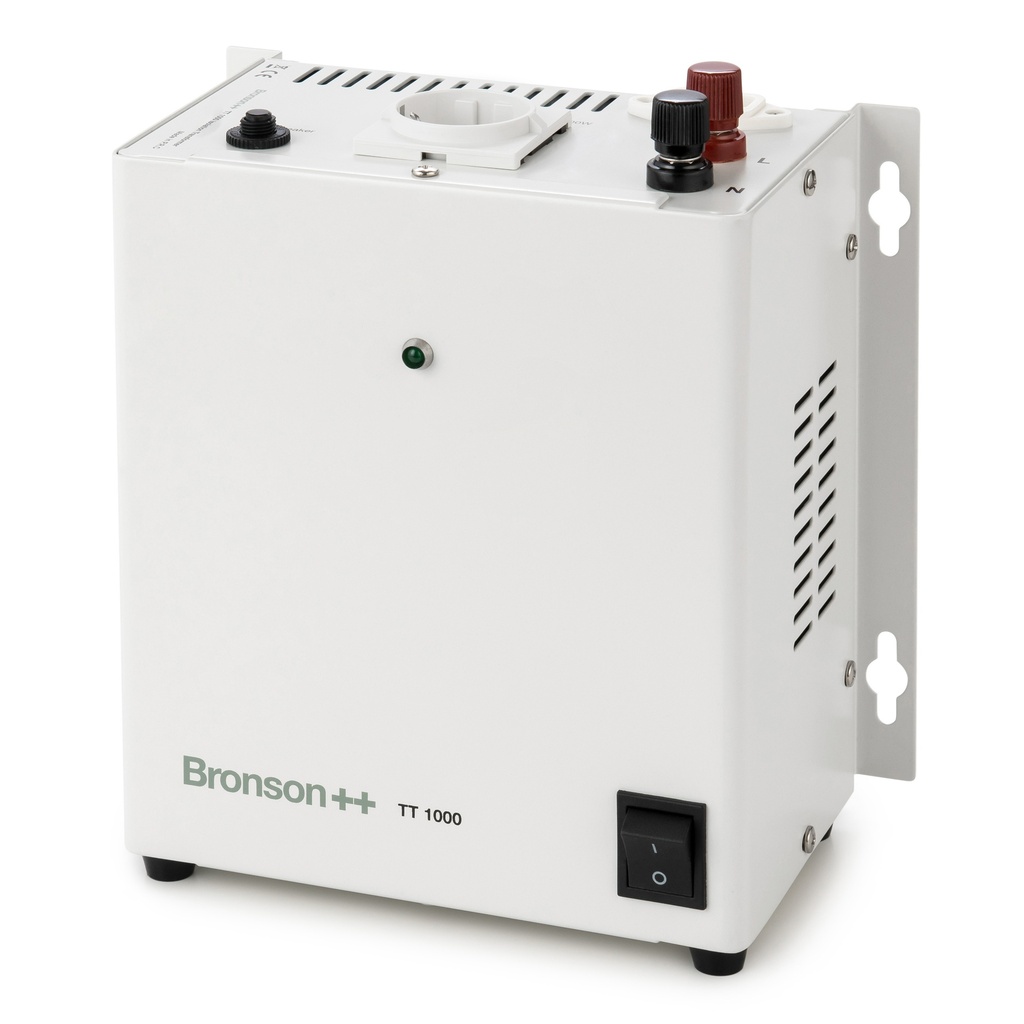

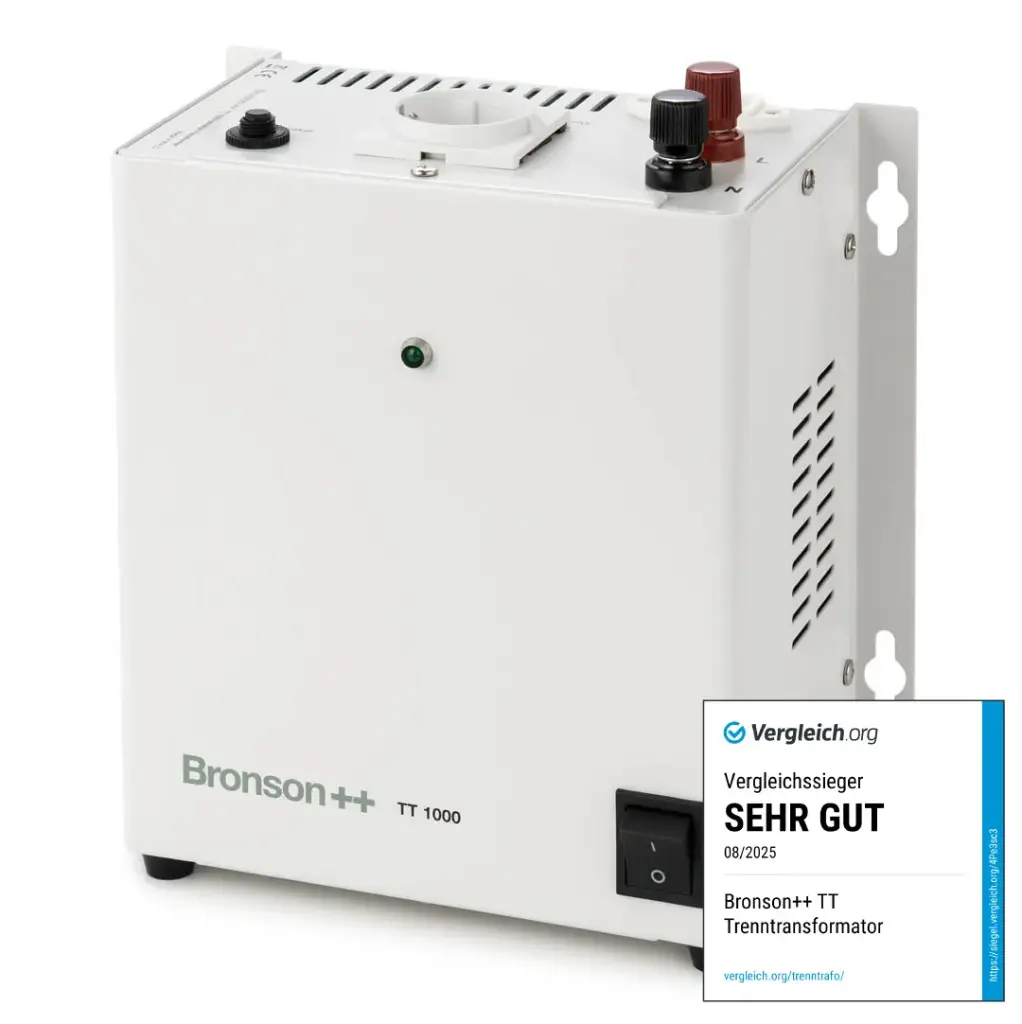

Bronson TT 1000

The Bronson TT 1000 is a robust 230V isolation transformer — the professional choice for service workshops, audio setups and lab environments where electrical safety and interference-free operation are non-negotiable.

Max. 1000W / Continuous 800W — handles larger HiFi systems, test benches and multiple pieces of workshop equipment
True galvanic isolation — completely breaks the electrical path between mains and connected devices
Eliminates ground loops — essential for clean audio in professional HiFi and recording setups
Safe servicing — protects technicians working on live equipment in repair and calibration environments
Ideal for — audio technicians, electronics service workshops, measurement labs and professional HiFi installations

Plug Type
- EU
- UK
Condition
- NEW
- USED

136.12 € 161.99 €

Excl. Shipping
Shipping: 10-20 Business days
30-Day Money-Back Guarantee

Add to cart Buy now

Quantity:

Bronson TT 1000 — Isolation Transformer 1000W

230V isolation transformer with galvanic isolation and toroidal core for hi-fi, test bench, and workshop. 1000W max, 800W continuous.

1000W max / 800W continuous — multiple devices

The TT 1000 delivers 800W continuous load and up to 1000W short-term. It runs larger hi-fi systems, test benches, and several workshop devices at once. An overheat cutoff guards continuous operation.

230V ↔ 230V — toroidal core, 98% efficiency

As a toroidal transformer the TT 1000 converts at a 1:1 ratio with 98% efficiency. The galvanic isolation keeps the output floating, with no reference to the 230V supply.

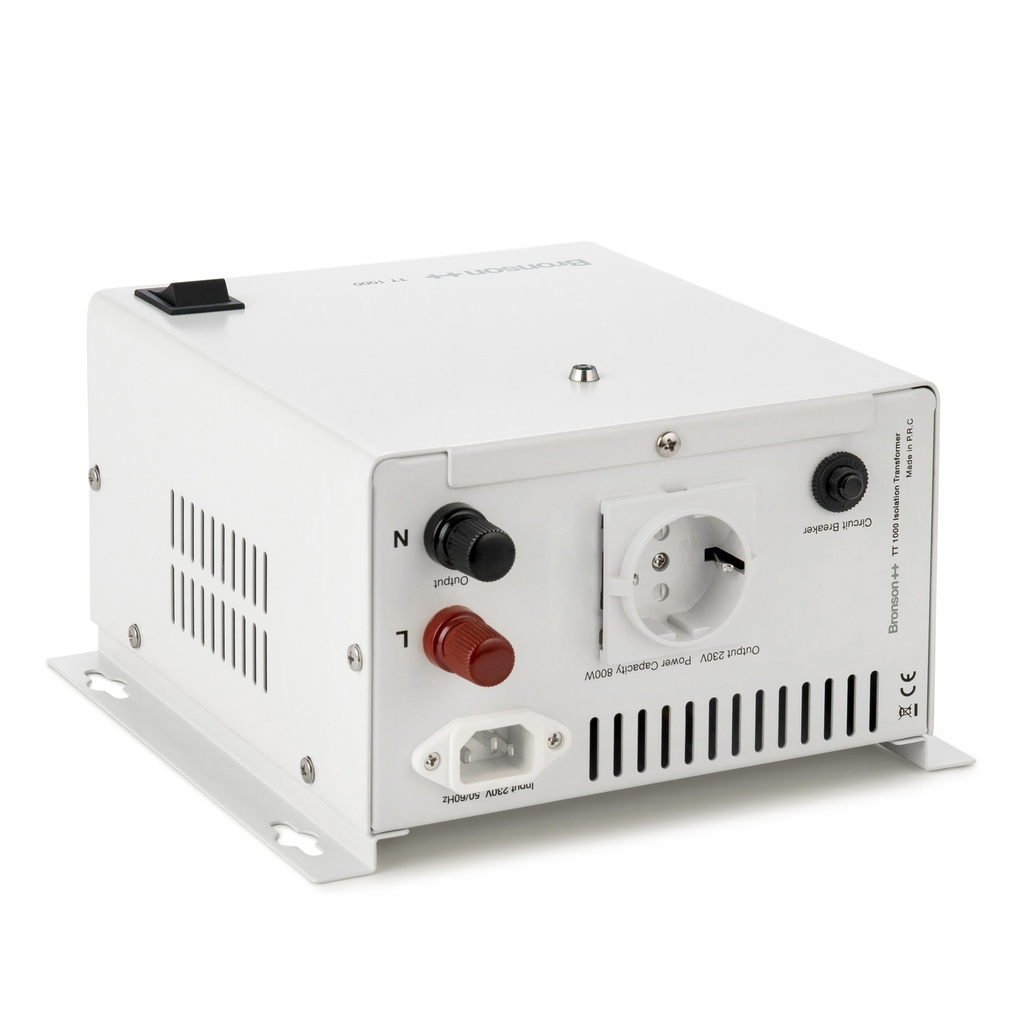

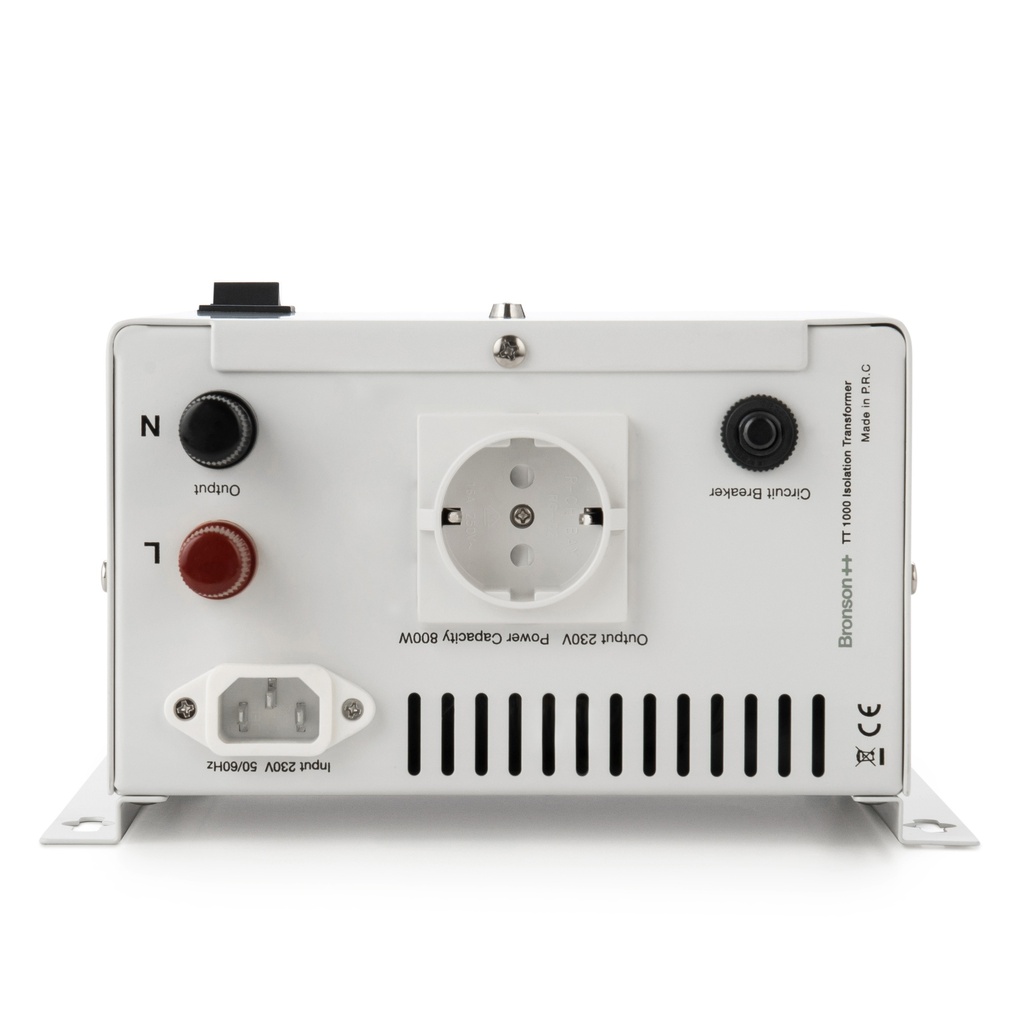

IEC input, Schuko-F + terminal output

The input takes an IEC cable with a Schuko Type F plug. The output provides a Schuko Type F socket and a screw terminal. The TT 1000 runs on 230V supplies at 50/60 Hz.

Use case 01

Electrical Workbench

Isolation transformer for safe work at the electrical test bench

Use case 02

Safety Transformer Schematic

Schematic use as a safety transformer

Use case 03

Onboard Wiring

Schematic wiring of the isolation transformer aboard

Frequently asked questions

Does the TT 1000 have inrush current limiting?

No. The TT 1000 has no soft-start.

At switch-on the toroidal core draws a short, high magnetizing current by design. On a standard household breaker this is uncritical; only very sensitive trip curves react to it.

Does the TT 1000 run warm or hum under load?

No, there is no disturbing hum up to the 800W continuous load.

The toroidal core runs at 98% efficiency and produces little waste heat. Compared with a switch-mode supply there is no whine or clicking.

Is the TT 1000 galvanically isolated?

Yes. The primary and secondary windings are fully separated and the output floats.

The TT 1000 is a true isolation transformer (1:1), not an autotransformer. That protects you when working on open 230V equipment and prevents earth loops.

Is the TT 1000 suitable for vintage hi-fi and tape decks?

Yes. The TT 1000 isolates audio gear from the 230V supply and removes line-borne hum.

For a tape deck or an older stereo system it delivers 800W continuous load; the electrostatic screen additionally keeps line interference off the signal.

Our technology.

Toroidal core construction

The TT 1000 is built as a toroidal transformer. The ring-core construction has low stray losses and reaches 98% efficiency. That produces less heat under load, and the transformer runs without hum up to the 800W continuous load — unlike a switch-mode supply with audible whine.

Electrostatic screen bonded to PE

An electrostatic screen between the primary and secondary windings is bonded to protective earth (PE) and drains high-frequency line interference to earth. At the output the 230V signal stays cleaner, which reduces coupled line noise when running sensitive audio and recording equipment.

	Bronson TT 500	Bronson TT 1000	Bronson TT 3000	Bronson TT 5000	Bronson TT 8000
Maximum Power	500 W	1000 W	3000 W	5000 W	8000 W
Continuous Power	400W	800W	2400W	4000W	6400W
Input Voltage	200 - 240V AC
Input Connection	IEC cord with Schuko Type F plug	IEC cord with Schuko Type F plug	Screw Terminal	Screw Terminal	Screw Terminal
Output Voltage	200 - 240V AC (corresponds to input voltage)
Output Connection	Schuko Type F socket	Schuko Type F socket	Schuko Type F / British Type G / Screw Terminal	Schuko Type F / British Type G / Screw Terminal	Schuko Type F / British Type G / Screw Terminal
Transformer Type	Toroidal core
Efficiency	98 %
Phase	Single phase
Wave form	Sine wave - no distortion
Display	Green LED to indicate Power on
Soft Start	No
Galvanic Isolation	Yes
Overcurrent Protection	Air switch: 6A 230V	Air switch: 16A 230V	Air switch: 16A 230V	Air switch: 25A 230V	Air switch: 32A 230V
Short Circuit Protection	Circuit breaker: 3A 230V	Circuit breaker: 4A 230V	Circuit breaker: 12A 230V	Circuit breaker: 15A 230V (max. power per socket 3450W)	Circuit breaker: 15A 230V (max. power per socket 3450W)
Overheat Protection	No	No	No	Fan for cooling the core when overheating	Fan for cooling the core when overheating
Frequency	50/60 Hz
Product Dimensions (H x L x W)	10.0 x 20.6 x 19.2 cm	12.4 x 22.6 x 21.7 cm	14.9 x 26.8 x 25.7 cm	16.7 x 31.0 x 31.2 cm	16.7 x 36.2 x 35.0 cm
Weight	4.7 kg	7.7 kg	14.5 kg	21.6 kg	30.6 kg
