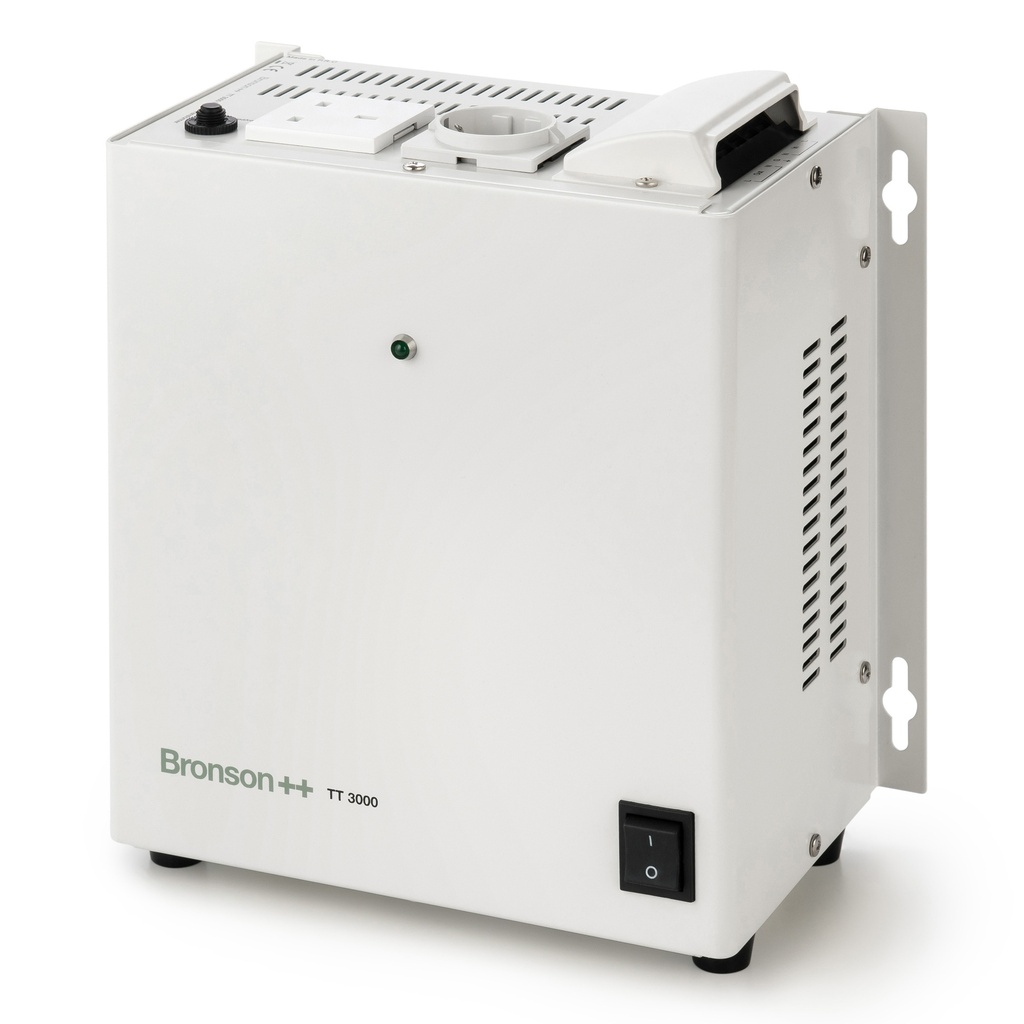

Bronson TT 3000

The Bronson TT 3000 is a high-power 230V isolation transformer — built for demanding professional environments where multiple pieces of equipment need safe, isolated power simultaneously.

Max. 3000W / Continuous 2400W — powers multiple devices simultaneously on a fully isolated circuit
True galvanic isolation — eliminates shock hazards and protects sensitive equipment from mains-borne faults
Marine and stage ready — safe isolated power for boats on shore power and professional stage setups
Screw terminals + EU/UK sockets — flexible connection for fixed and portable installations
Ideal for — professional workshops, marine shore power, stage and event productions, IT server rooms

Condition
- NEW
- USED

230.24 € 274.00 €

Excl. Shipping
Shipping: 10-20 Business days
30-Day Money-Back Guarantee

Add to cart Buy now

Quantity:

Bronson TT 3000 — Isolation Transformer 3000W

230V isolation transformer with galvanic isolation for workshop, stage, marine, and IT. 3000W max, 2400W continuous, toroidal core.

3000W max / 2400W continuous — multiple devices

The TT 3000 delivers 2400W continuous load and up to 3000W short-term. It runs several professional devices at once on an isolated circuit. An overheat cutoff guards continuous operation.

230V ↔ 230V — galvanic isolation, PE screen

As a toroidal transformer the TT 3000 isolates the output galvanically from the 230V supply (1:1, 98%). An electrostatic screen on PE keeps line interference off the floating output.

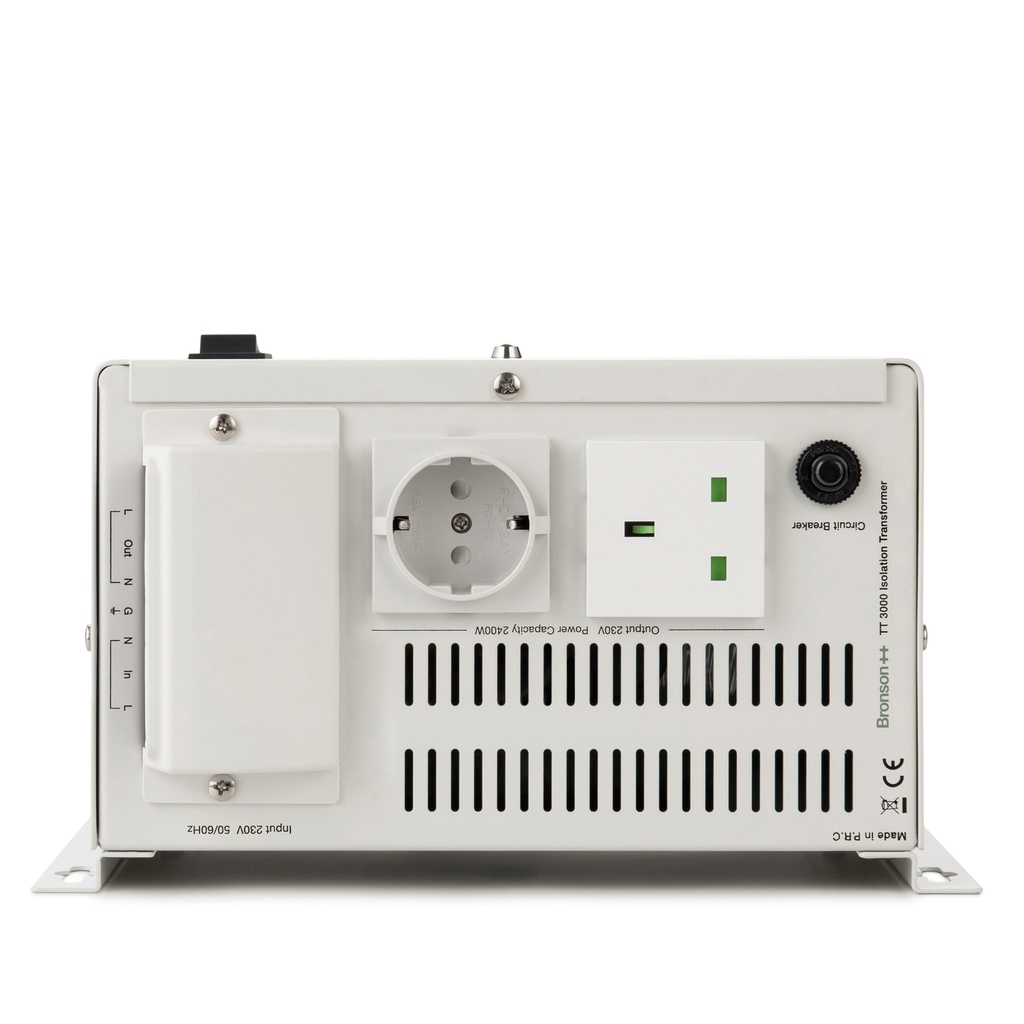

Terminal input + Schuko/UK, no IEC

The TT 3000 is fed through a screw terminal (no IEC plug). The output provides Schuko Type F, UK Type G, and a screw terminal — for fixed installation and mobile connection.

Use case 01

Electrical Workbench

Isolating several devices on a pro workbench

Use case 02

Safety Transformer Schematic

Schematic use as a safety transformer

Use case 03

Onboard Wiring

Schematic wiring of the isolation transformer aboard

Frequently asked questions

Can I run the TT 3000 behind a portable generator with a split-phase output?

Yes. The TT 3000 takes the 240V between the two line conductors (L1–L2) as its input and delivers an isolated 230V circuit from it.

The floating secondary can be referenced to PE through a defined neutral (N). That turns a split-phase source into a clean 230V L-N output for European equipment.

Can the TT 3000 be installed behind an inverter with its own earth rod on the neutral?

Yes. The TT 3000 can be installed behind an inverter and the secondary neutral grounded separately.

That creates a defined earth reference aboard and isolates the onboard system galvanically from the source. For a special boat configuration, check with us first.

Does the TT 3000 have inrush current limiting?

No. The TT 3000 has no soft-start.

The toroidal core draws a short, high current at switch-on. In fixed installations, size the upstream breaker accordingly — a C-curve breaker handles the cold-start inrush.

What connections does the TT 3000 have on input and output?

The input is a screw terminal; the output provides Schuko Type F, UK Type G, and a screw terminal.

A wiring schematic for the terminal assignment (L/N) ships with the unit and is also available for download in the documents section.

Our technology.

True galvanic isolation

The primary and secondary windings are physically separated; the output floats and has no conductive reference to the feeding 230V supply. An electrostatic screen on PE drains line interference to earth. In marine and stage setups this prevents earth loops and ground-loop hum and protects crew working on connected 230V equipment.

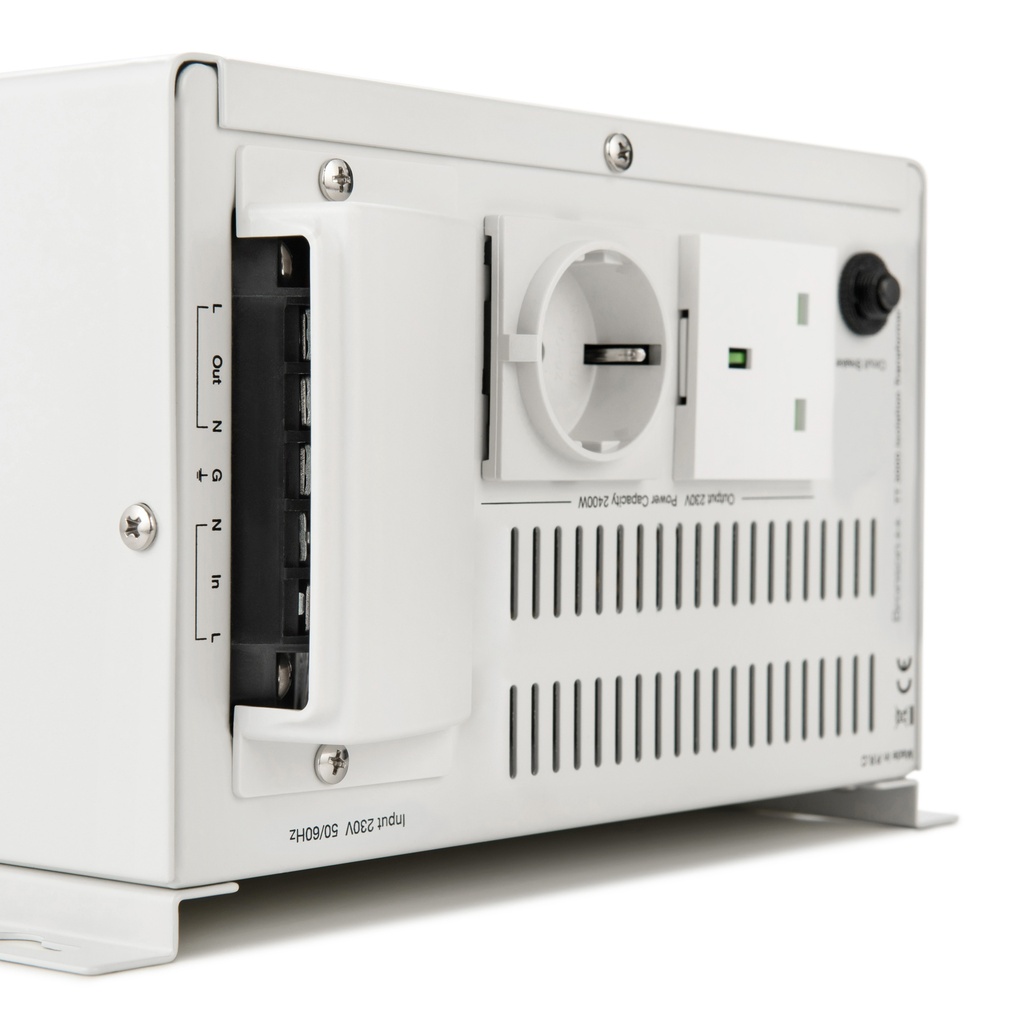

Screw terminal plus Schuko and UK sockets

The input is hardwired through a screw terminal; the output offers Schuko Type F, UK Type G, and a screw terminal in parallel. That lets you install the TT 3000 fixed on a wall or in a cabinet, or run it mobile on stage, with no adapters between the connection types.

	Bronson TT 500	Bronson TT 1000	Bronson TT 3000	Bronson TT 5000	Bronson TT 8000
Maximum Power	500 W	1000 W	3000 W	5000 W	8000 W
Continuous Power	400W	800W	2400W	4000W	6400W
Input Voltage	200 - 240V AC
Input Connection	IEC cord with Schuko Type F plug	IEC cord with Schuko Type F plug	Screw Terminal	Screw Terminal	Screw Terminal
Output Voltage	200 - 240V AC (corresponds to input voltage)
Output Connection	Schuko Type F socket	Schuko Type F socket	Schuko Type F / British Type G / Screw Terminal	Schuko Type F / British Type G / Screw Terminal	Schuko Type F / British Type G / Screw Terminal
Transformer Type	Toroidal core
Efficiency	98 %
Phase	Single phase
Wave form	Sine wave - no distortion
Display	Green LED to indicate Power on
Soft Start	No
Galvanic Isolation	Yes
Overcurrent Protection	Air switch: 6A 230V	Air switch: 16A 230V	Air switch: 16A 230V	Air switch: 25A 230V	Air switch: 32A 230V
Short Circuit Protection	Circuit breaker: 3A 230V	Circuit breaker: 4A 230V	Circuit breaker: 12A 230V	Circuit breaker: 15A 230V (max. power per socket 3450W)	Circuit breaker: 15A 230V (max. power per socket 3450W)
Overheat Protection	No	No	No	Fan for cooling the core when overheating	Fan for cooling the core when overheating
Frequency	50/60 Hz
Product Dimensions (H x L x W)	10.0 x 20.6 x 19.2 cm	12.4 x 22.6 x 21.7 cm	14.9 x 26.8 x 25.7 cm	16.7 x 31.0 x 31.2 cm	16.7 x 36.2 x 35.0 cm
Weight	4.7 kg	7.7 kg	14.5 kg	21.6 kg	30.6 kg
