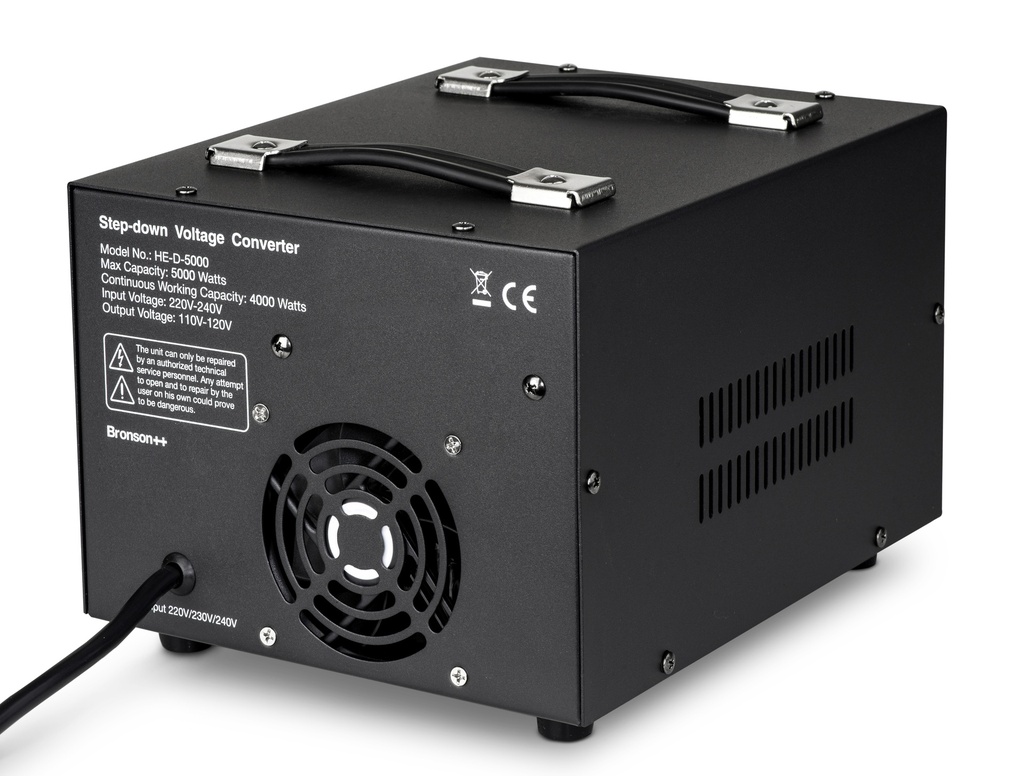

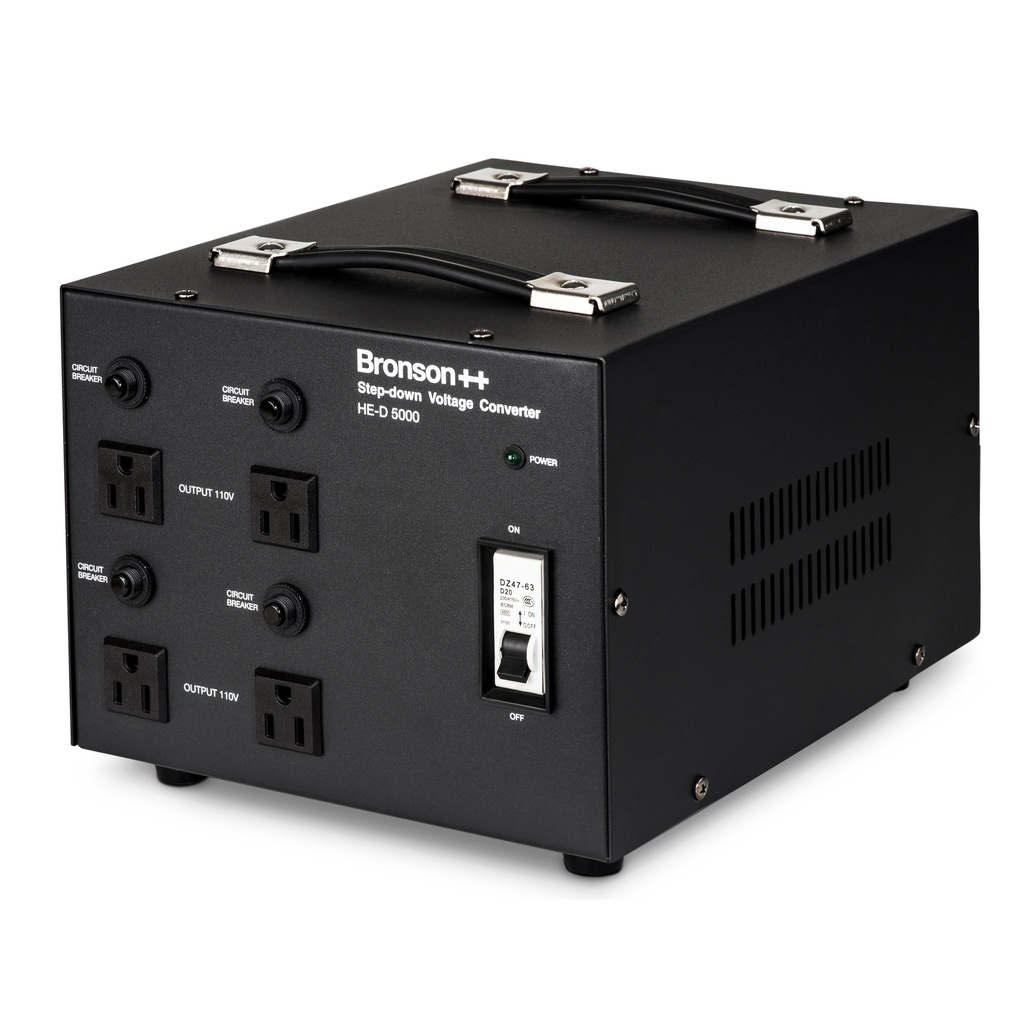

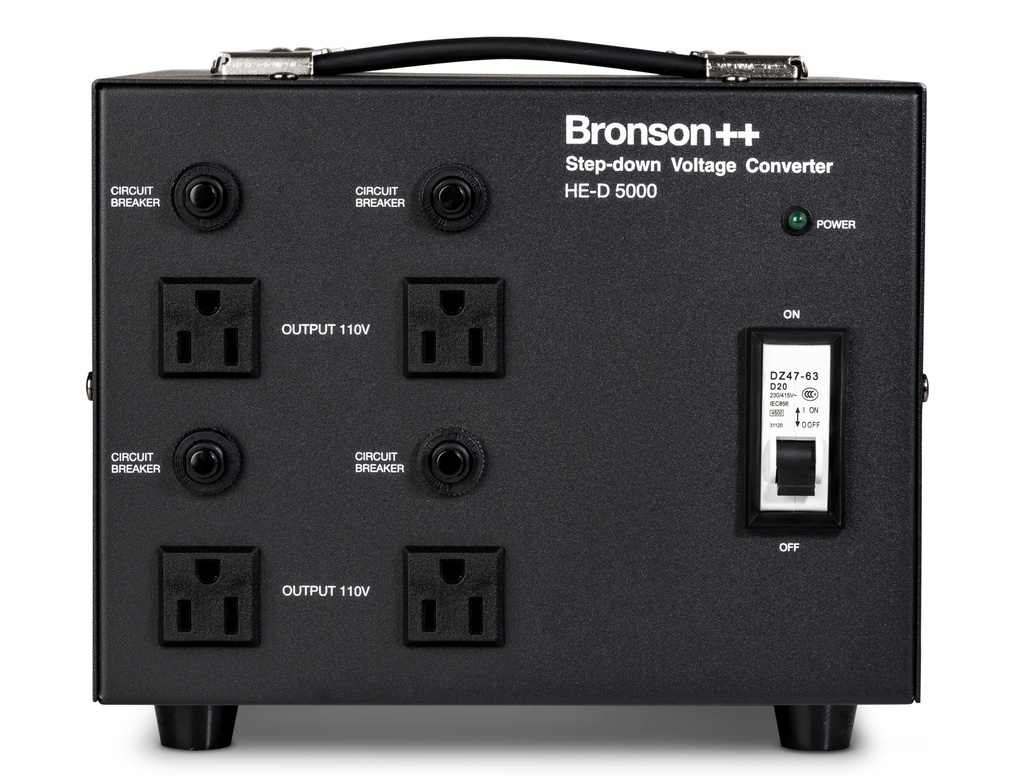

Bronson HE-D 5000

https://www.bronson-energy.com/web/image/product.template/71/image_1920?unique=f03156f

5000 Watts - Peak Power Output
4000 Watts - Continuous Output

The Bronson HE-D converts voltage down (from 230V to 110V) enabling 110V appliances to run on 230V electrical power grids.


  • Max. capacity: 5000W

  • Continuous capacity: 4000W

  • Input: 230V (Plug: Schuko Type F)

  • Output: 110V (Sockets: American Type B)

  • Transmission efficiency: 98%

229.00 € 229.0 EUR 229.00 €

229.00 лв

Not Available For Sale

  • Plug Type
  • Condition

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification
Maximum Power 5000W
Continuous Power 4000W (when operating longer than 15 min)
Input Voltage 200 - 240V AC
Input Connection IEC cord with Schuko Type F plug
IEC cord with British Type G plug
Output Voltage 100 - 120V AC (corresponds to half the input voltage)
Output Connection 4x American Type B sockets
Transformer Type Toroidal core
Efficiency 98 %
Phase Single phase
Wave form Sine wave, no distortion
Display Green LED to indicate "Power on"
Soft Start Yes
Galvanic Isolation No
Overcurrent Protection Air switch: 20A, 230V
Short Circuit Protection 15A, 110V (max. power per socket 1650W)
Overheat Protection No
Frequency 50/60 Hz
Product Dimensions (H x L x W) 16.6 x 28.5 x 22.0 cm
Weight 12.3 kg
Product Dimensions Shematic
Specification he-d-3000
Bronson HE-D 3000 		he-d-4000
Bronson HE-D 4000 		he-d-5000
Bronson HE-D 5000
Maximum Power 3000W 4000W 5000W
Continuous Power 2400W (when operating longer than 15 min) 3200W (when operating longer than 15 min) 4000W (when operating longer than 15 min)
Input Voltage 200 - 240V AC 200 - 240V AC 200 - 240V AC
Input Connection IEC cord with Schuko Type F plug
IEC cord with British Type G plug		 IEC cord with Schuko Type F plug
IEC cord with British Type G plug		 IEC cord with Schuko Type F plug
IEC cord with British Type G plug
Output Voltage 100 - 120V AC (corresponds to half the input voltage) 100 - 120V AC (corresponds to half the input voltage) 100 - 120V AC (corresponds to half the input voltage)
Output Connection 4x US Type B Socket
 4x US Type B Socket
 4x US Type B Socket
Transformer Type Toroidal Core Toroidal Core
 Toroidal Core
Efficiency 98%
98%
98%
Phase single phase single phase single phase
Wave form Sine wave, no distortion
Sine wave, no distortion
Sine wave, no distortion
Display Green LED to indicate "Power on"
Green LED to indicate "Power on"
Green LED to indicate "Power on"
Soft Start Yes Yes Yes
Galvanic Isolation No No No
Overcurrent Protection Circuit breaker: 15A, 110V (max. power per socket 1650W)
Circuit breaker: 15A, 110V (max. power per socket 1650W)
 Circuit breaker: 15A, 110V (max. power per socket 1650W)
Short Circuit Protection
Air switch: 16A, 230V
Air switch: 16A, 230V
Air switch: 20A, 230V
Overheat Protection
Yes Yes Yes
Frequency
50/60 Hz
50/60 Hz
50/60 Hz
Product Dimensions (H x L x W)
16.6 x 28.5 x 22.0 cm
 16.6 x 28.5 x 22.0 cm
 16.6 x 28.5 x 22.0 cm
Weight 16.1kg 19.8kg 24.5kg
