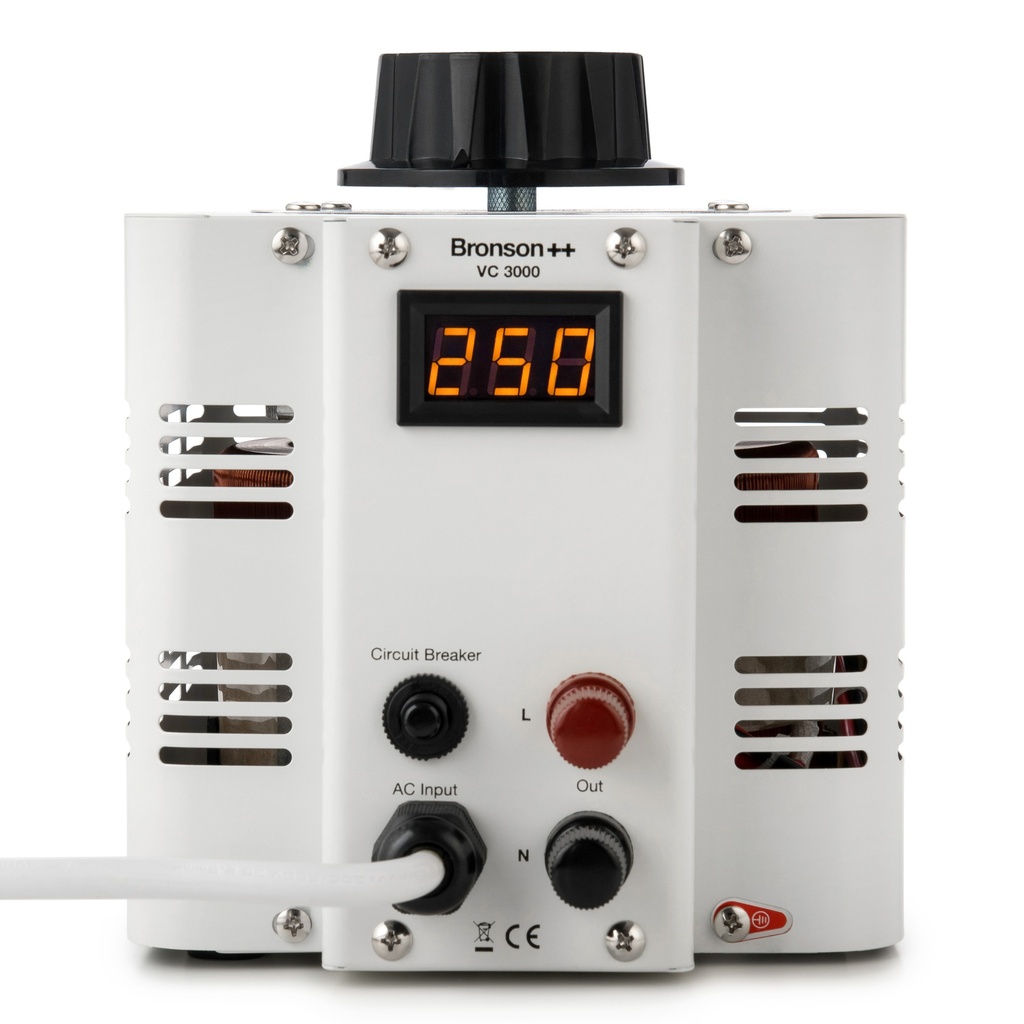

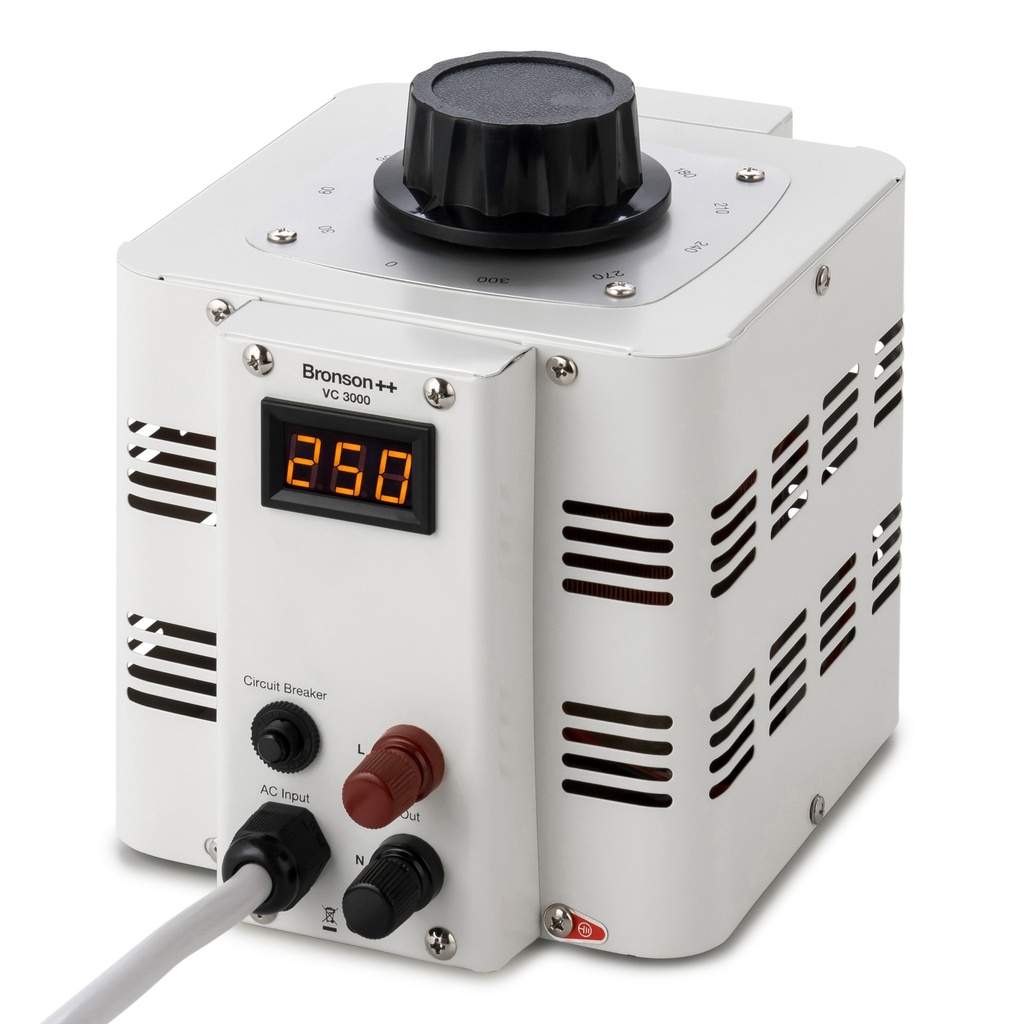

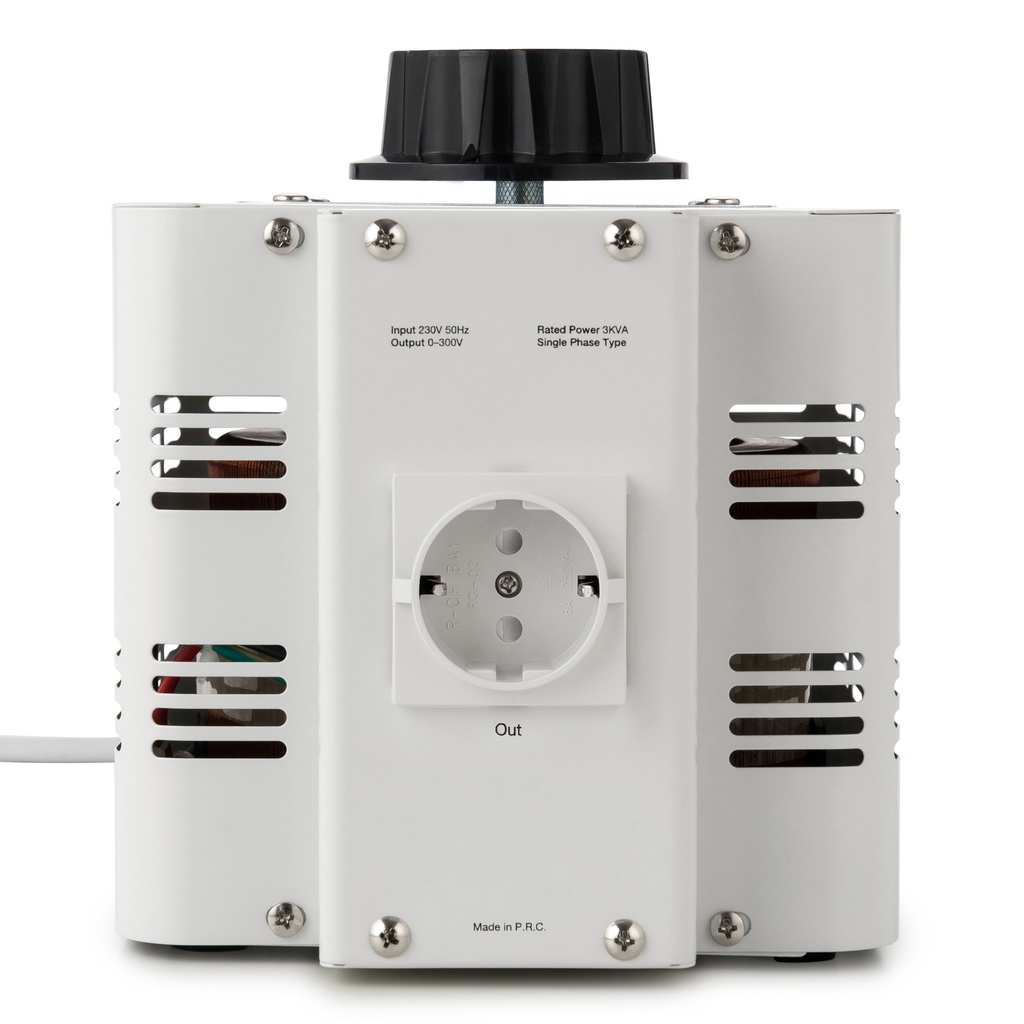

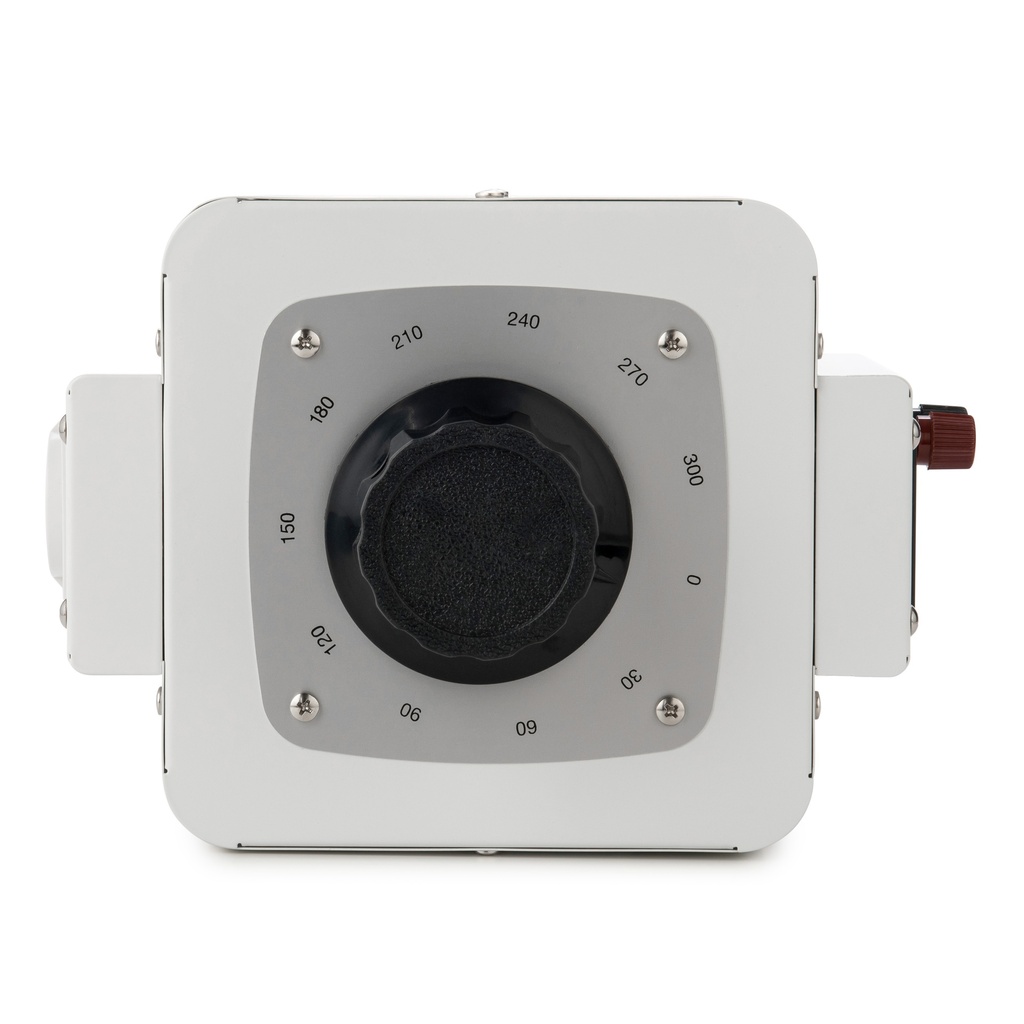

Bronson VC 3000

3000 Watts - Peak Power Output
2400 Watts - Continuous Output

The Bronson VC adjusts 230V AC input into any output between 0V and 300V AC.

This combination does not exist.

Documents

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification
Maximum Power	3000W
Maximum Current	12A
Input Voltage	220 - 240V AC
Input Connection	Schuko Type F
Output Voltage	0 - 300V AC
Output Connection	Schuko Type F, Screw Terminal
Efficiency	≥ 90%
Phase	Single phase
Display	Will light up when current is detected and indicate the output voltage with high accuracy
Soft Start	No
Galvanic Isolation	No
Overcurrent Protection	Circuit breaker 12A, 230V
Short Circuit Protection	No
Overheat Protection	No
Frequency	50/60 Hz
Product Dimensions (H x L x W)	16.0 x 22.3 x 17.3 cm
Weight	9.3 kg

Specification	Bronson VC 1000	Bronson VC 3000
Maximum Power	1000W	3000W
Maximum Current	4A	12A
Input Voltage	220 - 240V AC	220 - 240V AC
Input Connection	Schuko Type F	Schuko Type F
Output Voltage	0 - 300V AC	0 - 300V AC
Output Connection	Schuko Type F, Screw Terminal	Schuko Type F, Screw Terminal
Efficiency	≥ 90%	≥ 90%
Phase	Single phase	Single phase
Display	Will light up when current is detected and indicate the output voltage with high accuracy	Will light up when current is detected and indicate the output voltage with high accuracy
Soft Start	No	No
Galvanic Isolation	No	No
Overcurrent Protection	Circuit breaker 4A, 230V	Circuit breaker: 12A, 230V
Short Circuit Protection	No	No
Overheat Protection	No	No
Frequency	50/60 Hz	50/60 Hz
Product Dimensions (H x L x W)	12.8 x 22.3 x 17.3 cm	16.0 x 22.3 x 17.3 cm
Weight	6.3 kg	9.3 kg
