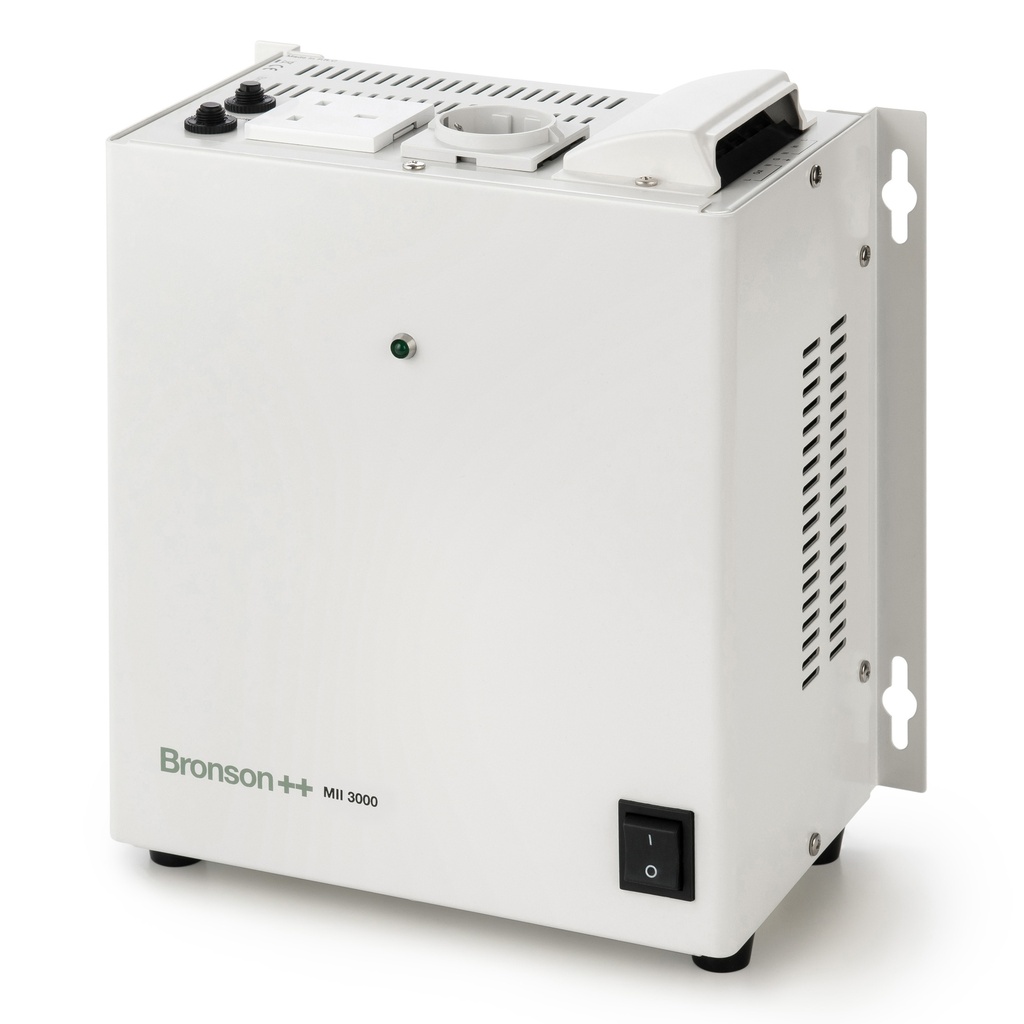

Bronson MII 3000

The Bronson MII 3000 is a robust high-power isolation transformer with step-up capability — the professional standard for marine shore power, stage productions and industrial environments with demanding isolation requirements.

Max. 3000W / Continuous 2400W — handles large marine systems, stage lighting rigs and industrial equipment
Step-up + galvanic isolation in one — 110V or 230V in, fully isolated 230V out
Marine shore power standard — prevents galvanic corrosion and eliminates shock risk when connected to harbour electricity
Stage and event safe — isolated power protects crew and equipment in high-traffic professional environments
Ideal for — larger vessels, stage and event productions, industrial workshops and professional broadcast setups

Condition
- NEW
- USED

234.44 € 279.00 €

🚚 Excl. Shipping
⏱️ Shipping: 10-20 Business days
🛡️ 30-Day Money-Back Guarantee

Add to cart Buy now

Quantity:

Customer Reviews

Specification
Maximum Power	3000W
Continuous Power	2400W (when operating longer than 15 min)
Input Voltage	100 - 120V AC or 200 - 240V AC
Input Connection	Screw Terminal
Output Voltage	200 - 240V AC (corresponds to input voltage or twice the input voltage)
Output Connection	- Schuko Type F - British Type G - Screw Terminal
Transformer Type	Toroidal core
Efficiency	98 %
Phase	Single phase
Wave form	Sine wave, no distortion
Display	Green LED to indicate "Power on"
Soft Start	Yes
Galvanic Isolation	Yes
Overcurrent Protection	Air switch: 16A, 230V
Short Circuit Protection	Circuit breaker: 12A, 230V
Overheat Protection	No
Frequency	50/60 Hz
Product Dimensions (H x L x W)	14.9 x 26.8 x 25.7 cm
Weight	15.0 kg

Specification	Bronson MII 300	Bronson MII 500	Bronson MII 1000	Bronson MII 2000	Bronson MII 3000	Bronson MII 4500	Bronson MII 6000	Bronson MII 8000
Maximum Power	300W	500W	1000W	2000W	3000W	4500W	6000W	8000W
Continuous Power	240W (when operating longer than 15 min)	400W (when operating longer than 15 min)	800W (when operating longer than 15 min)	1600W (when operating longer than 15 min)	2400W (when operating longer than 15 min)	3600W (when operating longer than 15 min)	4800W (when operating longer than 15 min)	6400W (when operating longer than 15 min)
Input Voltage	100 - 120V AC or 200 - 240V AC	100 - 120V AC or 200 - 240V AC	100 - 120V AC or 200 - 240V AC	100 - 120V AC or 200 - 240V AC	100 - 120V AC or 200 - 240V AC	100 - 120V AC or 200 - 240V AC	100 - 120V AC or 200 - 240V AC	100 - 120V AC or 200 - 240V AC
Input Connection	IEC cord with Schuko Type F plug	IEC cord with Schuko Type F plug	IEC cord with Schuko Type F plug	IEC cord with Schuko Type F plug	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal
Output Voltage	200 - 240V AC (corresponds to input voltage or twice the input voltage)	200 - 240V AC (corresponds to input voltage or twice the input voltage)	200 - 240V AC (corresponds to input voltage or twice the input voltage)	200 - 240V AC (corresponds to input voltage or twice the input voltage)	200 - 240V AC (corresponds to input voltage or twice the input voltage)	200 - 240V AC (corresponds to input voltage or twice the input voltage)	200 - 240V AC (corresponds to input voltage or twice the input voltage)	200 - 240V AC (corresponds to input voltage or twice the input voltage)
Output Connection	Schuko Type F socket	Schuko Type F socket	Schuko Type F socket	Schuko Type F socket	- Schuko Type F - British Type G - Screw Terminal	- Schuko Type F - British Type G - Screw Terminal	- Schuko Type F - British Type G - Screw Terminal	- Schuko Type F - British Type G - Screw Terminal
Transformer Type	Toroidal core	Toroidal core	Toroidal core	Toroidal core	Toroidal core	Toroidal core	Toroidal core	Toroidal core
Efficiency	98 %	98 %	98 %	98 %	98 %	98 %	98 %	98 %
Phase	Single phase	Single phase	Single phase	Single phase	Single phase	Single phase	Single phase	Single phase
Wave form	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion
Display	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"
Soft Start	No	No	No	Yes	Yes	No	No	No
Galvanic Isolation	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Overcurrent Protection	Circuit Breaker 3A for 230V,6A for 110V	Circuit Breaker 3A for 230V,6A for 110V	Circuit Breaker 4A for 230V,8A for 110V	Circuit Breaker 7A for 230V,14A for 110V	Circuit Breaker 12A for 230V,24A for 110V	Circuit Breaker 16A for 230V,32A for 110V	Circuit Breaker 25A for 230V,50A for 110V	Circuit Breaker 32A for 230V,63A for 110V
Short Circuit Protection	No	No	No	No	No	Circuit breaker: 15A, 110V (max. power per socket 3450W)	Circuit breaker: 15A, 230V (max. power per socket 3450W)	Circuit breaker: 15A, 230V (max. power per socket 3450W)
Overheat Protection	Yes	Yes	Yes	Yes	Yes	Fan for cooling the core when overheating	Fan for cooling the core when overheating	Fan for cooling the core when overheating
Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Product Dimensions (H x L x W)	10.0 x 20.6 x 19.2 cm	10.0 x 20.6 x 19.2 cm	12.4 x 22.6 x 21.7 cm	14.9 x 26.8 x 25.7 cm	14.9 x 26.8 x 25.7 cm	16.7 x 31.2 x 31.0 cm	16.7 x 36.2 x 35.0 cm	16.7 x 36.2 x 35.0 cm
Weight	4.7 kg	5.7 kg	7.5 kg	12.8 kg	15.0 kg	21.3 kg	26.4 kg	30.6 kg
