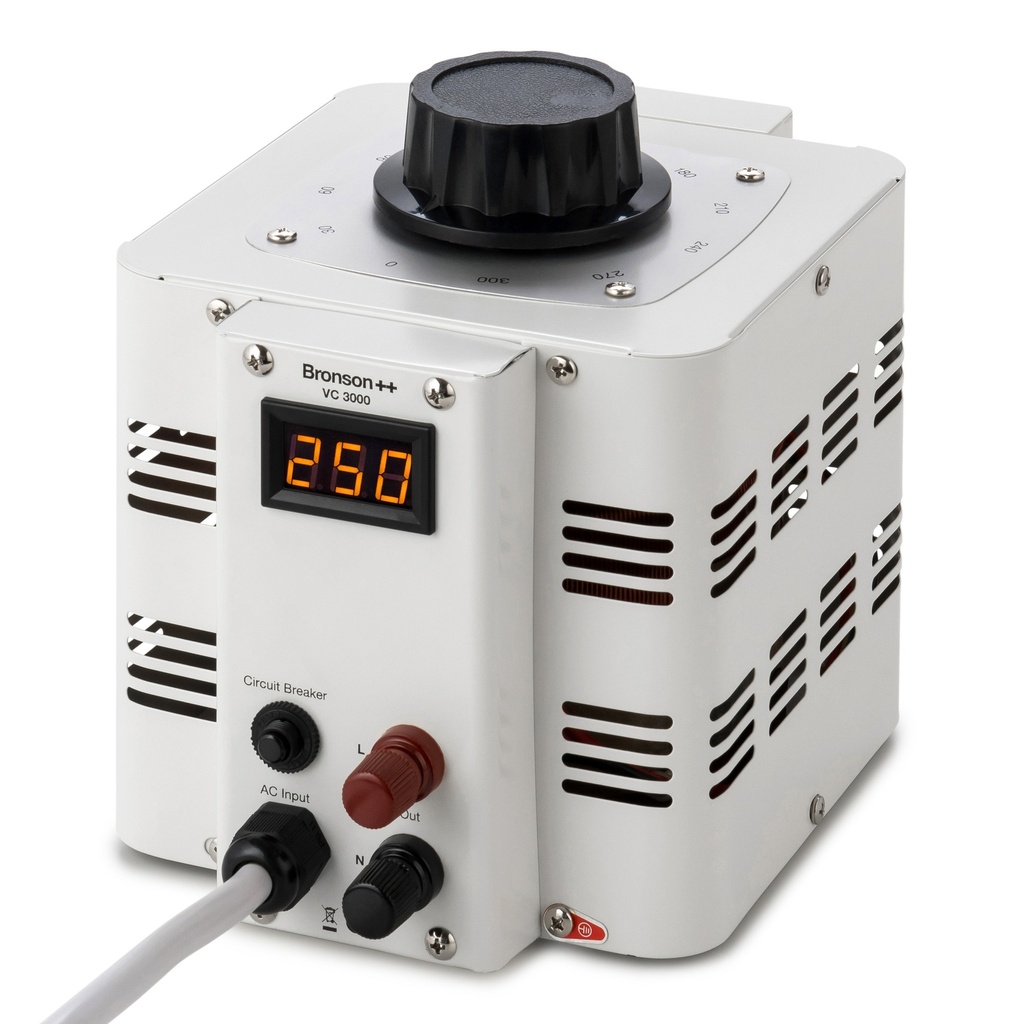

Bronson VC 3000

The Bronson VC 3000 is a higher-power variable transformer (Variac) designed for workshops and test fields where adjustable AC voltage and live measurement are required for repeatable results.

Max. 3000W / 12A — supports larger loads and longer test cycles
0–300V adjustable output — controlled ramp-up for commissioning and functional verification
Built-in voltmeter + ammeter — direct visibility of voltage and current during load testing
Schuko output — convenient connection for typical EU equipment in service environments
Ideal for — appliance testing, motor/transformer evaluation, production QA checks, service workshops

Plug Type
- EU
- UK
Condition
- NEW
- REFURBISHED

179.82 € 214.00 €

Excl. Shipping
Shipping: 10-20 Business days
30-Day Money-Back Guarantee

Add to cart Buy now

Quantity:

Out of Stock

Get notified when back in stock

Bronson VC 3000 — Variac 0–300 V

Variable transformer for workshop and test bench. 0–300 V stepless, up to 3000 W / 12 A, with a digital voltage display.

Up to 3000 W / 12 A for the test bench

The Variac delivers up to 3000 W at 12 A — for larger test setups, service environments, and higher-draw loads in workshop use.

230 V input, 0–300 V stepless output

From a 220–240 V line, the adjustable voltage regulator sets the output steplessly from 0 to 300 V — for controlled ramp-up and function tests below and above nominal.

Schuko output and screw terminal (EU/UK)

Input and output are Schuko Type F; the output also offers a screw terminal rated to 12 A. For quick swaps of test objects or fixed wiring; plug type EU or UK.

Use case 01

Workshop & test bench

Controlled ramp-up of larger units during commissioning

Use case 02

Large vintage setups

Extensive vintage hi-fi systems on a regulated voltage

Frequently asked questions

Does the VC 3000 show the set output voltage accurately?

Yes. The backlit display lights up when voltage is present and shows the set value accurately.

This lets you dial in and read the target test voltage on the control knob — useful for calibration and repeat test runs.

How do the VC 3000 and VC 1000 differ?

The VC 3000 delivers 3000 W at 12 A, the VC 1000 1000 W at 4 A.

Because the output current is fixed-limited, current is what counts at low voltage: at 100 V that's up to 1200 W (12 A) on the VC 3000, but only 400 W (4 A) on the VC 1000. Full rated power is available only near the top of the voltage range.

Are spare parts available for the VC 3000?

Yes. Spare parts such as the wiper contact, voltmeter, or control knob are available through Bronson support.

For a damaged wiper contact or display, give the model and the part — support confirms availability and shipping. Contact: +49 (0)30 466 988 80.

Is the VC 3000 suitable for controlled ramp-up of larger devices?

Yes. The VC 3000 sets 0–300 V steplessly up to 3000 W and suits controlled ramp-up during commissioning and function testing.

Ramping the voltage up slowly lets you start and evaluate motors, transformers, and larger test items gently. Stay within 12 A.

Our technology.

Large, grippy control dial

A large, grippy control dial on the front sets the output voltage steplessly across the full 0 to 300 V range. It lets you hit the target voltage precisely and finely — even when readjusting repeatedly at the bench during ongoing tests.

Toroidal core with copper winding

The VC 3000 runs on a toroidal core with copper winding, sized for 3000 W at 12 A. The design holds efficiency at ≥ 90 % and keeps loss heat low under load — even during longer test cycles at the bench.

Specifications - Bronson VC Series compared

Specifications	Bronson VC 1000 Bronson VC 1000	Bronson VC 3000 Bronson VC 3000	Bronson VC 5000 Bronson VC 5000	Bronson VC 10000 Bronson VC 10000
Maximum Power	1000 W	3000 W	5000 W	10000 W
Maximum Current	4 A	12 A	20 A	40 A
Input Voltage	220 - 240V AC			—
Input Connection	Schuko Type F		Screw Terminal
Output Voltage	0 - 300V AC
Output Connection	Schuko Type F / Screw Terminal		Screw Terminal
Efficiency	≥ 90% %
Phase	Single phase
Display	Will light up when current is detected and indicate output voltage
Soft Start	No
Galvanic Isolation	No
Overcurrent Protection	Circuit breaker 4A 230V	Circuit breaker 12A 230V	Circuit breaker 20A 230V	No
Short Circuit Protection	No
Overheat Protection	No
Frequency	50/60 Hz
Product Dimensions (H x L x W)	12.8 x 22.3 x 17.3 cm	16.0 x 22.3 x 17.3 cm	18.5 x 27.7 x 23.7 cm	18.5 x 36.7 x 33.7 cm
Weight	6.3 kg	9.3 kg	17.5 kg	20.5 kg
