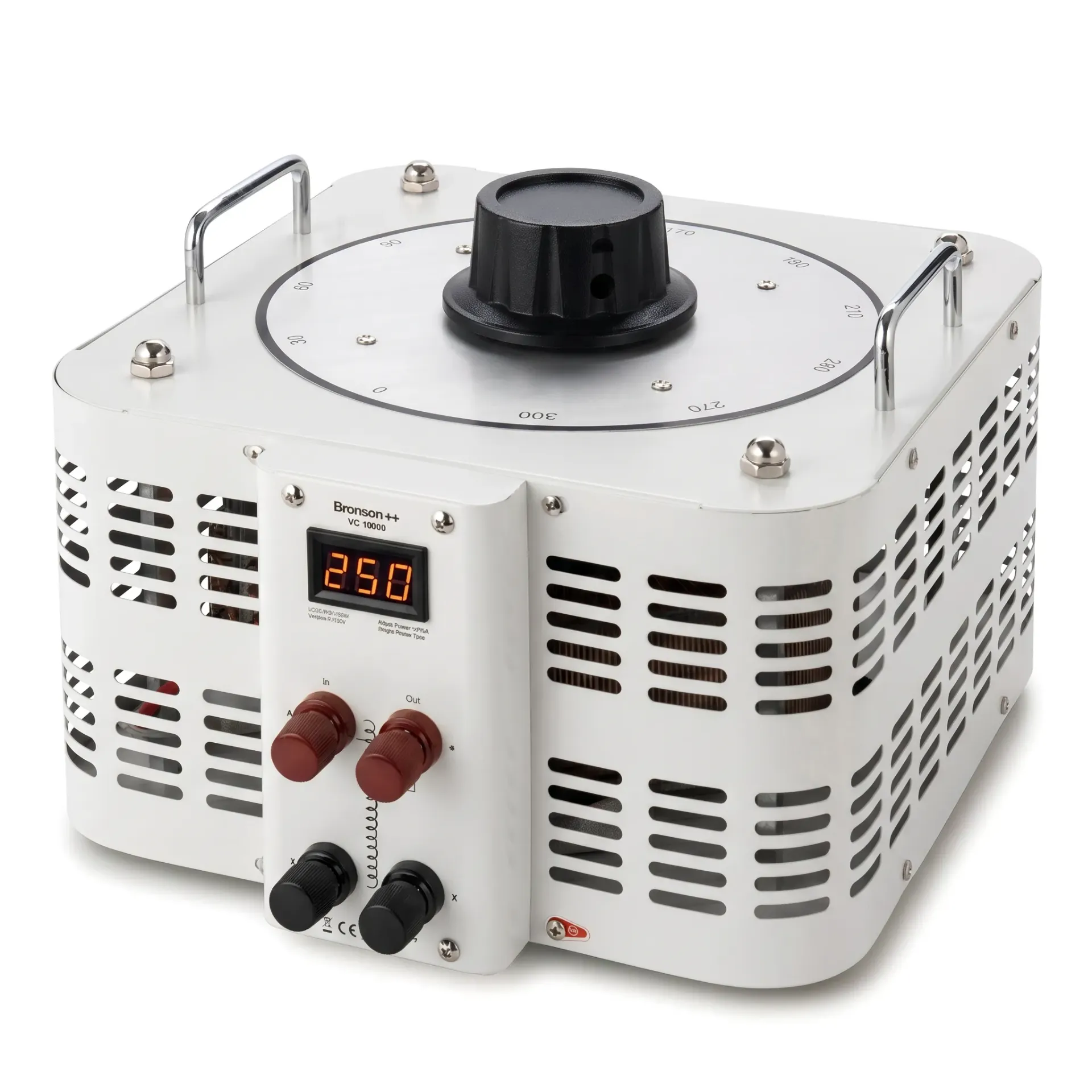

Bronson VC 10000

The Bronson VC 10000 is an industrial variable transformer (Variac) with toroidal core design for stationary test benches and heavy loads — built for hard-wired terminal connection and continuous load monitoring.

Max. 10,000W / 40A — for high-power loads in continuous industrial testing
0–300V continuously adjustable — repeatable voltage profiles for load simulations, motor testing and commissioning
Screw terminal output (up to 40A) — for fixed installations, fixtures and control panel integration
Digital voltage display — precise real-time monitoring of output voltage
Toroidal core design — high efficiency, quiet operation, built for continuous duty
Ideal for — industrial test benches, end-of-line testing, load and heater testing, motor testing, laboratories and workshops

Condition
- NEW
- USED

449.10 € 534.45 €

Excl. Shipping
Shipping: 10-20 Business days
30-Day Money-Back Guarantee

Add to cart Buy now

Quantity:

Out of Stock

Get notified when back in stock

Bronson VC 10000 — Variac 10,000 W / 40 A

Industrial variable transformer for test benches: 0–300 V stepless, 10,000 W at 40 A, screw terminals and digital display. Built for continuous duty.

10,000 W at 40 A for industrial continuous loads

As a variac, the VC 10000 delivers 10,000 W at 40 A and powers high-draw loads such as test loads, motors and heating elements in continuous industrial duty.

0–300 V output from 220–240 V, stepless

From 220–240 V the variac adjusts output steplessly from 0 to 300 V, so test voltages can be dialed in precisely and repeated on demand.

Screw terminals in and out, rated up to 40 A

The VC 10000 uses screw terminals in and out, rated up to 40 A, with no plug socket. The variac wires directly into test rigs or control panels.

Use case 01

Industrial Test Bench

0–300 V driving high-power loads in continuous testing

Frequently asked questions

Does the Bronson VC 10000 have built-in overload protection?

No, the VC 10000 has no built-in overload, short-circuit or overheat protection.

For operation at up to 40 A, fit suitable external protection such as an upstream fuse or circuit breaker. That keeps the test setup protected.

Are the carbon brushes on the VC 10000 replaceable?

Yes, the carbon brushes are a wear part and are available as spares through Bronson support.

On heavily used test benches the brushes wear over time. Replacing them restores clean contact with the winding, so you don't have to replace the unit.

Can the VC 10000 be set to a repeatable test voltage?

Yes, the VC 10000 adjusts 0–300 V steplessly and shows the value on the digital display.

That lets you return to the same test voltage for load and motor testing. Stepless control gives exact intermediate values instead of fixed steps.

Does the VC 10000 get hot in continuous operation?

No, thanks to the toroidal core and an efficiency of at least 90 %, it stays moderately warm in continuous use.

The low-loss toroidal design produces less waste heat at 10,000 W, so the variac suits stationary test benches in continuous duty.

Our technology.

Stepless control via wiper contact

The VC 10000 is built on a toroidal transformer with a continuous copper winding. A carbon wiper contact travels across the exposed winding surface and taps the voltage directly — no tap points, no switching steps. This adjusts the output smoothly from 0 to 300 V with no voltage jumps when you fine-tune the setting. A tap-switched transformer cannot deliver this kind of continuous, step-free curve.

Toroidal core with low losses

The toroidal geometry carries the magnetic flux through the core with minimal loss. Idle current and stray losses stay low, and the VC 10000 holds an efficiency of at least 90 %. Lower loss means less waste heat under a 10,000 W continuous load. The variac therefore runs in stationary continuous duty on a test bench without forced cooling.

	VC 1000 1000W	VC 3000 3000W	VC 5000 5000W	VC 10000 10000W
Maximum current	4A	12A	20A	40A
Input voltage	220–240V AC
Output voltage	0–300V AC (continuously adjustable)
Input connection	Schuko Type F		Screw terminal
Output connection	Schuko F · Screw terminal		Screw terminal
Overcurrent protection	Breaker 4A	Breaker 12A	Breaker 20A	—
Short circuit protection	No
Overheat protection	No
Soft start	No
Galvanic isolation	No
Display	Digital voltmeter — lights on load, shows output voltage
Efficiency	≥90% · Single phase · 50/60 Hz
Dimensions (H×L×W cm)	12.8×22.3×17.3	16×22.3×17.3	18.5×27.7×23.7	25×40.5×33.7
Weight	6.3 kg	9.3 kg	17.5 kg	20.8 kg
