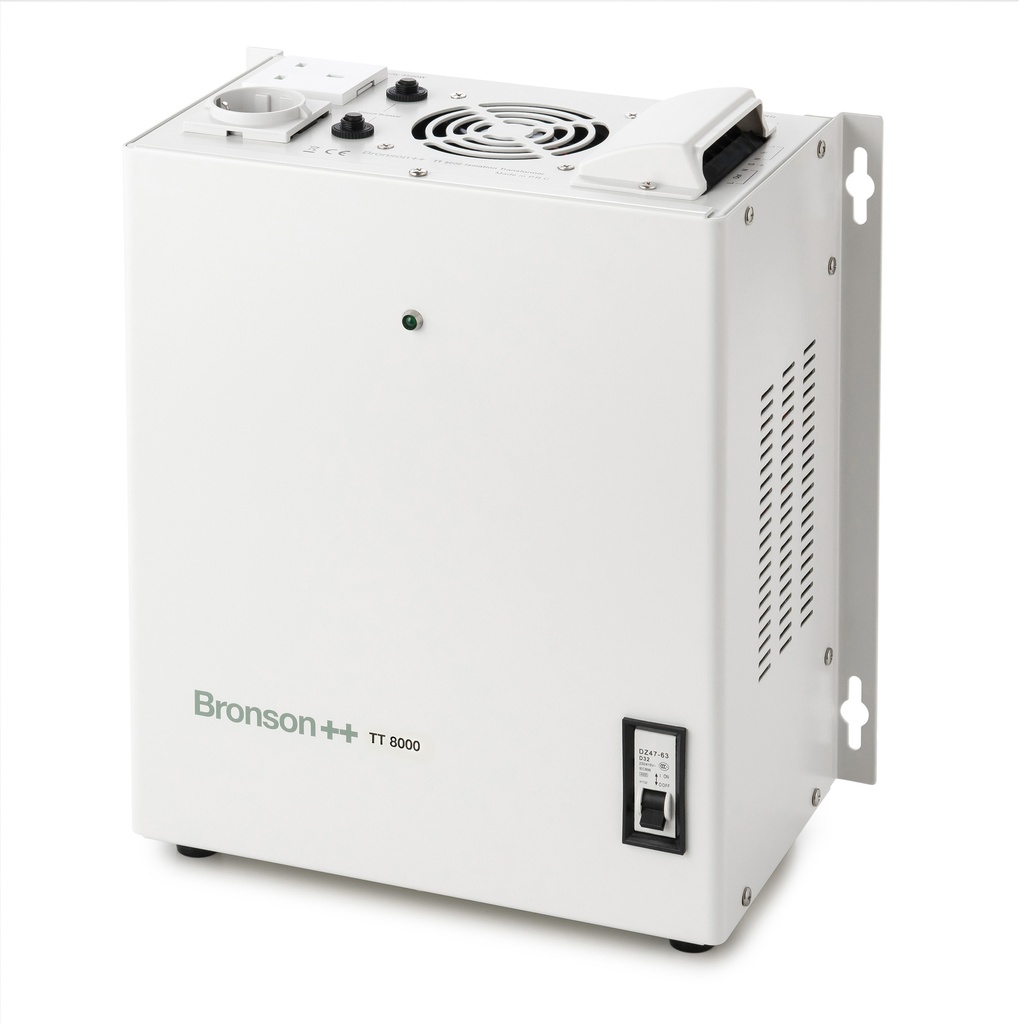

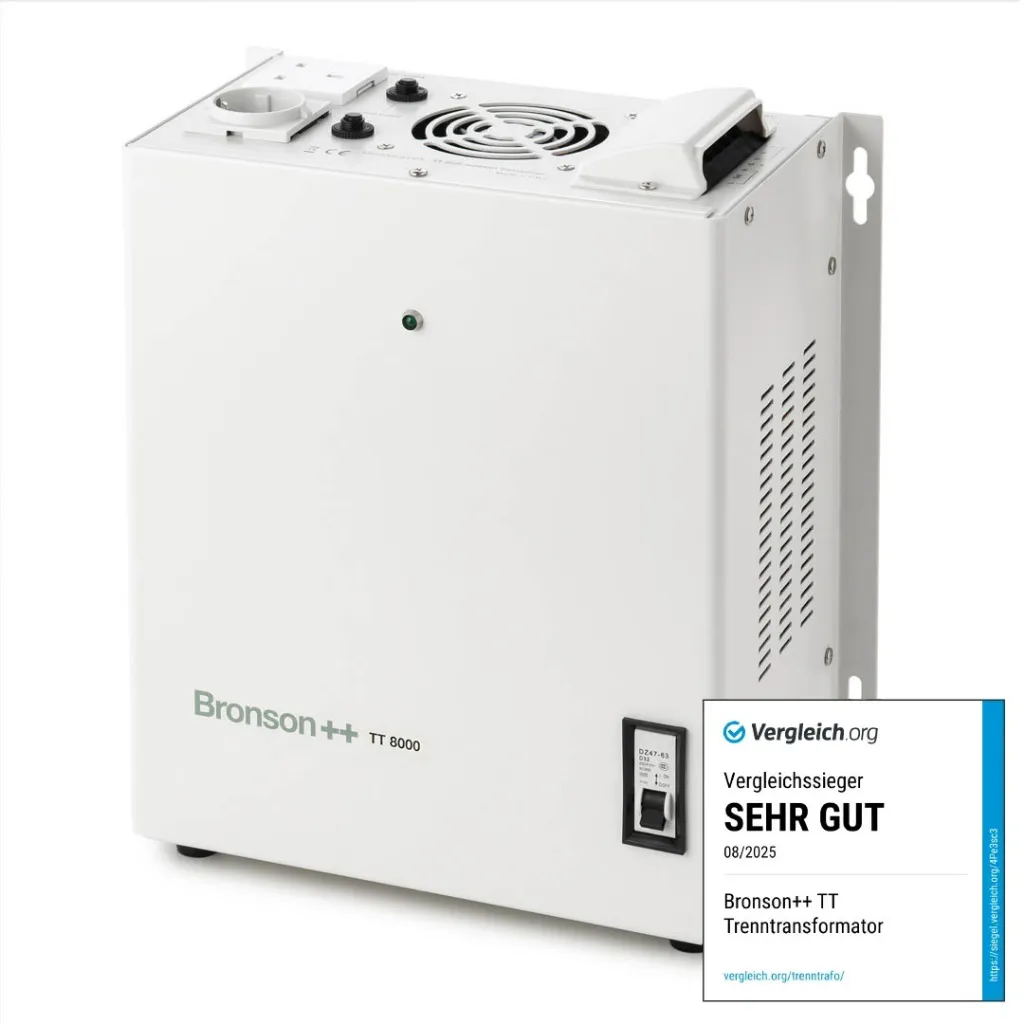

Bronson TT 8000

Bronson TT 8000

The Bronson TT creates a 230V AC output circuit isolated from the 230V AC power supply input with:

Max. capacity: 8000W
Continuous capacity: 6400W (when operating longer than 15 min.)
Input: 230V (via screw terminal)
Output: 230V (via screw terminal or sockets: EU, UK)
Transmission efficiency: 98%

Condition
- NEW
- USED

402.50 € 479.00 €

Add to cart Buy now

Add to cart Buy now

🚚 Excl. Shipping € Shipping in Free shipping in DE
⏱️ Shipping: 10-20 Business days
🛡️ 30-Day Money-Back Guarantee

Customer Reviews

Specification
Maximum Power	8000W
Continuous Power	6400W (when operating longer than 15 min)
Input Voltage	200 - 240V AC
Input Connection	Screw Terminal
Output Voltage	200 - 240V AC (corresponds to input voltage)
Output Connection	- Schuko Type F - British Type G - Screw Terminal
Transformer Type	Toroidal core
Efficiency	98%
Phase	Single phase
Wave form	Sine wave, no distortion
Display	Green LED to indicate "Power on"
Soft Start	No
Galvanic Isolation	Yes
Overcurrent Protection	Air switch: 32A, 230V
Short Circuit Protection	Circuit breaker: 15A, 230V (max. power per socket 3450W)
Overheat Protection	Fan for cooling the core when overheating
Frequency	50/60 Hz
Product Dimensions (H x L x W)	16.7 x 36.2 x 35.0 cm
Weight	30.6 kg

Product Dimensions Shematic

Specification	Bronson TT 500	Bronson TT 1000	Bronson TT 3000	Bronson TT 5000	Bronson TT 8000
Maximum Power	500W	1000W	3000W	5000W	8000W
Continuous Power	400W (when operating longer than 15 min)	800W (when operating longer than 15 min)	2400W (when operating longer than 15 min)	4000W (when operating longer than 15 min)	6400W (when operating longer than 15 min)
Input Voltage	200 - 240V AC	200 - 240V AC	200 - 240V AC	200 - 240V AC	200 - 240V AC
Input Connection	IEC cord with Schuko Type F plug	IEC cord with Schuko Type F plug	Screw Terminal	Screw Terminal	Screw Terminal
Output Voltage	200 - 240V AC (corresponds to input voltage)	200 - 240V AC (corresponds to input voltage)	200 - 240V AC (corresponds to input voltage)	200 - 240V AC (corresponds to input voltage)	200 - 240V AC (corresponds to input voltage)
Output Connection	Schuko Type F socket	Schuko Type F socket	- Schuko Type F - British Type G - Screw Terminal	- Schuko Type F - British Type G - Screw Terminal	- Schuko Type F - British Type G - Screw Terminal
Transformer Type	Toroidal core	Toroidal core	Toroidal core	Toroidal core	Toroidal core
Efficiency	98%	98%	98%	98%	98%
Phase	Single phase	Single phase	Single phase	Single phase	Single phase
Wave form	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion	Sine wave, no distortion
Display	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"	Green LED to indicate "Power on"
Soft Start	No	No	No	No	No
Galvanic Isolation	Yes	Yes	Yes	Yes	Yes
Overcurrent Protection	Air switch: 3A, 230V	Air switch: 4A, 230V	Air switch: 12A, 230V	Air switch: 25A, 230V	Air switch: 32A, 230V
Short Circuit Protection	No	No	No	Circuit breaker: 15A, 230V (max. power per socket 3450W)	Circuit breaker: 15A, 230V (max. power per socket 3450W)
Overheat Protection	Yes	Yes	Yes	Yes	Yes
Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Product Dimensions (H x L x W)	10.0 x 20.6 x 19.2 cm	12.4 x 22.6 x 21.7 cm	14.9 x 26.8 x 25.7 cm	16.7 x 31.0 x 31.2 cm	16.7 x 36.2 x 35.0 cm
Weight	4.7 kg	7.7 kg	14.5 kg	21.6 kg	30.6 kg

Documents

Manual-Handbuch-Bronson-TT.pdf

Sicherheitsinformationen TT.pdf

TT-8000 photos.pdf
