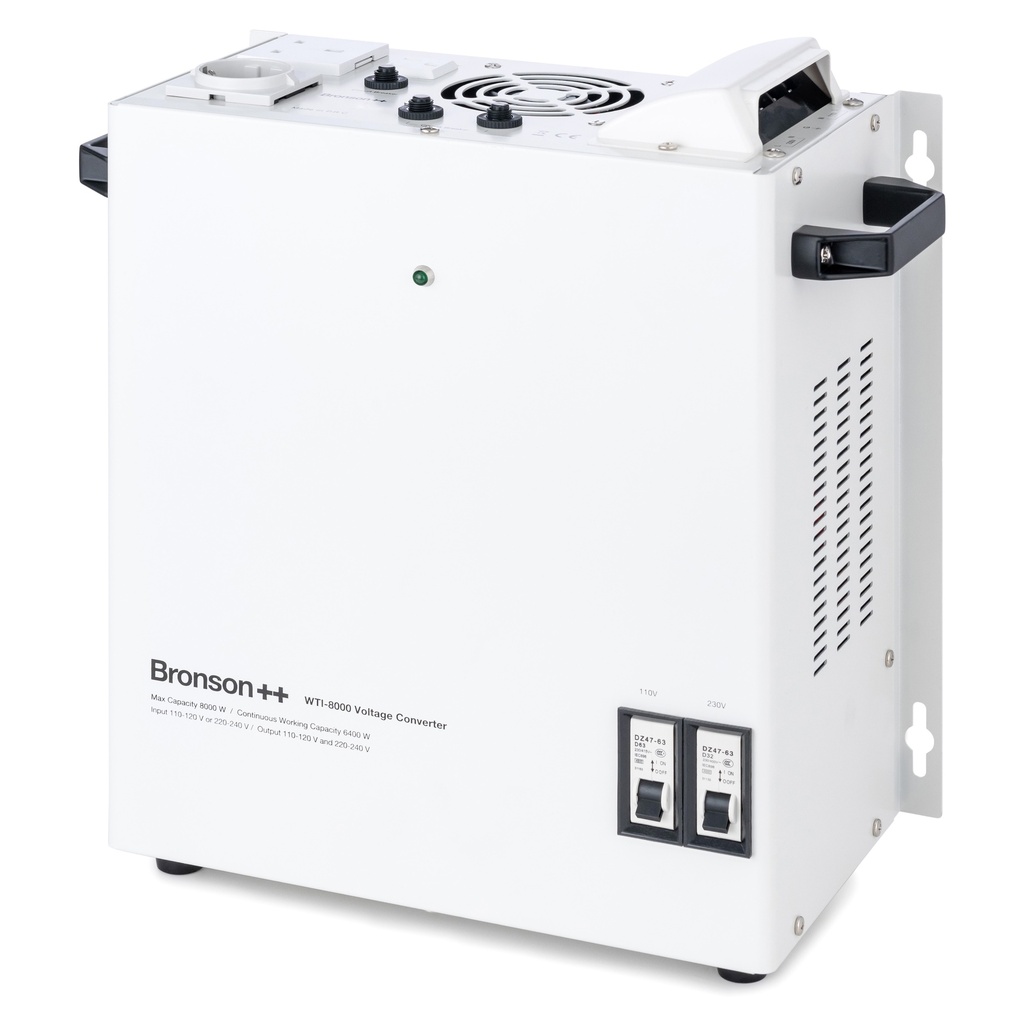

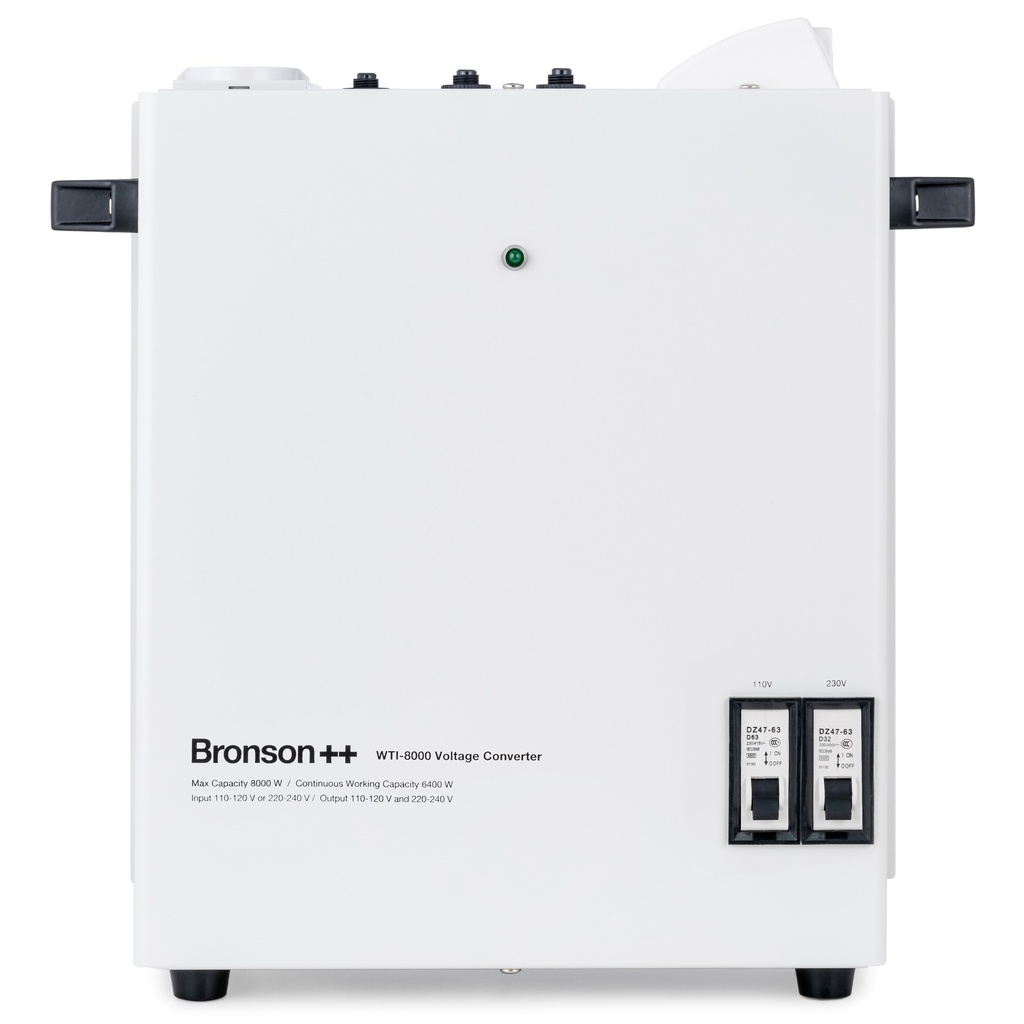

Bronson WTI 8000

The Bronson WTI 8000 is a high-capacity wall-mounted voltage converter — engineered for demanding industrial applications where large machines require stable, uninterrupted power.

Max. 8000W / Continuous 6400W — suitable for large CNC machines, industrial compressors, welding equipment and production lines
Converts both ways — 110V to 230V and 230V to 110V
Wall mountable — built for permanent installation in industrial and manufacturing environments
Screw terminals + universal sockets — EU (Schuko), UK (Type G) and US (Type B)
Ideal for — factories, production facilities and businesses with high-demand American or European equipment

Condition
- NEW
- USED

368.89 € 439.00 €

Excl. Shipping
Shipping: 10-20 Business days
30-Day Money-Back Guarantee

Add to cart Buy now

Quantity:

Out of Stock

Get notified when back in stock

Not sure what converter to buy?

Answer 3 questions and get a model recommendation, instantly.

Find the right converter →

Bronson WTI 8000 — Industrial Transformer

Wall-mount 8000W industrial converter 110V↔︎230V for factories and heavy machines. 6400W continuous, bidirectional, toroidal.

8000W Converter, 6400W Continuous Power

The WTI 8000 delivers 6400 watts continuous and up to 8000 watts maximum. It powers large device classes such as CNC machines, industrial compressors and welders on 110V or 230V.

Bidirectional 110V↔︎230V, Pure Sine Wave

The converter works both ways: 110 volts to 230 volts and 230 volts to 110 volts. The pure sine wave feeds voltage-sensitive electronics without distortion.

Schuko, UK Type G, US Type B + Terminal

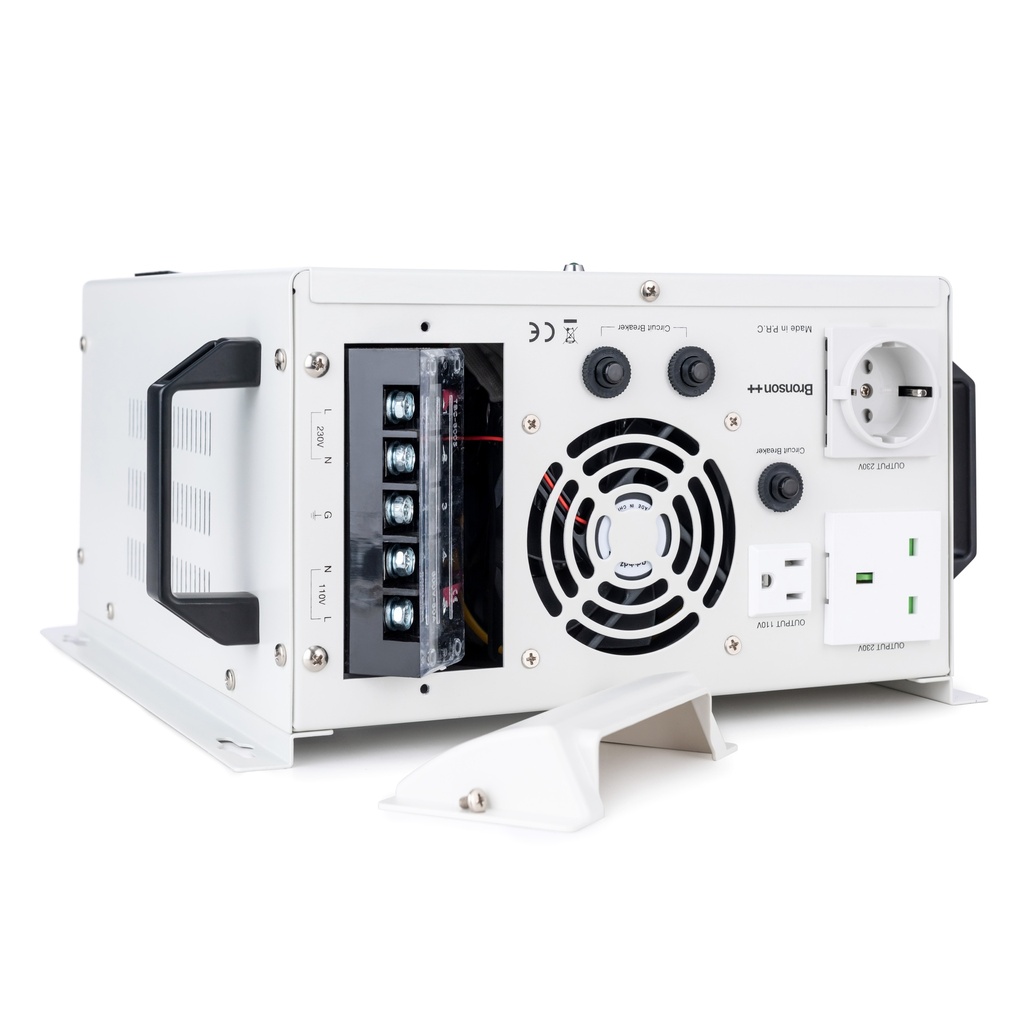

The outputs provide Schuko (Type F), UK Type G and US Type B. Input and output have screw terminals for permanent wiring into installations.

Use case 01

Motorhome with AC

Motorhomes with heavy loads like AC, traveling US↔EU

Use case 02

Workshop

Heavy US power tools running on 230V in the workshop

Use case 03

110V Circuit at Home

A fixed 110V circuit for US devices at home

Frequently asked questions

Does the WTI 8000 need a separate soft-start?

Yes. The WTI 8000 has no built-in soft-start; the Bronson CL series limits inrush current.

At switch-on the 8 kW toroidal draws high current briefly. The separate soft-start keeps the upstream breaker from tripping.

Does the WTI 8000 suit a 32 A upstream circuit?

Yes. The WTI 8000 is designed for a 32 A upstream circuit on the 230V side.

Its built-in breaker is 32 A at 230V and 63 A at 110V. The WTI 10000, by contrast, would need 40 A.

Can I run several heavy power tools on the WTI 8000 at once?

Yes. As long as the total stays under 6400 watts continuous, the WTI 8000 powers several heavy US tools at once.

Each outlet is limited to 1650 W (110V) or 3450 W (230V); limit large-motor inrush with the CL series.

Is the WTI 8000 hardwired through the screw terminal?

Yes. Input and output have screw terminals for permanent wiring into the installation.

Schuko, UK and US sockets are also provided. The input is not a plug connection.

Our technology.

6400 W Continuous, Stated Separately

The WTI 8000 states 8000 W maximum and 6400 W continuous (>15 min) separately — the continuous figure is not derived from a peak. You size plant load straight against 6400 W, with no headroom to subtract from a short-term peak.

Resettable Circuit Breaker, 63/32 A

The WTI 8000 has an integrated circuit breaker rated 63 A at 110 V and 32 A at 230 V. On overload it trips and resets after the fault — no fuse to change, and it matches a 32 A upstream circuit.

	WTI 3000 3000W	WTI 5000 5000W	WTI 6000 6000W	WTI 8000 8000W	WTI 10000 10000W
Continuous power	2400W	4000W	4800W	6400W	8000W
Input voltage	100–120V or 200–240V AC
Output voltage	100–120V & 200–240V AC (half or double the input)
Input connection	Screw terminal
Output sockets	US Type B (110V) · Schuko F (230V) · UK Type G (230V) · Screw terminal
Overcurrent protection	Breaker 16A/25A	Breaker 20A/40A	Breaker 25A/50A	Breaker 32A/63A	Breaker 40A / 2×40A
Per-socket protection	Breaker 15A — max 3450W/socket (230V), 1650W/socket (110V)
Soft start	230V only	230V only	—	—	—
Galvanic isolation	No (step-up/step-down converter)
Overheat protection	Automatic shutdown above 130 °C core temperature
Efficiency	98% · Toroidal core · Pure sine wave
Dimensions (H×L×W cm)	15.7×31.2×27.2	15.7×31.2×27.2	15.7×33.8×29.2	15.7×33.8×29.2	15.7×33.8×29.2
Weight	11.6 kg	14.0 kg	17.9 kg	20.2 kg	22.4 kg
