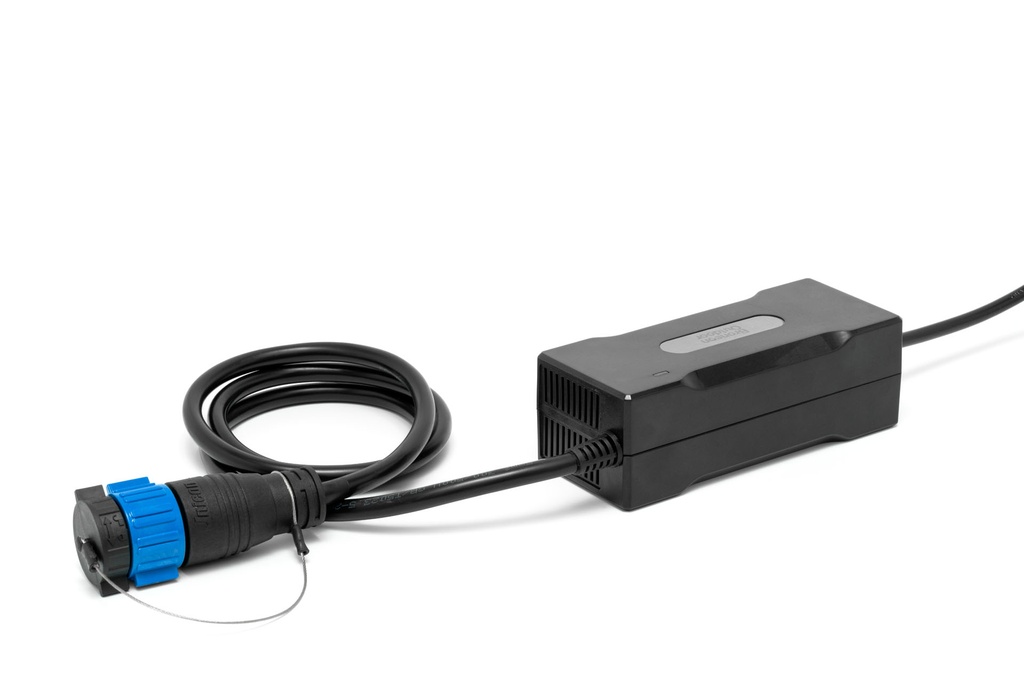

Battery Charger - LCL 12S - (12V 5Amp Lithium LFP)

Battery Charger - LCL 12S - (12V 5Amp Lithium LFP)

The LCL optimally charges LiFePO4 batteries by using a cutting-edge PWM control chip. The charger maintains a constant current level and cuts off as soon as the battery is fully charged.


  • Charging current: 5A

  • Charging voltage: 14.6V DC

  • Input voltage: 100V - 240V AC

  • Suitable for MBL36, MBL60 and MBL100

  • Steckertyp
  • Zustand
29,93 € 35,62 €

zzgl. Versand
Versand: 10-20 Geschäftstage
30-Tage-Geld-zurück-Garantie

In den Warenkorb Jetzt kaufen
In den Warenkorb Jetzt kaufen
Menge:
Out of Stock
We'll notify you once the product is back in stock
Specification
Charging Current 5A
Charging Voltage 14.6V DC
Input Voltage 100V - 240V AC
Input Current 1.5A
Input Frequency 47 - 63 Hz
Input Connection EU: Schuko Type F
UK: British Type G
LED Light Red: charging
Green: fully charged
Operating Temperature -10 ºC to +50 ºC
Product Dimensions (L x W x H) 4.6 x 15.5 x 5.7 cm
Weight 0.42 kg
Product Dimensions Shematic
Specification lcl-12s
Battery Charger - LCL 12S - (12V 5Amp Lithium LFP)		 lcl-12m
Battery Charger - LCL 12M (12V 10Amp Lithium LFP)		 lcl-12l
Battery Charger - LCL 12L - (12V 20Amp Lithium LFP)		 lcl-12x
Battery Charger - LCL 12X (12V 40Amp Lithium LFP)		 lcl-24x
Battery Charger - LCL 24X - (24V 20Amp Lithium LFP)
Charging Current 5A 10A 20A 40A 20A
Charging Voltage 14.6V DC 14.6V DC 14.6V DC 14.6V DC 29.2V DC
Input Voltage 100V - 240V AC 100V - 240V AC 100V - 240V AC 100V - 240V AC 100V - 240V AC
Input Current 1.5A 1.5A 1.5A 1.5A 1.5A
Input Frequency 47 - 63 Hz 47 - 63 Hz 47 - 63 Hz 47 - 63 Hz 47 - 63 Hz
Input Connection EU: Schuko Type F
UK: British Type G		 EU: Schuko Type F
UK: British Type G		 EU: Schuko Type F
UK: British Type G		 EU: Schuko Type F
UK: British Type G		 Schuko Type F
LED Light Red: charging
Green: fully charged		 Red: charging
Green: fully charged		 Red: charging
Green: fully charged		 Red: charging
Green: fully charged		 Red: charging
Green: fully charged
Operating Temperature -10 ºC to +50 ºC -10 ºC to +50 ºC -10 ºC to +50 ºC -10 ºC to +50 ºC -10 ºC to +50 ºC
Product Dimensions (L x W x H) 4.6 x 15.5 x 5.7 cm 5.3 x 15.6 x 8.6 cm 5.7 x 20.8 x 12.5 cm 9.7 x 20.8 x 12.5 cm 9.7 x 20.8 x 12.5 cm
Weight 0.42 kg 0.66 kg 1.08 kg 1.92 kg 1.92 kg
