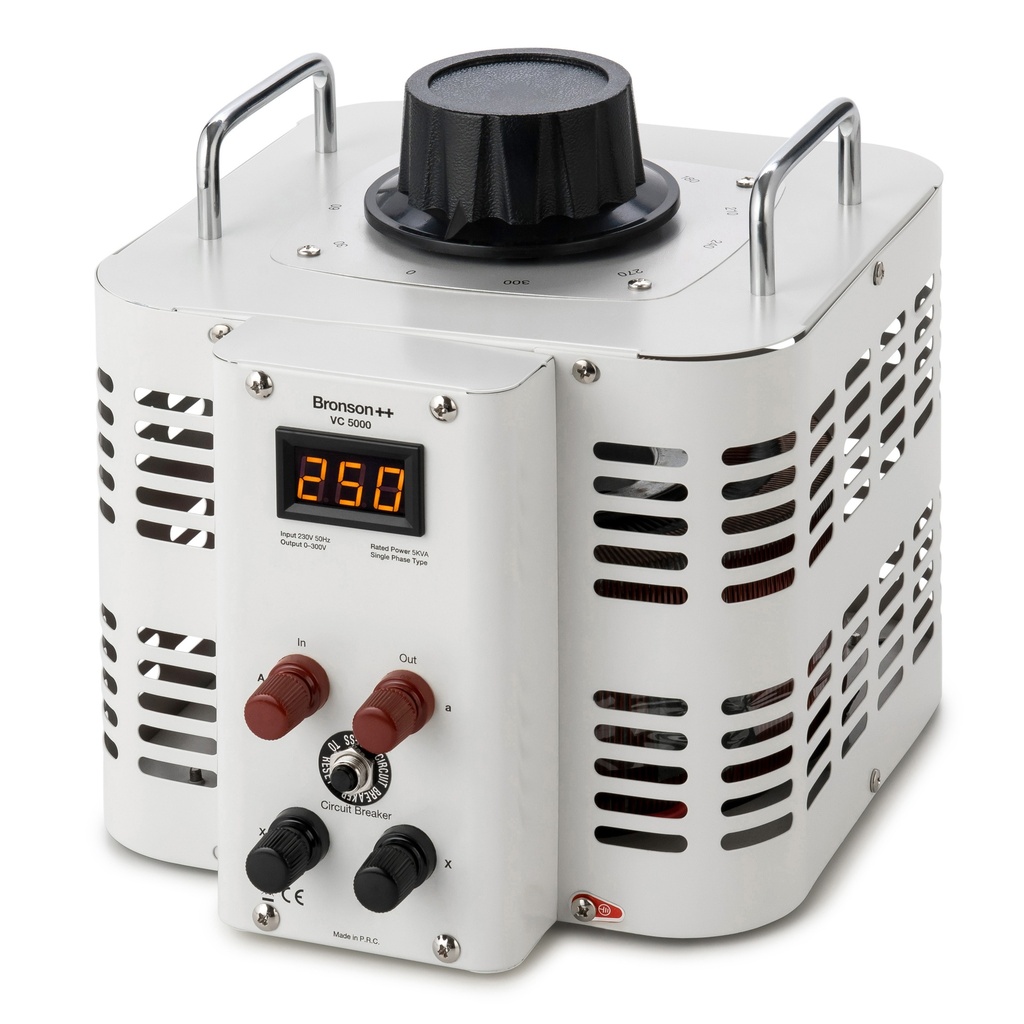

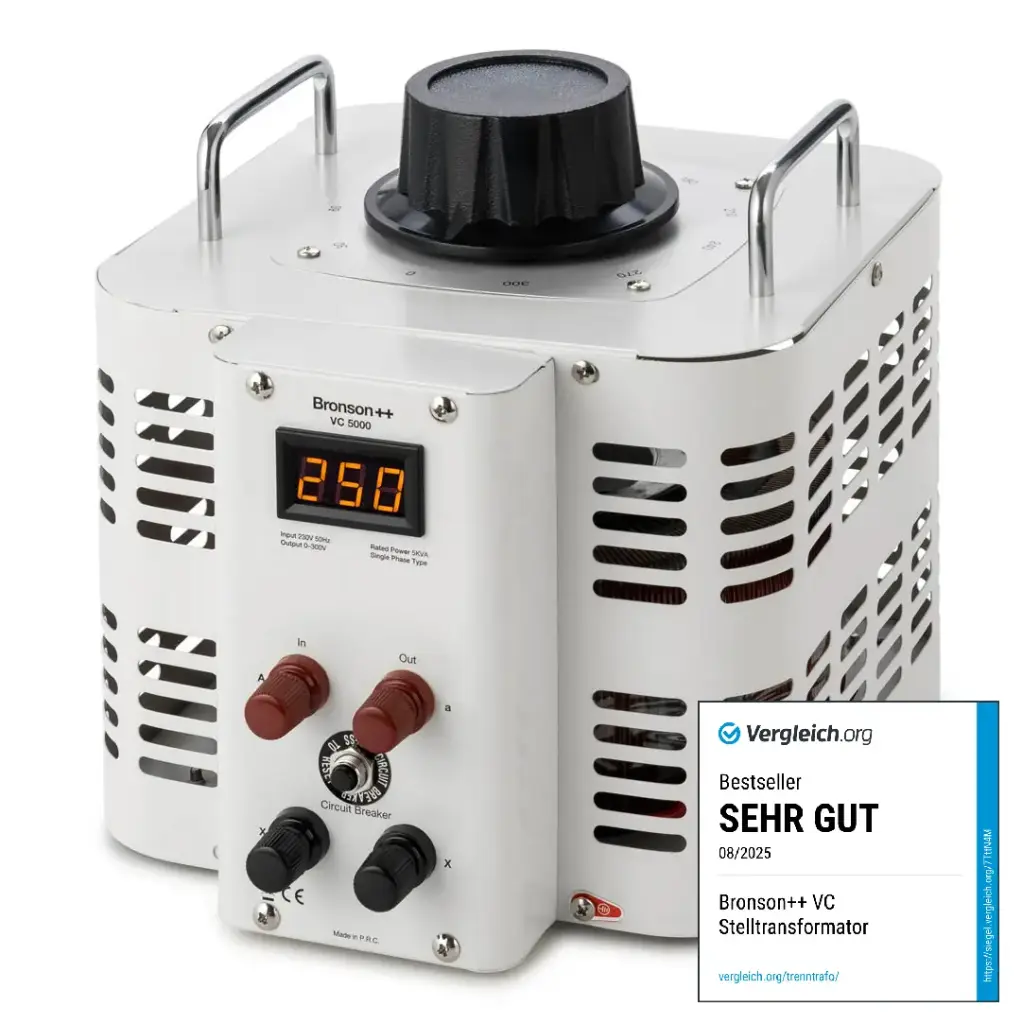

Bronson VC 5000

(0 review)

The Bronson VC 5000 is an industrial high-load variable transformer (Variac) for fixed test stations — built for hardwired integration via terminals and continuous load monitoring.

  • Max. 5000W / 20A — suited for high-draw loads in continuous testing

  • 0–300V adjustable output — reproducible voltage profiles for load simulation and commissioning

  • Terminal output (up to 20A) — designed for permanent wiring in rigs, fixtures and panels

  • Built-in voltmeter — accurate control of the output voltage

  • Ideal for — industrial test benches, end-of-line testing, heating elements/load banks, fixed workshop stations


  • Condition
268.06 € 319.00 €

🚚 Excl. Shipping
⏱️ Shipping: 10-20 Business days
🛡️ 30-Day Money-Back Guarantee

Add to cart Buy now
Add to cart Buy now
Quantity:
Specification
Maximum Power 5000W
Maximum Current 20A
Input Voltage 220 - 240V AC
Input Connection Screw Terminal
Output Voltage 0 - 300V AC
Output Connection Screw Terminal
Efficiency ≥ 90%
Phase Single phase
Display Will light up when current is detected and indicate the output voltage with high accuracy
Soft Start No
Galvanic Isolation No
Overcurrent Protection Circuit breaker 20A, 230V
Short Circuit Protection No
Overheat Protection No
Frequency 50/60 Hz
Product Dimensions (H x L x W) 18.5 x 27.7 x 23.7 cm
Weight 17.5 kg
Product Dimensions Shematic
Specification vc-1000
Bronson VC 1000		 vc-3000
Bronson VC 3000
Maximum Power 1000W 3000W
Maximum Current 4A 12A
Input Voltage 220 - 240V AC 220 - 240V AC
Input Connection Schuko Type F Schuko Type F
Output Voltage 0 - 300V AC 0 - 300V AC
Output Connection Schuko Type F, Screw Terminal Schuko Type F, Screw Terminal
Efficiency ≥ 90% ≥ 90%
Phase Single phase Single phase
Display Will light up when current is detected and indicate the output voltage with high accuracy Will light up when current is detected and indicate the output voltage with high accuracy
Soft Start No No
Galvanic Isolation No No
Overcurrent Protection Circuit breaker 4A, 230V Circuit breaker: 12A, 230V
Short Circuit Protection No No
Overheat Protection No No
Frequency 50/60 Hz 50/60 Hz
Product Dimensions (H x L x W) 12.8 x 22.3 x 17.3 cm 16.0 x 22.3 x 17.3 cm
Weight 6.3 kg 9.3 kg
