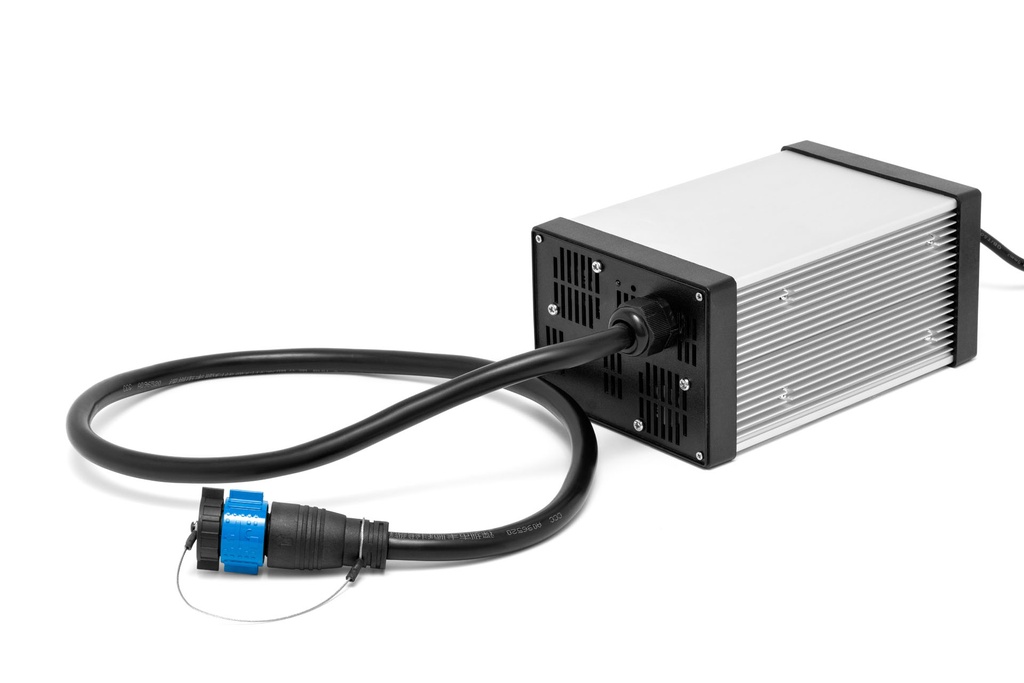

Battery Charger - LCL 24X - (24V 20Amp Lithium LFP)

LiFePO4 24V - (29.2V)
20 Amp

The LCL optimally charges LiFePO4 batteries by using a cutting-edge PWM control chip. The charger maintains a constant current level and cuts off as soon as the battery is fully charged.

Charging current: 20A
Charging voltage: 29.2V DC
Input voltage: 100V - 240V AC
Suitable for MBL8100

254,01 € 254.01000000000002 EUR 254,01 €

254,01 лв

Zustand
- NEU
- GEBRAUCHT

Diese Kombination existiert nicht.

In den Warenkorb Jetzt kaufen

Website List

Geschäftsbedingungen
30-Tage-Geld-zurück-Garantie
Versand: 2-3 Geschäftstage

Specification
Charging Current	20A
Charging Voltage	29.2V DC
Input Voltage	100V - 240V AC
Input Current	1.5A
Input Frequency	47 - 63 Hz
Input Connection	Schuko Type F
LED Light	Red: charging Green: fully charged
Operating Temperature	-10 ºC to +50 ºC
Product Dimensions (L x W x H)	9.7 x 20.8 x 12.5 cm
Weight	1.92 kg

Specification	Battery Charger - LCL 12S - (12V 5Amp Lithium LFP)	Battery Charger - LCL 12M (12V 10Amp Lithium LFP)	Battery Charger - LCL 12L - (12V 20Amp Lithium LFP)	Battery Charger - LCL 12X (12V 40Amp Lithium LFP)	Battery Charger - LCL 24X - (24V 20Amp Lithium LFP)
Charging Current	5A	10A	20A	40A	20A
Charging Voltage	14.6V DC	14.6V DC	14.6V DC	14.6V DC	29.2V DC
Input Voltage	100V - 240V AC	100V - 240V AC	100V - 240V AC	100V - 240V AC	100V - 240V AC
Input Current	1.5A	1.5A	1.5A	1.5A	1.5A
Input Frequency	47 - 63 Hz	47 - 63 Hz	47 - 63 Hz	47 - 63 Hz	47 - 63 Hz
Input Connection	EU: Schuko Type F UK: British Type G	EU: Schuko Type F UK: British Type G	EU: Schuko Type F UK: British Type G	EU: Schuko Type F UK: British Type G	Schuko Type F
LED Light	Red: charging Green: fully charged	Red: charging Green: fully charged	Red: charging Green: fully charged	Red: charging Green: fully charged	Red: charging Green: fully charged
Operating Temperature	-10 ºC to +50 ºC	-10 ºC to +50 ºC	-10 ºC to +50 ºC	-10 ºC to +50 ºC	-10 ºC to +50 ºC
Product Dimensions (L x W x H)	4.6 x 15.5 x 5.7 cm	5.3 x 15.6 x 8.6 cm	5.7 x 20.8 x 12.5 cm	9.7 x 20.8 x 12.5 cm	9.7 x 20.8 x 12.5 cm
Weight	0.42 kg	0.66 kg	1.08 kg	1.92 kg	1.92 kg
