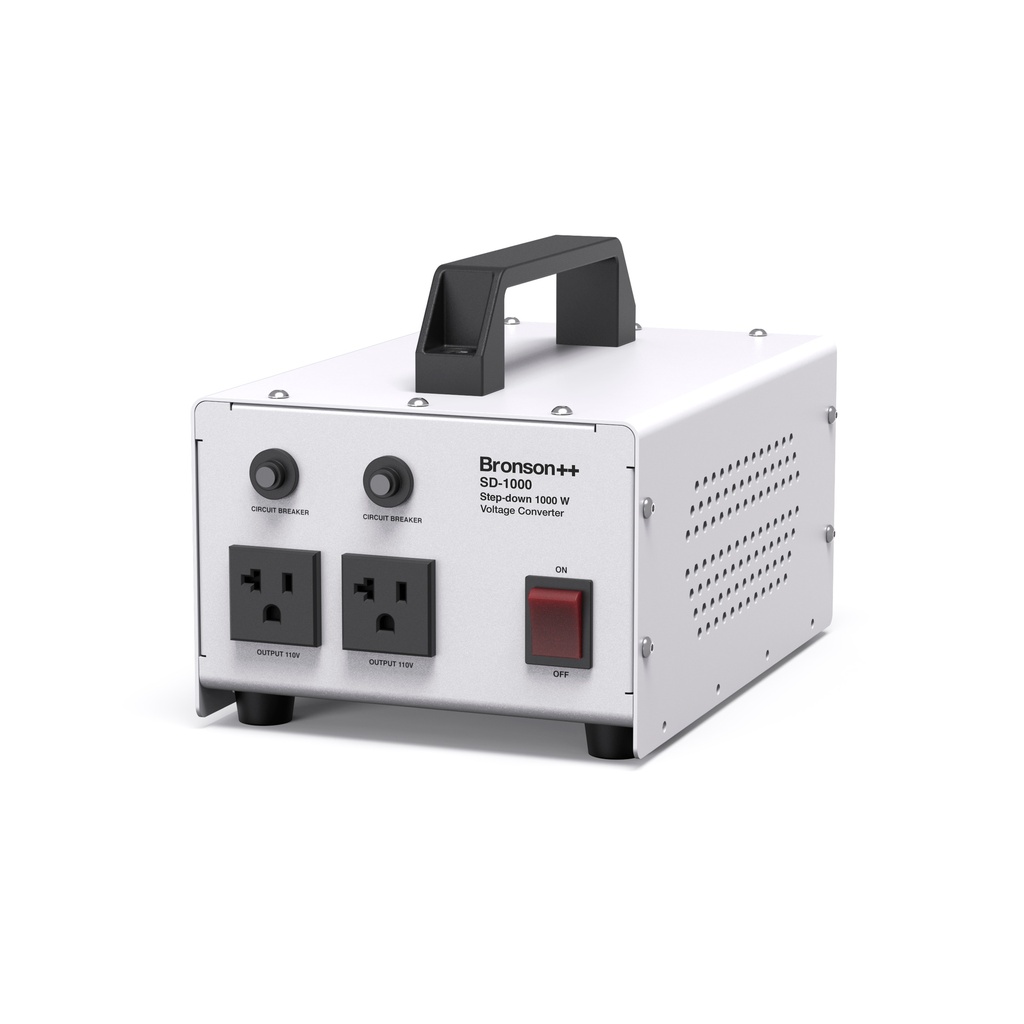

Bronson SD 1000

(0 review)

The SD-1000 Autotransformer combines efficiency with rugged design, its made to be used in harsh environments such as workshops or industrial applications.

  • Plug Type
  • Condition
100.00 € 119.00 €

Add to cart Buy now
Add to cart Buy now

🚚 Excl. Shipping € Shipping in Free shipping in DE
⏱️ Shipping: 10-20 Business days
🛡️ 30-Day Money-Back Guarantee

Specification
Maximum Power 3000W
Continuous Power 2400W (when operating longer than 15 min)
Input Voltage 200 - 240V AC
Input Connection IEC cord with Schuko Type F plug
IEC cord with British Type G plug
Output Voltage 100 - 120V AC (corresponds to half the input voltage)
Output Connection 4x American Type B
Transformer Type Toroidal core
Efficiency 98 %
Phase Single phase
Wave form Sine wave, no distortion
Display Green LED to indicate "Power on"
Soft Start Yes
Galvanic Isolation No
Overcurrent Protection Air switch: 16A, 230V
Short Circuit Protection 15A, 110V (max. power per socket 1650W)
Overheat Protection No
Frequency 50/60 Hz
Product Dimensions (H x L x W) 16.6 x 28.5 x 22.0 cm
Weight 10.6 kg
Specification Bronson SD 750
Bronson SD 750 		 Bronson SD 1000
Bronson SD 1000 		Bronson SD 1600
Bronson SD 1600
Maximum Power 1000W 1200W 2000W
Continuous Power 750W (when operating longer than 15 min) 1000W (when operating longer than 15 min) 1600W (when operating longer than 15 min)
Input Voltage 200 - 240V AC 200 - 240V AC 200 - 240V AC
Input Connection IEC cord with Schuko Type F plug
IEC cord with British Type G plug		 IEC cord with Schuko Type F plug
IEC cord with British Type G plug		 IEC cord with Schuko Type F plug
IEC cord with British Type G plug
Output Voltage 100 - 120V AC (corresponds to half the input voltage) 100 - 120V AC (corresponds to half the input voltage) 100 - 120V AC (corresponds to half the input voltage)
Output Connection 2x US Type B Socket
 2x US Type B Socket
 2x US Type B Socket
Transformer Type Toroidal Core Toroidal Core
 Toroidal Core
Efficiency 98%
98%
98%
Phase single phase single phase single phase
Wave form Sine wave, no distortion
Sine wave, no distortion
Sine wave, no distortion
Display Red LED to indicate "Power on"
Red LED to indicate "Power on"
Red LED to indicate "Power on"
Soft Start Not needed due to low inrush & torodial design. Not needed due to low inrush & torodial design.
 Not needed due to low inrush & torodial design.
Galvanic Isolation No No No
Overcurrent Protection Circuit breaker: 15A, 110V (max. power per socket 1650W)
Circuit breaker: 15A, 110V (max. power per socket 1650W)
 Circuit breaker: 15A, 110V (max. power per socket 1650W)
Short Circuit Protection
Circuit breaker: 4A, 230V
 Circuit breaker: 5A, 230V
 Circuit breaker: 8A, 230V
Overheat Protection
Yes Yes Yes
Frequency
50/60 Hz
50/60 Hz
50/60 Hz
Product Dimensions (H x L x W)
18.0 x 28.0 x 13.0 cm
 18.0 x 28.0 x 13.0 cm 18.0 x 28.0 x 13.0 cm
Weight 6.3kg 7.4kg 8.8kg
