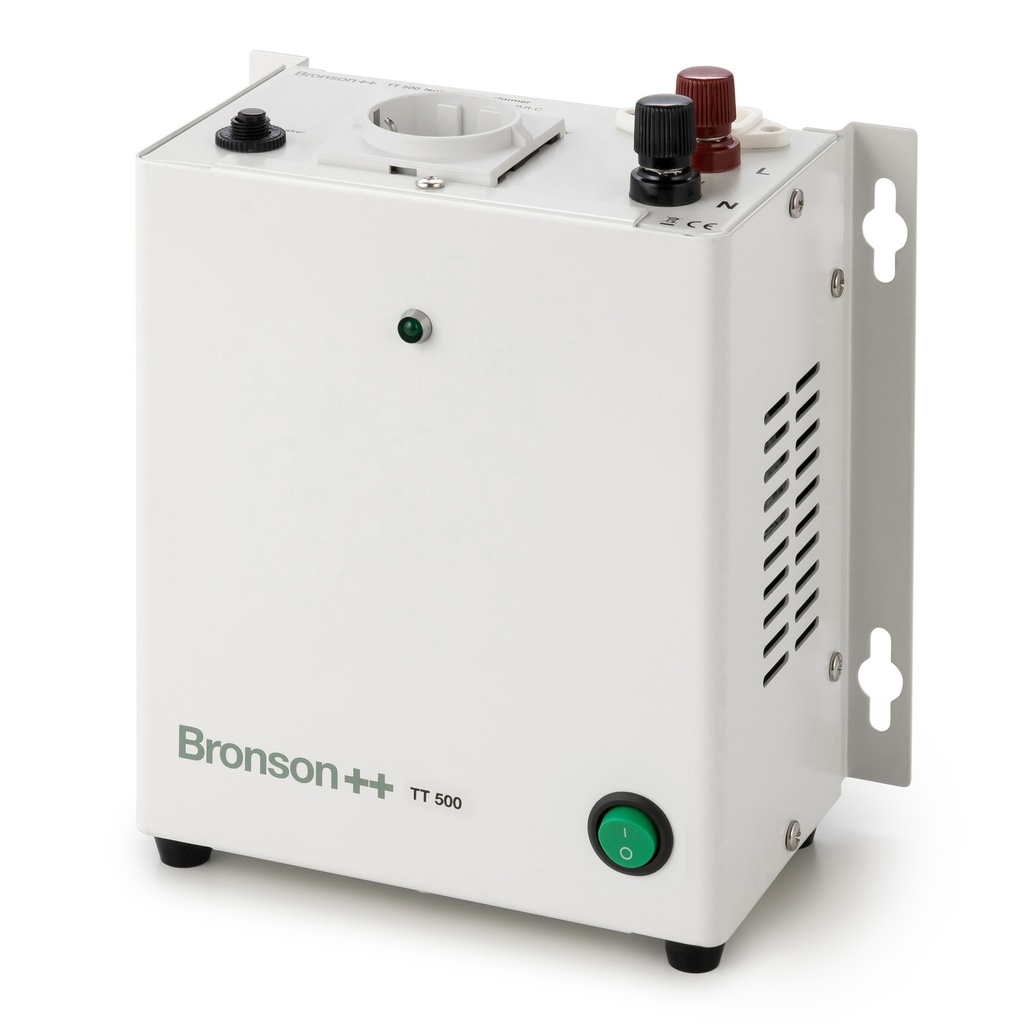

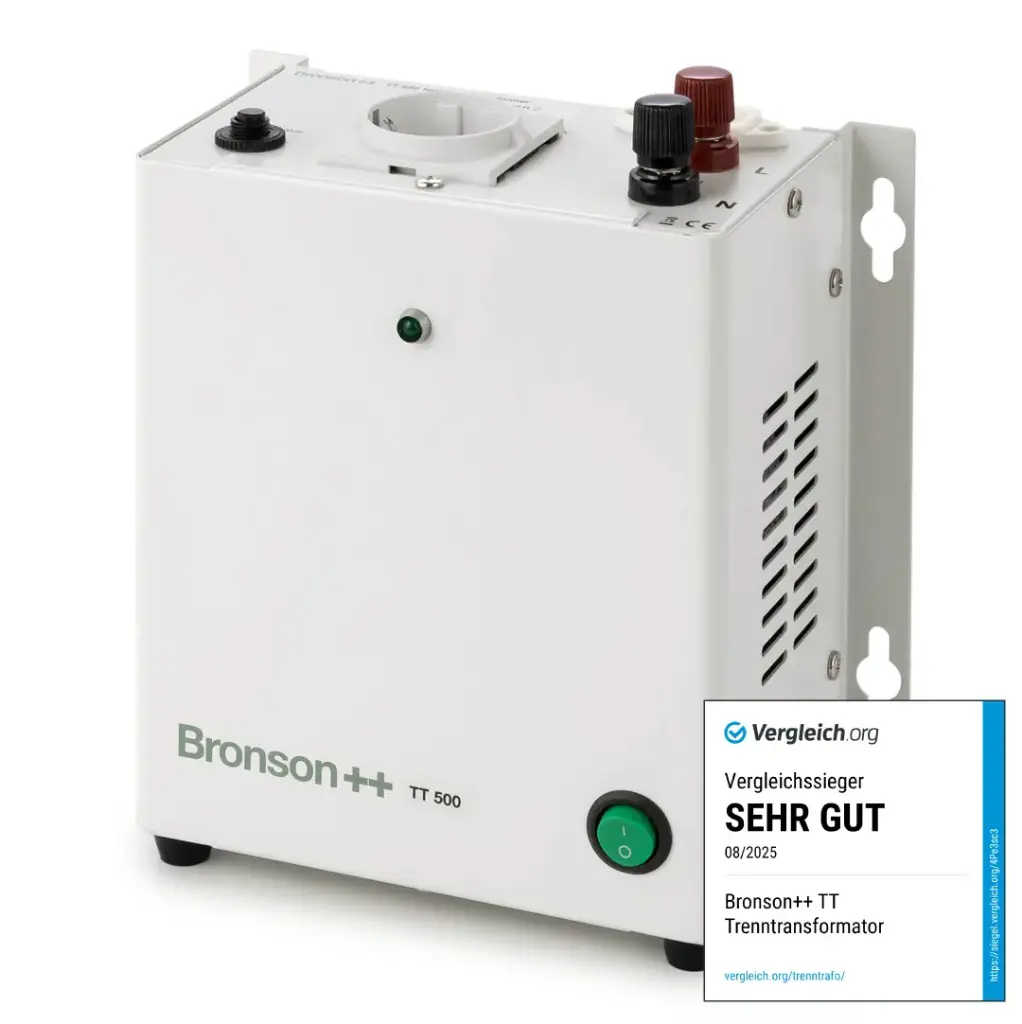

Bronson TT 500

(0 review)

The Bronson TT creates a 230V AC output circuit isolated from the 230V AC power supply input with:


  • Max. capacity: 500W

  • Continuous capacity: 400W (when operating longer than 15 min.)

  • Input: 230V (Plug: Schuko Type F)

  • Output: 230V (Socket: Schuko Type F)

  • Transmission efficiency: 98%

  • Plug Type
  • Condition
100.00 € 119.00 €

Add to cart Buy now
Add to cart Buy now

🚚 Excl. Shipping € Shipping in Free shipping in DE
⏱️ Shipping: 10-20 Business days
🛡️ 30-Day Money-Back Guarantee

Specification
Maximum Power 500W
Continuous Power 400W (when operating longer than 15 min)
Input Voltage 200 - 240V AC
Input Connection IEC cord with Schuko Type F plug
Output Voltage 200 - 240V AC (corresponds to input voltage)
Output Connection Schuko Type F socket
Transformer Type Toroidal core
Efficiency 98%
Phase Single phase
Wave form Sine wave, no distortion
Display Green LED to indicate "Power on"
Soft Start No
Galvanic Isolation Yes
Overcurrent Protection Air switch: 6A, 230V
Short Circuit Protection Circuit breaker: 3A, 230V
Overheat Protection No
Frequency 50/60 Hz
Product Dimensions (H x L x W) 10.0 x 20.6 x 19.2 cm
Weight 4.7 kg
Product Dimensions Shematic
Specification tt-500
Bronson TT 500		 tt-1000
Bronson TT 1000		 tt-3000
Bronson TT 3000		 tt5000
Bronson TT 5000		 tt-8000
Bronson TT 8000
Maximum Power 500W 1000W 3000W 5000W 8000W
Continuous Power 400W (when operating longer than 15 min) 800W (when operating longer than 15 min) 2400W (when operating longer than 15 min) 4000W (when operating longer than 15 min) 6400W (when operating longer than 15 min)
Input Voltage 200 - 240V AC 200 - 240V AC 200 - 240V AC 200 - 240V AC 200 - 240V AC
Input Connection IEC cord with Schuko Type F plug IEC cord with Schuko Type F plug Screw Terminal Screw Terminal Screw Terminal
Output Voltage 200 - 240V AC (corresponds to input voltage) 200 - 240V AC (corresponds to input voltage) 200 - 240V AC (corresponds to input voltage) 200 - 240V AC (corresponds to input voltage) 200 - 240V AC (corresponds to input voltage)
Output Connection Schuko Type F socket Schuko Type F socket - Schuko Type F
- British Type G
- Screw Terminal		 - Schuko Type F
- British Type G
- Screw Terminal		 - Schuko Type F
- British Type G
- Screw Terminal
Transformer Type Toroidal core Toroidal core Toroidal core Toroidal core Toroidal core
Efficiency 98% 98% 98% 98% 98%
Phase Single phase Single phase Single phase Single phase Single phase
Wave form Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion Sine wave, no distortion
Display Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on" Green LED to indicate "Power on"
Soft Start No No No No No
Galvanic Isolation Yes Yes Yes Yes Yes
Overheat Protection Air switch: 3A, 230V Air switch: 4A, 230V Air switch: 12A, 230V Air switch: 25A, 230V Air switch: 32A, 230V
Short Circuit Protection No No No Circuit breaker: 15A, 230V (max. power per socket 3450W) Circuit breaker: 15A, 230V (max. power per socket 3450W)
Overheat Protection Yes Yes Yes Yes Yes
Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Product Dimensions (H x L x W) 10.0 x 20.6 x 19.2 cm 12.4 x 22.6 x 21.7 cm 14.9 x 26.8 x 25.7 cm 16.7 x 31.0 x 31.2 cm 16.7 x 36.2 x 35.0 cm
Weight 4.7 kg 7.7 kg 14.5 kg 21.6 kg 30.6 kg
