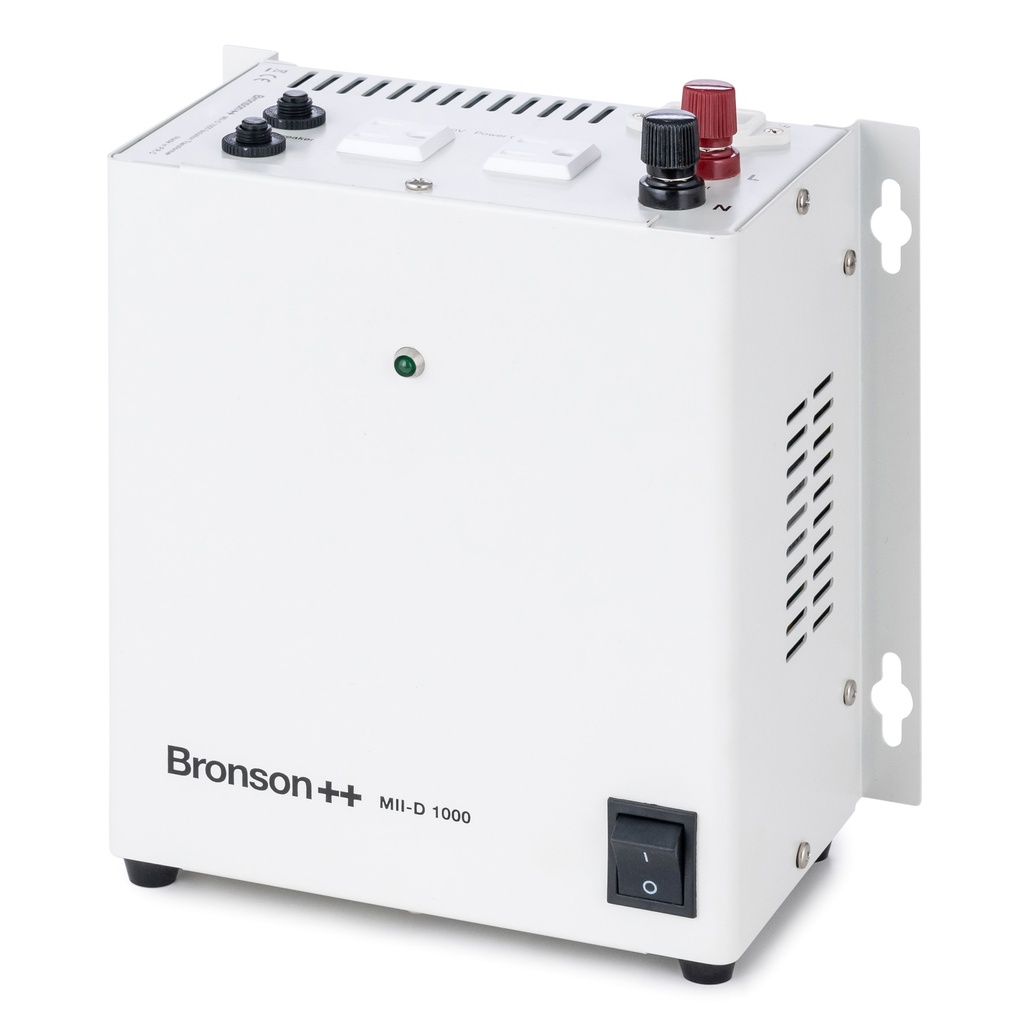

Bronson MII-D 1000

(0 review)

The Bronson MII-D creates a 110V AC output circuit isolated from both 110V and 230V AC power supply inputs with:


  • Max. capacity: 1000W

  • Continuous capacity: 800W (when operating longer than 15 min.)

  • Input: 110V or 230V (Plug: EU and UK)

  • Output: 110V (Sockets: American Type B)

  • Transmission efficiency: 98%

  • Condition
140.33 € 167.00 €

Add to cart Buy now
Add to cart Buy now

🚚 Excl. Shipping € Shipping in Free shipping in DE
⏱️ Shipping: 10-20 Business days
🛡️ 30-Day Money-Back Guarantee

Specification
Maximum Power 1000W
Continuous Power 800W (when operating longer than 15 min)
Input Voltage 100 - 120V AC or 200 - 240V AC
Input Connection Screw Terminal
Output Voltage 100 - 120V AC (corresponds to input voltage or half the input voltage)
Output Connection - 2x American Type B
- Screw Terminal
Transformer Type Toroidal core
Efficiency 98 %
Phase Single phase
Wave form Sine wave, no distortion
Display Green LED to indicate "Power on"
Soft Start Yes
Galvanic Isolation Yes
Overcurrent Protection Air switch: 16A, 230V
Short Circuit Protection Circuit breaker: 4A, 230V
Overheat Protection No
Frequency 50/60 Hz
Product Dimensions (H x L x W) 12.4 x 22.6 x 21.7 cm
Weight 7.5 kg
Product Dimensions Shematic
Specification mii-d-1000
Bronson MII-D 1000 		mii-d-4500
Bronson MII-D 4500
Maximum Power 1000W 4500W
Continuous Power 800W (when operating longer than 15 min) 3600W (when operating longer than 15 min)
Input Voltage 100 - 120V AC or 200 - 240V AC 100 - 120V AC or 200 - 240V AC
Input Connection Screw Terminal Screw Terminal
Output Voltage 100 - 120V AC (corresponds to input voltage or half the input voltage) 100 - 120V AC (corresponds to input voltage or half the input voltage)
Output Connection 2x American Type B
Screw Terminal		 3x American Type B
Screw Terminal
Transformer Type Toroidal core Toroidal core
Efficiency 98 % 98 %
Phase Single phase Single phase
Wave form Sine wave, no distortion Sine wave, no distortion
Display Green LED to indicate "Power on" Green LED to indicate "Power on"
Soft Start ✔ ✘
Galvanic Isolation ✔ ✔
Overcurrent Protection Circuit breaker 4A for 230V,8A for 110V Circuit breaker 15A for 230V,32A for 110V
Short Circuit Protection ✘ Circuit breaker: 15A, 110V (max. power per socket 1650W)
Overheat Protection ✘ Fan for cooling the core when overheating
Frequency 50/60 Hz 50/60 Hz
Product Dimensions (H x L x W) 12.4 x 22.6 x 21.7 cm 16.7 x 31.2 x 31.0 cm
Weight 7.5 kg 21.3 kg
